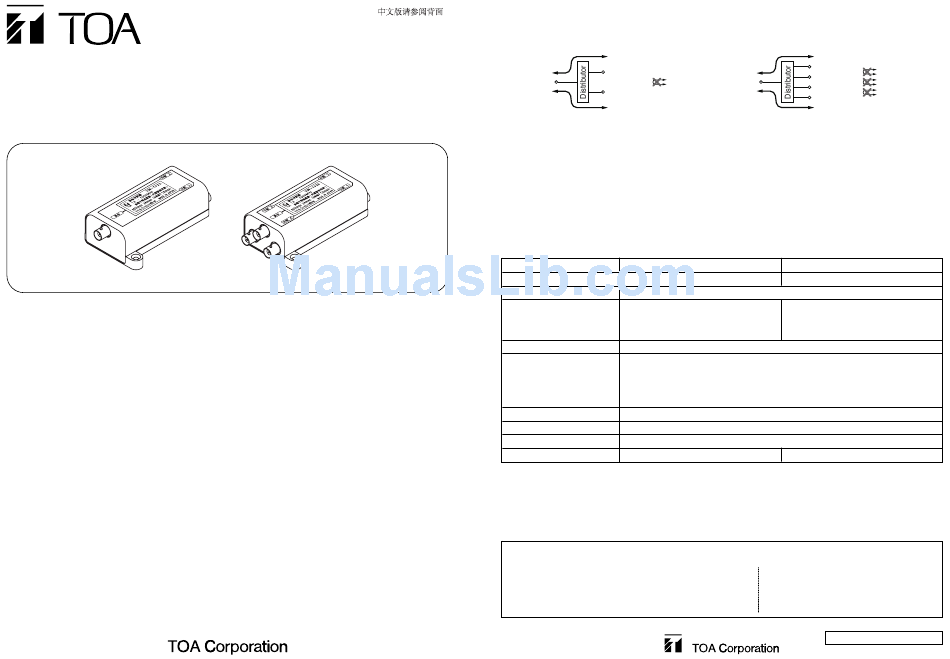

Toa YW-1022 Instruction Manual

DISTRIBUTORS
YW-1022
Thank you for purchasing TOA's Distributors.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. FEATURES

• YW-1022 for 2-branch distribution and YW-1024 for 4-branch distribution
• Usable frequency range of 1.6 to 10,000 MHz
• Power passing type (changeable to Power off type) for easy power supply
• BNC connectors

2. HANDLING PRECAUTIONS

• Do not install the units in locations exposed to rain such as outdoors or under the eaves.
• Use 75 Ω coaxial cable.
Note: In a wireless microphone/tuner system, use a low loss type of 5C-FB or 7C-FB.
• Ensure coaxial cable end preparation, and the cable's BNC plug connection to the unit's
connector.
Incomplete work increases the unit's loss, causing malfunction in the system.
• Prepare BNC plugs locally.

INSTRUCTION MANUAL

YW-1022
YW-1024
YW-1024

3. CONNECTIONS

[YW-1022]
Loss of 4.5dB
Distribution 1
Mixing Impossible
Distribution 2
Loss of 4.5dB
Note
To avoid an increase in loss, do not perform connections between distribution terminals.
Tip
To change the unit into the power off type from the power passing type, cut the jumper wire on the
internal circuit board.
For the detailed method, contact your TOA dealer.

5. SPECIFICATIONS

Model No. YW-1022
Number of I/O terminals 1 Mixing / 2 Distribution
Frequency Range
Distribution Loss 4.5 dB ±3 dB
(between the Mixing and each
Distribution terminal)
Input/Output Impedance
Coaxial Connector Mixing terminal:
Distribution terminals: BNC jack, power passing type (under 30 V DC,
Operating Temperature
Finish
Dimensions
Weight
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
Wood screw 4.1 x 25 (for fixing the unit) .......... 2
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
[YW-1024]
Loss of 8.5dB
Distribution 1
Distribution 2
Mixing
Distribution 3
Distribution 4
Loss of 8.5dB
YW-1024
1 Mixing / 4 Distribution
1.6 – 1,000 MHz (excluding 50 – 70 MHz)
8.5 dB ±3 dB
(between the Mixing and each
Distribution terminal)
75 Ω
BNC jack, power passing type (under 30 V DC,
under 2 A)
under 1 A)
–10 to +50°C
ABS resin, gray
75 (w) x 122 (h) x 34 (d) mm
105 g 120 g
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
URL: http://www.toa.jp/
Impossible
Impossible
Impossible
133-07-283-90
