OPERATING INSTRUCTIONS
• Slim Line Thermometer
• Ultra-Durable Stainless Steel Elements
• On/Off Switch that Electrically Isolates the Unit from Mains Power
These instructions cover the models of ROBAND
Although there are slight variances between models, the installation, operation, care
and maintenance procedure is the same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD

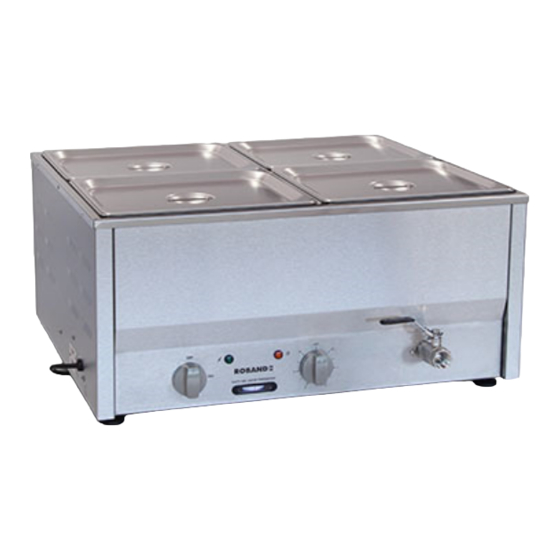

BAIN MARIE
BM1 Version 3, BM21 Version 2
BM2, BM4 Version 5
Includes
International models:
Alternate Plate Models:
Special Features:
Models:
-Gxx
-Fxx
-Mxx
-T
®
Bain Maries listed above.
30/08/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND BM1 Version 3
Summary of Contents for ROBAND BM1 Version 3
- Page 1 Manufactured By ROBAND AUSTRALIA PTY LTD OPERATING INSTRUCTIONS BAIN MARIE Models: BM1 Version 3, BM21 Version 2 BM2, BM4 Version 5 Includes -Gxx International models: -Fxx -Mxx Alternate Plate Models: Special Features: • Slim Line Thermometer • Ultra-Durable Stainless Steel Elements •...
- Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION - GENERAL ..................3 OPERATION - MODELS WITH THERMOSTAT CONTROL ........4 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... -
Page 4: Introduction
Bain Marie, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these Bain Maries should include: 1. One Bain Marie (appropriate model) 2. Appropriate number of pans (depending on model ordered) 3. -
Page 6: Installation
INSTALLATION Remove all the packaging materials and tape, as well as any protective plastic from the machine. Clean off any glue residue left over from the protective plastic using methylated spirit or white oil. Place the Bain Marie on a firm, level surface in the required position. Adjust the feet if necessary to level the unit if the surface is slightly uneven. -
Page 7: Operation - Models With Thermostat Control
operating position of around 2 to 2½ should suffice, but experience will dictate the best position for the particular food being displayed. Please note: Care should be taken while operating dry not to leave the energy regulator on HIGH for extended periods. The build-up of excessive heat may damage the thermometer and significantly overheat the food contents in the pans. - Page 8 WET OPERATION (MODELS BM1T, BM2T, BM21T & BM4T) An operating setting of 75-80 ° C should suffice and, whilst this type of operating results in a longer heat-up time, running costs will be lower and heating will be more even after the Bain Marie has reached operating temperature.. Page: 5...
-
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE IMPORTANT: When using wet, Daily cleaning is required to avoid deposits building up which can cause corrosion. Never use caustic or abrasive cleaning chemicals or cleaning pads which can cause damage to the stainless steel. Attention to regular care and maintenance will ensure long and trouble free operation of your Bain Marie. -
Page 11: Troubleshooting
TROUBLESHOOTING If the Bain Marie does not heat up check the following points before calling for service. The Bain Marie is plugged in correctly and the power is switched on. The ON/OFF knob is in the “on” position. The power point is not faulty. The energy regulator / thermostat are in the correct relative position. -
Page 12: Circuit Diagrams
CIRCUIT DIAGRAMS MODELS: BM1, BM2, BM21 & BM4 NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment. Page: 9... - Page 13 MODEL: BM1T, BM2T, BM21T & BM4T TS - Thermostat NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment. Page: 10...
- Page 14 If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 11...
-
Page 15: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... - Page 16 NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 13...
- Page 17 NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 14...
-
Page 18: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
