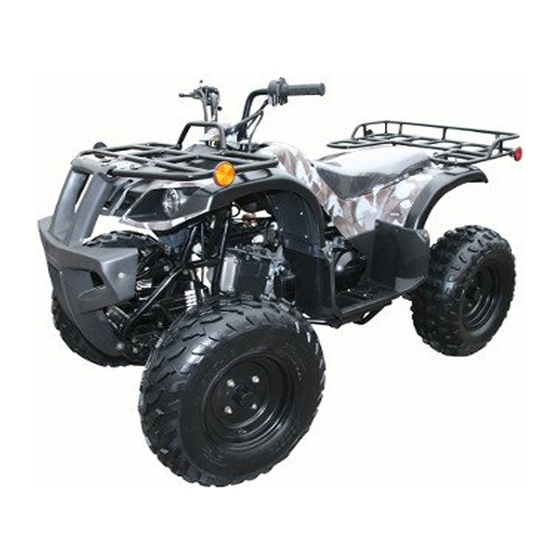

Coolster ATV-3150DX-2 Owner's Manual

150cc
Hide thumbs
Table of Contents

Advertisement

Quick Links

A T V - 3 1 5 0 DX - 2
）
）
1 5 0 C C
w w w . c o o l s t e r . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV-3150DX-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coolster ATV-3150DX-2

Summary of Contents for Coolster ATV-3150DX-2

  • Page 1 A T V - 3 1 5 0 DX - 2 ） ） 1 5 0 C C w w w . c o o l s t e r . c o m...
  • Page 2 WARNING • Warning is signal that lets people know the possible risks and tells people who drive this vehicle to operate by following the right instrustions to avoid accidents. • Operation of this ATV by children un der the age of 16 lncrease of the risk of severe injury ordeath •...

  • Page 3: Table Of Contents

    FOREWORD Table of Contents Thank you choose this all terrain vehicles Pay attention to your security........... The all-terrain vehicle is based on market demand, production Guidelines on safe driving............of a comprehensive survey. We hope that it will bring you Description................

  • Page 4: Guidelines On Safe Driving

    PAY ATTENTENTION TO YOUR SAFETY GUIDELINES ON SAFE DRIVING The non-road vehicle use, and never-in the streets, sidewalks ☆WARNING and motor vehicles driving along. You could be KILLED or SERIOUSLY INJURED if do not follow instruction. Drivers must be over 16 years of age, driving the need for skilled 1, when approaching corners or bends to reduce speed.

  • Page 5: Description

    2 、 Contact with local sales agent, search for training classes (7)Protector nearby, and do some necessary training. You can also watch our COOLSTER ATV Safety Video for more security informations ,please do not drive this ATV until you get some appropriate guidance.
  • Page 6 ATV-Safety Alert The warning signs with the word"WARNING" indicating the existence of the potential risks that may result in serious The Consumer Product Safety Commission has concluded that ALL-TERRAIN injury or death. VEHICLES (ATVs) may present a risk of DEATH or SEVERE INJURY in certain circumstances.

  • Page 7: Atv Recognition

    • NEVER ALLOW A CHILD UNDER 16 YEARS OLD TO OPERATE AN ATV ATV RECOGNITION WITHOUT ADULT SUPERVISION. CHILDREN NEED TO BE OBSERVED CAREFULLY BECAUSE NOT ALL CHILDREN HAVE THE STRENGTH, SIZE, SKILLS OR JUDGEMENT NEEDED TO OPERATE AN ATV SAFELY. •...

  • Page 8: Control Functions...................................................................... P12

    CONTROL FUNTIONS 1、The ignition switch 4、The manner of stage change over this vehicle used to the manner of Location Functions Key state auto-clutch hand shifting D:stands for drive All circuits wre disconnected Pull out N:stands for neutral gear R：stands for reverse gear Circuit was connected,engine starter 5、The front wheel brake handle Not pull out...
  • Page 9 8、The fuel valve 9、 Start The fuel valve in the fuel filter will supply fuel from the fuel tank to the carburetor. Fuel valve has three locations Disconnect: fuel will not flow. When the engine is not running, (1)electric Start, please step on the pedal of rear brake, then always will be back to handle the position.

  • Page 10: Before The Inspction Operation

    BEFORE THE INSPECTION OPERATION DRIVERS MUST Prior to the use of the car, should check the following Fuel: Item Normal checks fuel compartment confirm the adequacy of fuel. Brake nspection operation, status and freedom Warning: itinerary. If necessary,should be adjusted. ●...
  • Page 11 Oil: TIRES Oil confirm whether oil at the designated place. (See left picture) 1. Tire pressure Before the cars in operation, should always check and adjust 1, the maximum oil level. tire pressure. (Tires Barometer) 2, the lowest of oil. （See right picture） 2.

  • Page 12: Important Elements Operationand Rides.................................. P20

    Brake IMPORTANT ELEMENTS OPERATION AND RIDES Running,when there are obstacles in front of Cold Start and engine preheating that(pedestrians, vehicles,goods),in order to brake Note: This car has used to control the security measures must be taken.Divided into braking operation of brake motor starter switch. Only in deceleration braking,parking brake and emergency pinch engine brake handle on when to start.
  • Page 13 Shift and acceleration of engine Note: it is a vehicle with CVT-clutch. 3，500 ~ 1000 km: 1.if you want to move forward ,just take the gear shift lever To avoid refueling over 3 / 4 throttle position. 4，1000 km long and more: forward with a gear.

  • Page 14: Regular Maintenance And Minor Repairs

    ☆ Mechanism should be anchored. adjust or replace filter* Check tire pressure / balance / *: We propose that these items should be COOLSTER repair ☆ ☆ Tire/wheel Wear state / poor place, if station for maintenance services. **: Medium weight wheel necessary, repair or replacement bearing grease.
  • Page 15 Parts / Fasteners 1, the measurement of oil (See left picture) Prior to the use of the car, should always check with A. Engine preheater minutes. the parts and fasteners tight degrees. We suggest that B. When the engine stopped operating, hold on a few minutes later, the oil Cypriots will be removed after the oil-observation.
  • Page 16 Please check before each riding gear box after the oil spill, if there 1. Connect speed is any leakage, to COOLSTER dealer inspection and maintenance. 2. Speed Festival through idle In addition to the regular maintenance in accordance with the screw on the carburetor, idling manual inspection interval after gear lubricants.
  • Page 17 Brown. Do not attempt to self-diagnosis of the dealer or repair shop to adjust any fault, and should be sent to COOLSTER the car dealer or brake shoes. repair shop. You must be regularly removed and examined...
  • Page 18 The drive chain adjustment The drive chain lubrication The chain includes many mutual operation of the parts. If the chain would not carry out proper maintenance, the chain that will soon wear. Therefore, we must carry out regular maintenance of the chain. In this dusty region riding car, the more maintenance is necessary.
  • Page 19 Throttle limited & parking function Note: The battery electrolyte checks at least once a month. Warning: Please use parking button when you are parking,see picture. ● use batteries to be recharged in 30 minutes and cooled to 1、Fasten front brake room temperature to ensure the proper use of batteries.

  • Page 20: P36

    Use a soft cloth or sponge electrical installations. Fusing immediately if the fuse again, dip cleaning liquid bubble gently cleans the outer surface, to please COOLSTER dealer or repair shop contact. avoid residual gravel surface and paint scratches electroplating Warning: layer.
  • Page 21 STORAGE If the park does not need to use a long time, in order to 7) to inflatable tires, tire pressure up to the required maintain a good state of the car, you please address the standard air pressure. After stopping the car will be good, with following methods: shelves or pieces of wood and other wheels will be boosted so 1),select the right parking place.The location should have...

  • Page 22: P40

    ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(1) ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(2) 1、Disassembled packaging belt 2、Take out carton 7、Install plastic pedal 8、Install front protector 3、Disassembled metal frame 4、Pick parts out 9、Install front rack 10、Install front rack 5、Install handle bar and key switch 6、Install plastic pedal...
  • Page 23 ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(3) ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(4) 13、Take out upper-cylinder of rear brake 14、Install rear brake 19、Install front wheel 20、Remove fixed wire 15、Install rear frame 16、Install rear rack 21、Install rear wheel 22、Install rear wheel 17、Install rear rack 18、Install rear brake...
  • Page 24 ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(5) ATV-3150DX-2 INSTALL PROCESS AFTER PACKAGING(6) 25、Link wire 26、Link wire of rear light 31、Install guard plate fixed 32、Install guard plate fixed plate 27、Install seat 28、Install reflector 33、Install guard plate 34、Install guard plate Correspondence tables fastening torque...
  • Page 25 EMISSIONS WARRANTY PARTS LIST Emission Warranty Statement. Fuel metering System Ignition System Exhaust System Emission Control System Carburetor Spark Plug Exhaut Manifold Air Cleaner Housing U.S.A. EPA Emissions Limited Warranty Air Cleaner Housing Cov. This All Terrain Vehicle (ATV) and Off Highway Motorcycle (OFMC) emissions limited warranty is in addition to the Maxtrade standard limited warranty for All Model Yera: 2013 or Later Models Terrain Vehicles.

  • Page 26: P48

    ATV-3150DX-2 Main specs (1) ATV-3150DX-2 Main specs (2) 4.14 Carburator no..........PD25 Ⅰ、NO：ATV-3150DX-2 4.15 Spark plug no..........D7TC Ⅱ、The main specs of size： 1870×1010×1060mm 4.16 Spark plug space..........0.6~0.7 2.1 Model dimensions..........1215mm 4.17 Fuel tank capacity........... 7.8L standby:0.6L 2.2 Wheel base............

  • Page 27: Electric Diagram........................................................................ P50

    Engine case will be covered only if damaged caused by internal mechanical failure lubricated components. Warranty claim procedure: ●1)Customers needs to fill out the RMA form. From line: www.coolster.com/rma-information. html. ●2)Call for a RMA Number (626)-228-0251- RMA Department ●3)Ship the defective parts with the copy of your original invoices and the RMA form you filled out.
  • Page 28 All sales are final, No return, no exchange ,No refund for any reason. Changes ,Errors /Inaccuracies: www.coolster.com reserves the right to update or modify these Terms/ Conditions at any time without prior notice ,improvements to products may result in unannounced small changes to specifications and external appearance, We strive to list and advertise all text and...
