Summary of Contents for Coolster ATV-3150CXC

  • Page 1 To buy parts online please go to : www.coolster.com/catalog www.coolster.com...

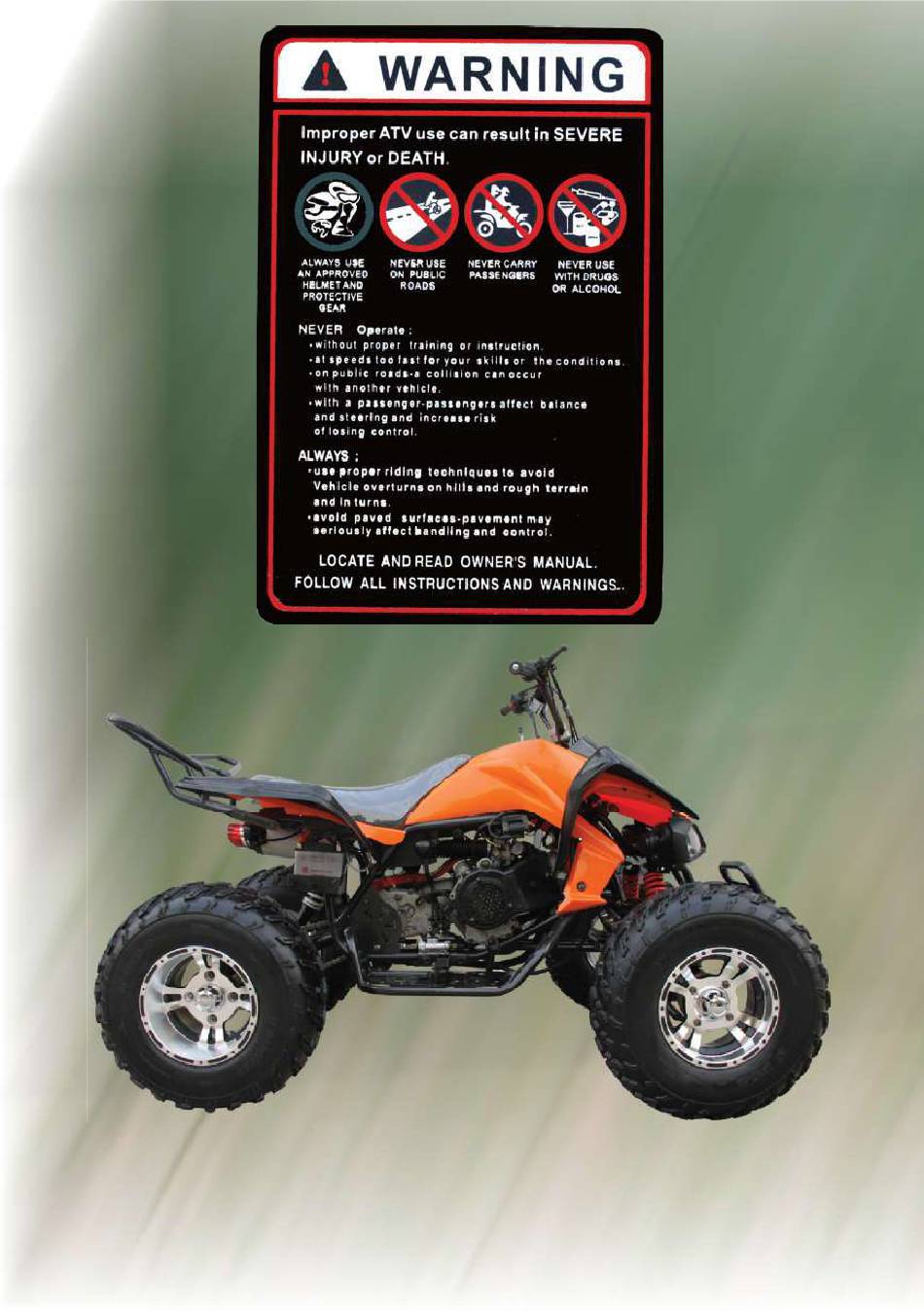

  • Page 2 OWNER’S MANUAL ALL TERRAIN VEHICLE ATV-3150CXC 150cc...
  • Page 3 • Warning is signal that lets people know the possible risks and tells people who drive this vehicle to operate by following the right instrus ons to avoid accidents. • Opera on of this ATV by children under the age of 16 in crease of the risk of severe injury or death •...
  • Page 4: Table Of Contents

    FOREWORD Thank you choose this all terrain vehicles The all-terrain vehicle is based on market demand, produc on of a comprehensive survey. We hope that it will bring you driving pleasure. Please read Dian Aberdeen before driving the manual, because it will help you understand it all terrain vehicles on the structure, role, opera on and maintenance of basic knowledge, while you keep off-road vehicles are in good condi on and safe driving will...
  • Page 5 PAY ATTENTION TO YOUR SAFETY The non-road vehicle use, and never-in the streets, sidewalks and motor vehicles driving along. Drivers must be over 16 years of age, driving the need for skilled personnel and adequate comprehension, intelligence and judgment to safely control driving. And accompanied by a guardian.
  • Page 6: Guidelines On Safe Driving

    GUIDELINES ON SAFE DRIVING ☆WARNING You could be KILLED or SERIOUSLY INJURED if do not follow instruc on. 1, when approaching corners or bends to reduce speed. Upon the comple on of turn, may gradually increase the speed. 2, when crossing the vehicles parked in front of, to be very careful.
  • Page 7 The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL NAME EXPLANATION Indicates a poten al personal injury Safety Alert hazard. To reduce the risk of injury, user must Read Operator’s read understand operator’s...
  • Page 8 2 、 Contact with local sales agent, search for training classes nearby, and do some necessary training. You can also watch our COOLSTER ATV Safety Video for more security informa ons ,please do not drive this ATV un l you get some appropriate guidance.
  • Page 9: Warning

    The warning signs with the word"WARNING" indica ng the existence of the poten al risks that may result in serious injury or death. WARNING WARNING Improper re pressure or overloading cause loss of control. Improper ATV use can result in SEVERE Loss of control can result in severe injury or death.
  • Page 10 ATV-Safety Alert...
  • Page 11 • NEVER ALLOW A CHILD UNDER 16 YEARS OLD TO OPERATE AN ATV WITHOUT ADULT SUPERVISION. CHILDREN NEED TO BE OBSERVED CAREFULLY BECAUSE NOT ALL CHILDREN HAVE THE STRENGTH, SIZE, SKILLS OR JUDGEMENT NEEDED TO OPERATE AN ATV SAFELY. • NEVER CARRY A PASSENGER ON SINGLE-RIDER ATV. CARRYING A PASSENGER MAY UPSET THE BALANCE OF THE ATV AND MAY CAUSE IT TO GO OUT OF CONTROL.
  • Page 12: Atv Recogni On

    ATV RECOGNITION 车架号码图片 VIN plate number and product VIN (See left picture) 发动机号码图片 Engine model and serial number(See right picture)...
  • Page 13: Descrip On

    DESCRIPTION Rear rack Gearshi pole Handle bar Seat Protector Ba ery Foot brake...
  • Page 14: Control Func Ons

    把手功能指示图 CONTROL FUNTIONS 1、The igni on switch Loca on Func ons Key state All circuits wre disconnected Pull out Not pull out 2、Mul func on switch Loca on Func on Turn on high beam Turn on dipped headlight 2)、 Starter switch When press the off...
  • Page 15 3、Accelerator controller When press this accelerator, the vehicle starts to move. Prohibit adjus ng it.
  • Page 16 7、The fuel Cover The fuel valve in the fuel filter will supply fuel from the fuel tank to the carburetor. Fuel valve has three loca ons. Disconnect: fuel will not Connected: fuel flow flow. When the engine is not carburetor. Run, it will handle running, always will be back this posi on.
  • Page 17 CONTROL FUNTIONS WARNING: • Always wear appropriate protec ve clothing and accessories: a properly fi ng helmet, eye protec on (goggles) marked to comply with ANSI Z87.1, gloves, over the ankle boots, long-sleeved shirt or jacket, chest protector, and long pants. •...
  • Page 18 WARNING: Always inspect your ATV according to the pre-ride inspec on checklist each me before riding and make sure it is in a safe opera ng condi on. Failure to inspect the ATV before opera ng could increase the chance of an accident, resul ng in serious personal injury or equipment damage.
  • Page 19 WARNING: Improper fueling of the ATV could be hazardous. Failing to follow safety precau ons when refueling could result in a fire or explosion or let you breathe toxic fumes, causing serious personal injury. Always shut off engine before fueling. Never add fuel to an ATV with a running or hot engine.
  • Page 20: Before The Inspction Opera On

    BEFORE THE INSPECTION OPERATION Prior th the use of the car, should check the following Item Normal checks Brake nspec on opera on, status and freedom i nerary. If necessary, should be adjused. Brake Performance confirm whether the good work can be checked out at low speed. accelerator Check whether the smooth opera on of the accelerator.
  • Page 21 Oil: Oil confirm whether oil at the designated place. (See left picture) 1, the maximum oil level. 2, the lowest of oil. (See right picture) Oil: Total: 0.9L Regular replacement of oil: 0.8 Oil Filters replacement: Does deforma on, damage. TIRES 1.
  • Page 22 Cold Start and engine prehea ng Note: This car has used to control the opera on of brake motor starter switch. Only in pinch engine brake handle on when to start. We had closed choke before delivery. Electric starter: 1, igni on switch come to the opera ng posi on.
  • Page 23 Brake Running,when there are obstacles in front of that(pedestrians, vehicles,goods),in order to brake security measures must be taken.Divided into braking decelera on braking,parking brake and emergency brake. 1),the braking decelera on Braking is decelera on in the decrease thro le aline can not meet requirements decelera on...
  • Page 24 The accelera on engine The commissoning Engine 0~1000 km from the motorcycle mileage during your life is very important for the period. Because the engine is new and in the mean me we must avoid prolonged Full Thro le or any situa on that could be the super-engine overhea ng.
  • Page 25: Opera On

    OPERATION TURNING To turn the ATV, the rider must use the proper technique. ● Move your body weight forward and to the inside of the turn. ● Turn the handlebar while looking in the direc on of the turn. NOTE: Do not a empt to turn the ATV around on any hill un l you have mastered the turning techniques on level ground.
  • Page 26 If you lose all forward speed: ● Keep weight uphill. ● Apply brakes. ● Lock parking brake a er you are stopped. If you begin rolling backward: ● Keep weight uphill. ● Apply brakes. ● Dismount on uphill side or if pointed straight uphill, to either side.
  • Page 27 SKIDDING OR SLIDING You may experience skidding or sliding when you are not braking, which may cause you to lose control of the ATV. You may also regain trac on unexpectedly, which may cause the ATV to overturn. Learn to safely control skidding or sliding by prac cing at low speeds and on level, smooth terrain.
  • Page 28 Warning: Opera ng the ATV through deep or fast flowing water may cause loss of trac on and loss of control, which could lead to an accident resul ng in serious personal injury. CAUTION: If you operate your ATV under severe condi ons, it will need brake maintenance more o en than shown in the maintenance schedule on page 29.
  • Page 29 DRESSING FOR COLD WEATHER RIDING Riding in cold weather can be hazardous. At a temperature of 10°F (–12 °C), the wind chill created by going just 10 mph makes you as cold as if you were standing s ll at a temperature of -9°F (–23 °C).
  • Page 30 Prac ce riding your ATV in an open snow or ice-covered area at slow speeds before heading out on snow or ice-covered trails. Learn how your ATV responds to steering and braking on the type of terrain you will encounter on your ride. Your eyes may be sensi ve to sunlight when you ride over snow or ice on a bright, sunny day.
  • Page 31 INSPECTION AND MAINTENANCE SCHEDULE It is very important to inspect and maintain your ATV regularly. Follow the guidelines in the chart below. The intervals between periodic services in months are shown. At the end of each interval, be sure to perform and document the maintenance listed.
  • Page 32 CAUTION: If you operate your ATV under severe condi ons, it will need maintenance more o en than shown in the chart above. Severe condi ons include opera ng under frequent full thro le or in dusty, wet, sandy, or muddy areas. If you have ques ons regarding appropriate maintenance intervals for your ATV, contact your authorized service center.
  • Page 33 1, the measurement of oil (See left picture) A. Engine preheater minutes. B. When the engine stopped opera ng, hold on a few minutes later, the oil Cypriots will be removed a er the oil-observa on. C. The oil should be located at the highest and the lowest among the oil-marker.
  • Page 34 Rear gear lubricants Please check before each riding gear box a er the oil spill, if there is any leakage, to COOLSTER dealer inspec on and maintenance. In addi on to the regular maintenance in accordance with the manual inspec on interval a er gear lubricants.
  • Page 35 Idle adjustment 1. Connect speed 2. Speed Fes val through idle screw on the carburetor, idling provisions set to rotate within the raise into the engine speed, to a decrease in engine speed from Standard Idle: 1600 ± 150 to / min Air Filters Filters should carry out regular checks, cleaning.
  • Page 36 Brown. Do not a empt to self-diagnosis of any fault, and should be sent to COOLSTER the car dealer or repair shop. You must be regularly removed and examined spark plugs, as heat and carbon deposi on will spark plugs slowly breakdown and abla on.
  • Page 37 3, ghten the lock nut. When the brake handle and can not be used to appropriate requests, please COOLSTER commissioned by the dealer or repair shop to adjust brake shoes. Locked nut Locked nut...
  • Page 38 The drive chain adjustment Ad juster Setscrew Ad juster 1、loosen the fixed chain adjuster screw and nut. 2、For tensioning chain, the chain by rota ng clockwise direc on on the M8 regulator an -reteat-pine nut and nut. If required relax chain, according to the direc on of rota on 10,000 an -chain adjuster on the M8 and the preven on of an -retreat Pine Nut Nut.
  • Page 39 The drive chain lubrica on The chain includes many mutual opera on of the parts. If the chain would not carry out proper maintenance, the chain that will soon wear. Therefore, we must carry out regular maintenance of the chain. In this dusty region riding car, the more maintenance is necessary.
  • Page 40 Ba ery Check the ba eries ba ery electrolyte level, and recognizing the terminal and the wiring of the ba ery casing is not leakage. If the electrolyte level low, add dis lled water. Note: The ba ery electrolyte checks at least once a month. Warning: ●...
  • Page 41 With the correct installa on of the new ampere fuse. Connect the switch and watch the work of electrical installa ons. Fusing immediately if the fuse again, please COOLSTER dealer or repair shop contact. Warning: ● Do not use the recommended ampere ra ng higher than the fuse.
  • Page 42 CLEANING 1, in order to keep the car clean and protect the surface appearance of the pain ng, electropla ng, should regularly or irregularly its cleansing. When cleaning, use of external surface water irriga on, rush soil. Use a so cloth or sponge dip cleaning liquid bubble gently cleans the outer surface, to avoid residual gravel surface and paint scratches electropla ng layer.
  • Page 43 STORAGE If the park does not need to use a long me, in order to maintain a good state of the car, you please address the following methods: 1),select the right parking place.The loca on should have security, ven la on, moisture-proof, an -freezing condi ons. 2),for engine lubricants.
  • Page 44 7) to inflatable res, re pressure up to the required standard air pressure. A er stopping the car will be good, with shelves or pieces of wood and other wheels will be boosted so that the wheel does not contact with the ground. 8) will cover the car to prevent the dust down.
  • Page 51: Main Specs

    ATV-3150CXC Main specs (1) Ⅰ、NO:ATV-3150CXC Ⅱ、The main specs of size: 1870×1010×1060mm 2.1 Model dimensions..........1215mm 2.2 Wheel base............165mm 2.3 Ground clearance..........26° 2.4 Front gradient........... 3600±200mm 2.5 Minimum turning radius........le \ light 42°±2° 2.6 Steering angle........... 170kg 2.7 Net Weight............
  • Page 52 ATV-3150CXC Main specs (2) 4.14 Carburator no..........PD25 4.15 Spark plug no..........D7TC 4.16 Spark plug space..........0.6~0.7 4.17 Fuel tank capacity........... 7.8L standby:0.6L 4.18 Engine displacement........5.1 Shock absorber front........hydraulic spring 5.2 Shock absorber rear.......... hydraulic spring 2.8 Gross:...
  • Page 54: Emissions Warranty Parts List

    EMISSIONS WARRANTY PARTS LIST Fuel metering System Igni on System Exhaust System Emission Control System Carburetor Spark Plug Exhaut Manifold Air Cleaner Housing Air Cleaner Housing Cov. Model Yera: 2013 or Later Models Manufacture Name: Zhejing Qiye Scooter co., LTD Importer Name: Maxtrade LLC.
  • Page 55: Electric Diagram

    ELECTRIC DIAGRAM...
  • Page 56 This warranty is limited to cover any defec ve parts of original purchaser of MAXTRADE LLC(here refer as MAXTRADE) for 90 days from the date of MAXTRADE,S sales invoice and does not cover common wear items such as blades, belts, nes, res etc, MAXTRADE reserves the right to inspect any equipment or parts, which are claimed to have been defec ve in ,material or workmanship.
  • Page 57 All sales are final, No return, no exchange ,No refund for any reason. Changes ,Errors /Inaccuracies: www.coolster.com reserves the right to update or modify these Terms/ Condi ons at any me without prior no ce ,improvements to products may result in unannounced small changes to specifica ons and external appearance, We strive to list and adver se all text...
