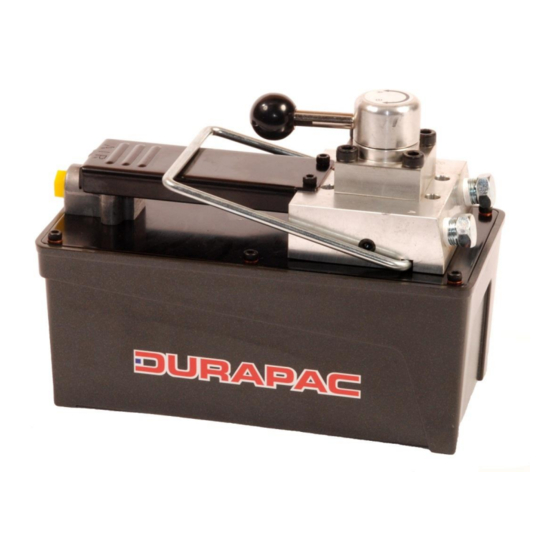

- Page 1 Instruction Manual Reciprocating Air Hydraulic Power Unit Model – DPA-15D Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your power unit’s suitability for a particular application. - Page 3 Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil CAUTION: ...
-
Page 4: Installation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your power unit, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com... -
Page 5: Operation
This increases the chance of a burst hazard. Damage may also occur to the power unit and its components 5.1 Connect air supply to the 1/4" NPT air nipple. DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com Page 5 of 10... -
Page 6: Maintenance
Durapac authorised service centre Damage to hydraulic hoses may not be detected during visual inspections. For this reason, Durapac recommends that hydraulic hoses be replaced on a regular basis Tighten connections as needed. Use non-hardening pipe thread compound when servicing connections Dirt, sand, etc. -
Page 7: Adding Hydraulic Fluid
Wipe clean thoroughly and store in a clean, dry environment. Avoid temperature extremes. 6.5.3 For transportation or long storage, replace the air vent plug with shipping plug. 6.5.4 Shield power unit with a protective cover. DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com Page 7 of 10... -
Page 8: Troubleshooting
Depressurise power unit and hose Remove application Fill fluid to proper level Poor performance Low fluid level in power unit Ensure proper fluid level DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com Page 8 of 10... -
Page 9: Parts Breakdown
***Supersedes all previous versions*** Note: Not all components of the power unit are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com Page 9 of 10... -
Page 10: Parts List
High Pressure Valve Assy ZBN1124 38 Screw ZBN1053 Items marked with a * are contained within a standard Repair Kit. Serial, model and part numbers need to be quoted when ordering parts. DPA-15D Air Hyd. Power Unit - V1.5 www.durapac.com Page 10 of 10...
