Summary of Contents for Durapac DPA-16

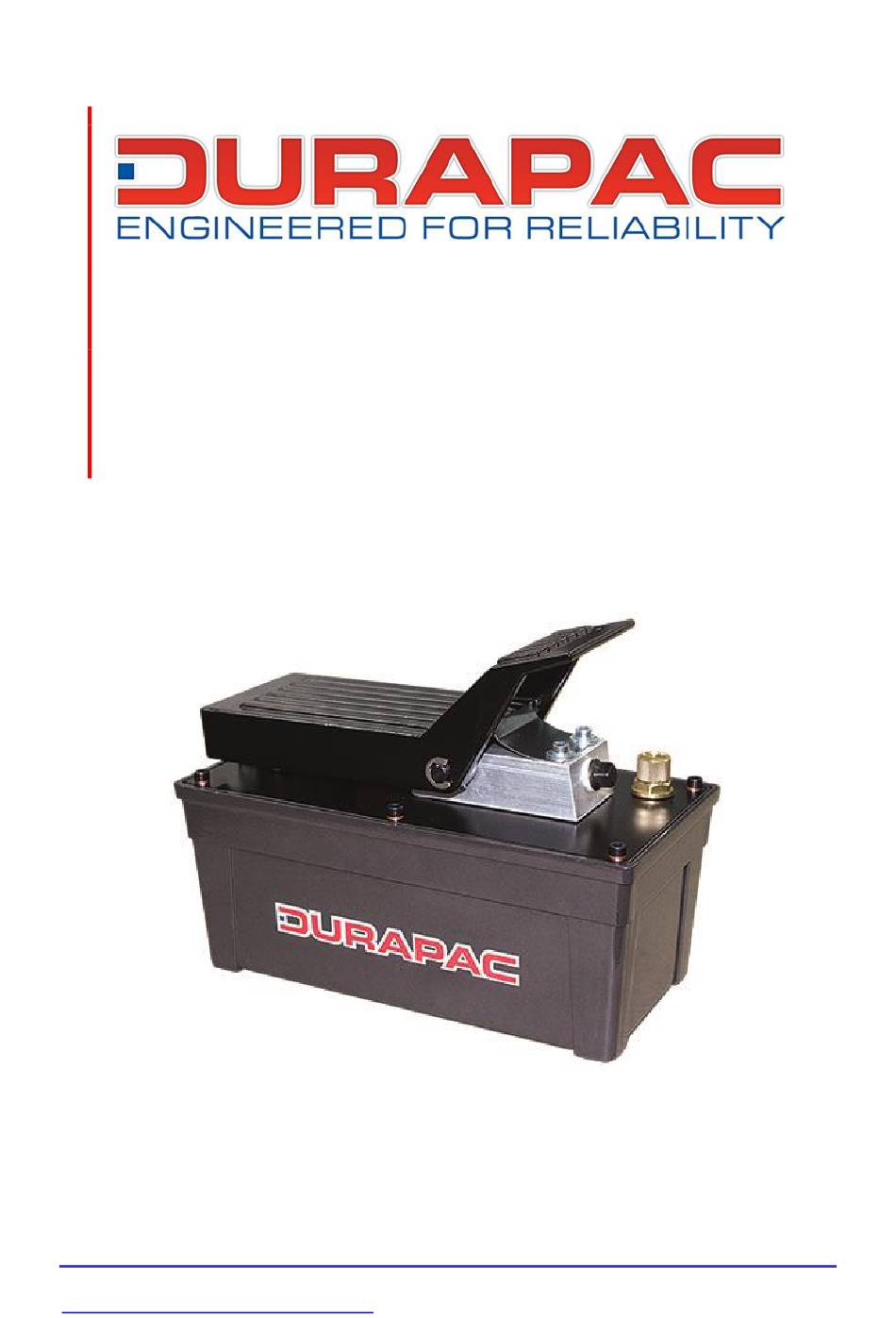

- Page 1 Instruction Manual Reciprocating Air Hydraulic Power Unit Model – DPA-16 Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au Phone: +61 7 3865 4006...
-
Page 2: Product Information
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your power unit’s suitability for an application. - Page 3 • Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high-quality hydraulic oil CAUTION: •...
-
Page 4: Installation
To extend the life of your power unit, the air compressor should have a filter, regulator and lubricator system that will provide clean, lubricated air to the power unit. Contact a Durapac representative for the necessary accessories DPA-16 Air Hyd. Power Unit - V1.0 www.durapac.com Page 4 of 10... -
Page 5: Operation
Know your power unit, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. 4.2 Air Connection - Remove plastic cap, connect suitable air supply to air input port. Air input port is designed to fit the popular 1/4"... -
Page 6: Adding Hydraulic Fluid
Durapac authorised service centre • Damage to hydraulic hoses may not be detected during visual inspections. For this reason, Durapac recommends that hydraulic hoses be replaced on a regular basis • Tighten connections as needed. Use non-hardening pipe thread compound when servicing connections Dirt, sand, etc. - Page 7 Wipe clean thoroughly and store in a clean, dry environment. Avoid temperature extremes. 6.5.3 Close the air vent for transportation or long storage. 6.5.4 Shield power unit with a protective cover. DPA-16 Air Hyd. Power Unit - V1.0 www.durapac.com Page 7 of 10...
-
Page 8: Troubleshooting
• Depressurise power unit and hose • Remove application • Fill fluid to proper level • Poor performance Low fluid level in power unit Ensure proper fluid level DPA-16 Air Hyd. Power Unit - V1.0 www.durapac.com Page 8 of 10... -
Page 9: Parts Breakdown
8.0 Parts Breakdown Note: Not all components of the power unit are replacement items but are illustrated as a convenient reference of location and position in the assembly sequence. DPA-16 Air Hyd. Power Unit - V1.0 www.durapac.com Page 9 of 10... -
Page 10: Parts List
Oil Drain Assembly Kit ZCZ1000 Items marked with a * are contained within a standard Repair Kit. Serial, model and part numbers need to be quoted when ordering parts. DPA-16 Air Hyd. Power Unit - V1.0 www.durapac.com Page 10 of 10...
