FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

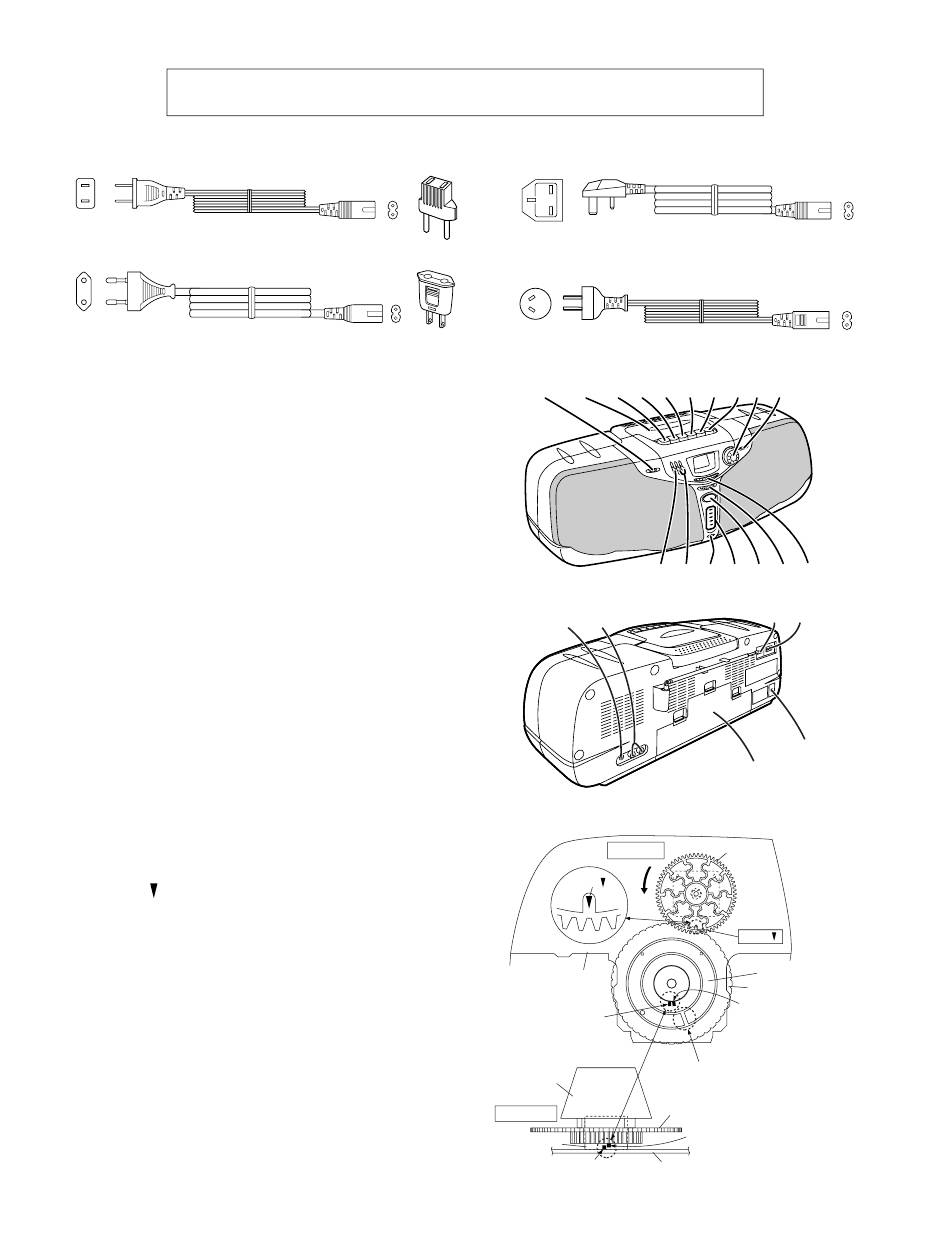

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

QACCA0004AW00
QACCE0007AW00
01. Function/Beat Cancel Switch
02. Cassette Compartment
03. Record Button
04. Play Button
05. Rewind Button
06. Fast Forward Button
07. Stop/Eject Button
08. Pause Button
09. Volume Control
10. Band Selector
11. Extra Bass Control
12. Graphic Equalizer Controls
13. Built-in Microphone
14. Sound Level Meter
15. Surround Button
16. Fine Tuning Control
17. Tuning Control
18. Mixing Microphone Socket
19. Line Input Sockets
20. AC Voltage Selector
21. AC Input Socket
22. Battery Compartment
23. Headphone Socket

HOW TO SET THE POINT "0" ON TUNER DIAL MEMORY

1. Remove the front cabinet and main PWB. (Refer to page 3,
of disassembly section.)
2. Turn the gear dial in the arrowed direction until it stops so
that the " " mark comes to the front of main PWB.
3. When the tuning knob is set at 2, adjust it from above so that
its "0" point rib comes to the right of "0" point rib of the dial
drum when you face the unit.
4. Check the tuning display label by turning the tuning knob.
The frequency band will be FM 88 - 108 MHz when the dial
is turned counter-clockwise.
5. Reassemble the front cabinet.
All manuals and user guides at all-guides.com
QPLGA0003AWZZ
QPLGA0004AWZZ

NAMES OF PARTS

– 2 –
QACCB0012AW00
QACCL0002AW00/QACCL0008AW00
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17
18 19
Top Side
Mark " "
2
Main PWB
Front Side
Dial Drum "0"
Point Rib
3
Dial Drum
Tuning Knob
Front Side
Tuning Knob
Bracket
Main PWB
Dial Drum "0" Point Rib
Figure 2
20 21
23
22
Gear Dial
Mark " "
Dial Drum
Tuning Knob
Tuning Knob
" 0 " Point Rib
"0" Point of Tuning Display
Tuning Knob "0" Point Rib
