WF-1100W

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage

as follows: Slide the AC power supply socket to the visible indication of the side of your local voltage.

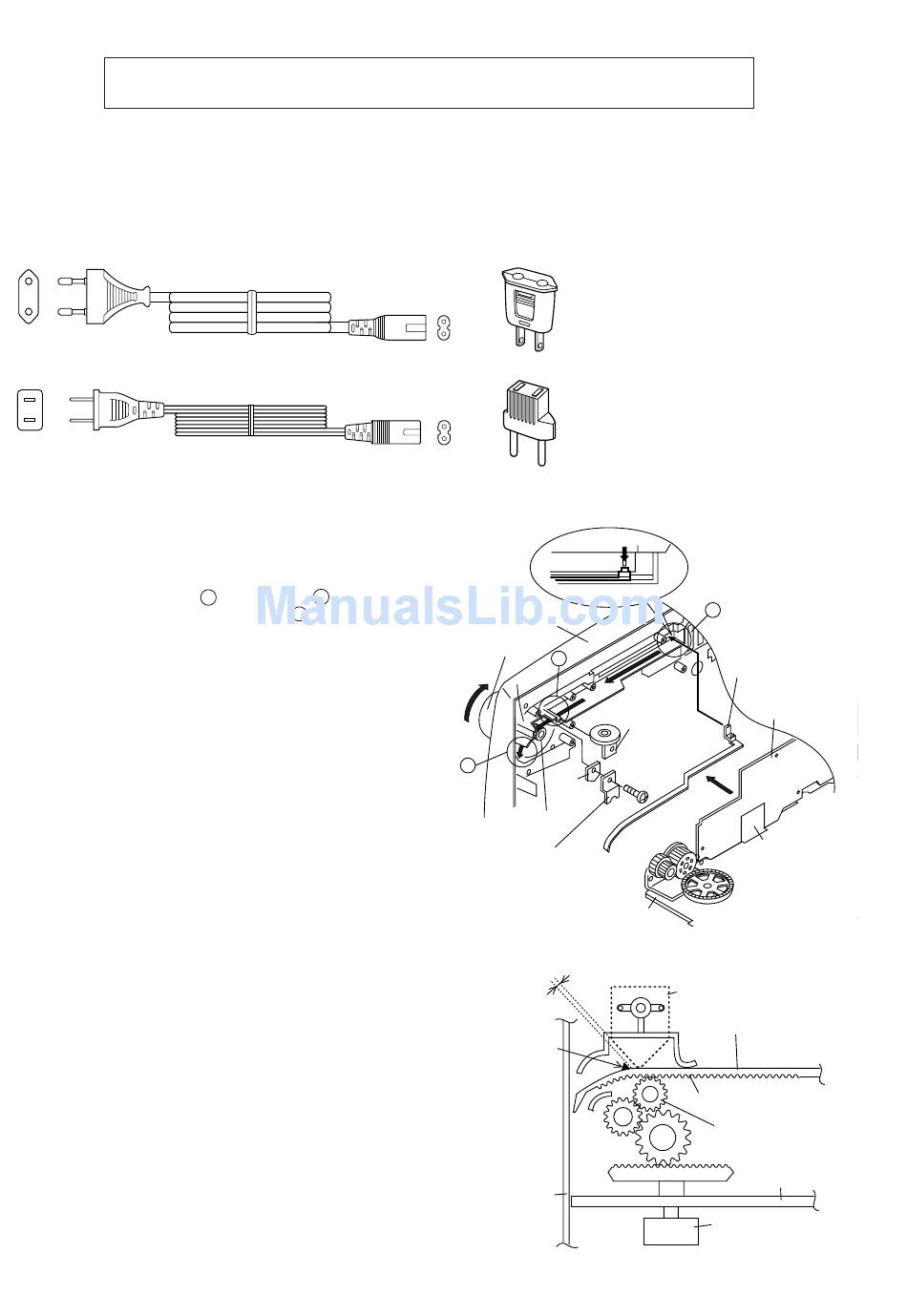

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

QACCE0007AW00

QACCA0001SJ00

1. Remove the Main PWB, the Graphic Equalizer PWB, the

Volume PWB and the Fine Tuning PWB. (See Figure 4-2

in the "Disassembly" on page 4.)

2. Remove the dial pointer guide and PWB.

3. Insert the dial pointer from

the tuner gear and then pass it through

4. Replace the Main PWB, the Graphic Equalizer PWB, the

Volume PWB and the Fine Tuning PWB.

5. Rotate the tuning knob in the arrow direction until it stops.

(Set the tuner variable capacitor to "0" point (F-LOW

state).)

6. Adjust the dial pointer so that its stopper becomes the

Figure 2-2 position. (Adjust the engagement of the pointer

gear and the tuner gear to get the minimum space between

the PWB and the stopper.) This position is the "0" point.

7. Screw up the PWB and the dial pointer guide.
