Section 3: Operation

Site Prep Verification

It is important that the generator is installed in such a way
that the airflow into and out of the generator is not
impeded. Verify that all shrubs or tall grasses have been
removed within 3 ft (0.91 m) of the intake and discharge
louvers on the sides of the enclosure. It is also important
that the generator is not subject to water intrusion. Verify
that all potential sources such as water sprinklers, roof
run-off, rain gutter down spouts and sump pump
discharges are directed away from the generator
enclosure.
WARNING
Risk of fire. Keep air inlet and exhaust areas
free from leaves, grass, snow and other debris.
Failure to do so could result in death, serious injury,
property, and equipment damage.
DANGER
Automatic start-up. Disconnect utility power and
render unit inoperable before working on unit.
Failure to do so will result in death or serious injury.
Turn the generator OFF before performing maintenance.
Remove 7.5 Amp fuse, T1 battery charge fuse from the
transfer switch, and disconnect battery cables to prevent
accidental start up. Disconnect the NEGATIVE (–) cable
first, then disconnect the POSITIVE (+) cable. When
connecting the cables, connect the POSITIVE cable first,
the NEGATIVE cable last.
WARNING
Equipment damage. Only qualified service personnel may
install, operate, and maintain this equipment. Failure to follow
proper installation requirements could result in death, serious
injury, and equipment or property damage.
Owner's Manual for 7.5 kW PowerPact™

Controller Lid

To open or close the controller lid:
1. See view "A" in
open. Lid will lock in place when raised.
2. See view "B" in
out sightly to unlock, then lower to close.
A

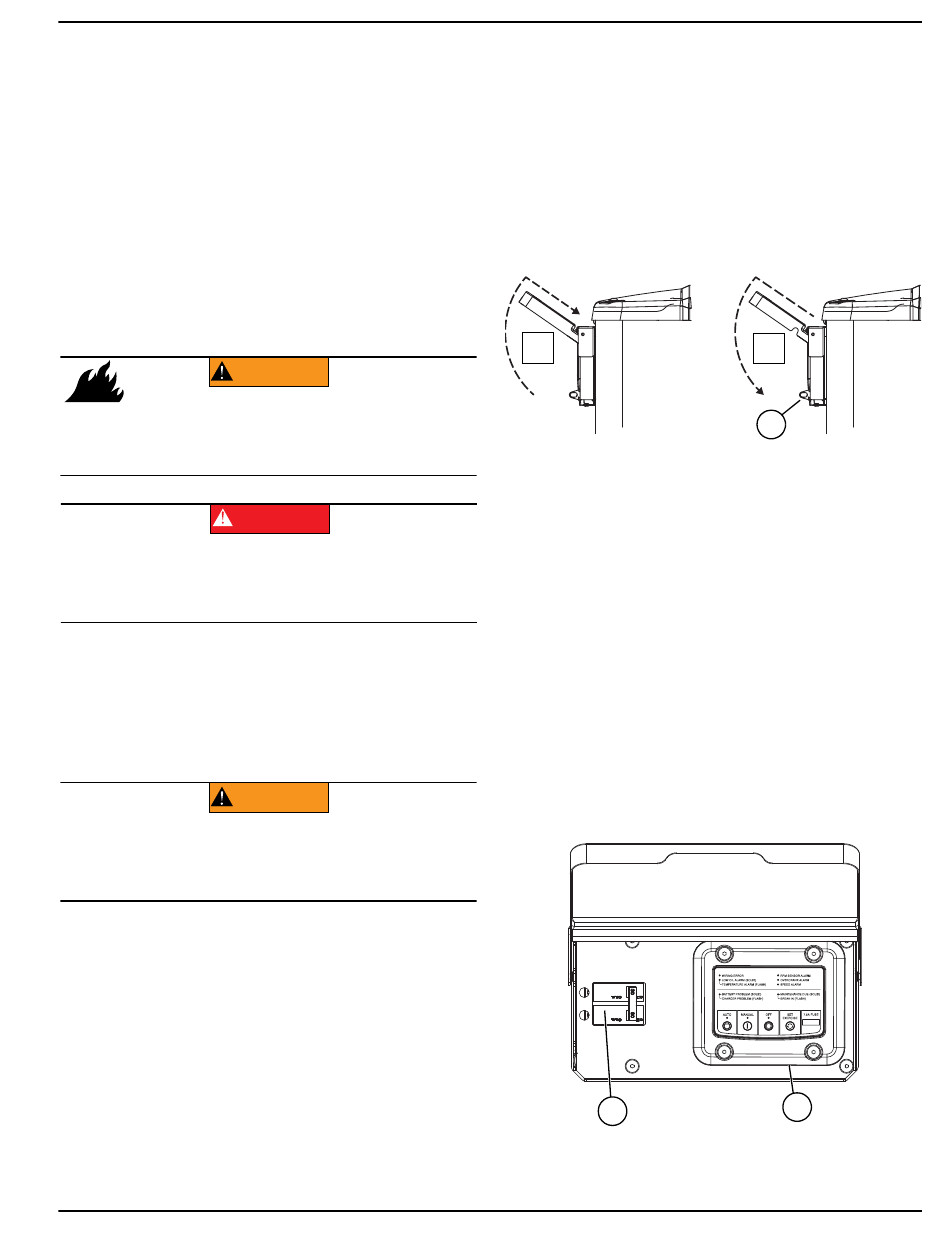

Figure 3-1. Open and Close Controller Lid
(000251)
NOTE: Local codes may require this compartment to be
locked. A hasp is provided so the owner/operator can
secure the compartment with a padlock (C in
Check local codes for side compartment locking
requirements.
(000191) NOTE: All appropriate panels must be in place during
any operation of the generator. This includes operation
by a
troubleshooting procedures.
Main Line Circuit Breaker
(Generator Disconnect)
The Main Line Circuit Breaker (MLCB) is located under
the Controller Lid. Open the Controller Lid to access the
circuit breaker (A in
(000182a)
Figure 3-2. Control Panel and Circuit Breaker
Figure 3-1. Lift lid from bottom to
Figure 3-1. Pull raised lid up and
B
servicing technician
Figure 3-2).
C
A
Operation
C
001705
Figure 3-1).
while conducting
001039
B
11
