Installation and
Operation Manual
This equipment must be installed and serviced by a qualified technician.
WARNING
!
Improper installation can create electrical hazards which could result in
property damage, serious injury or death. Improper installation will void
the warranty.
Notice to Installer
This manual contains important information about the installation,
operation and safe use of this product. Once the product has been installed
this manual must be given to the owner/ operator of this equipment.

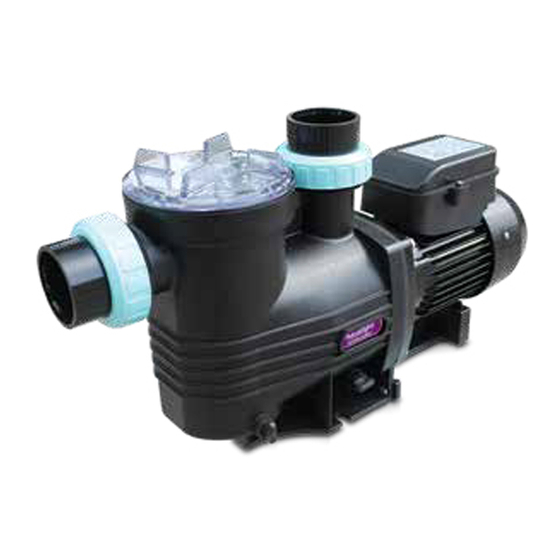

Saturn Series
Pumps
www.autopool.com.au
Advertisement
Table of Contents
Related Manuals for Aquatight Saturn Series
Summary of Contents for Aquatight Saturn Series
- Page 1 Saturn Series Pumps Installation and Operation Manual This equipment must be installed and serviced by a qualified technician. WARNING Improper installation can create electrical hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
-
Page 2: Table Of Contents
WIRING DIAGRAM ..................05 PRIMING ....................... 06 MAINTENANCE ....................07 FLUID TEMPERATURE .................. 07 SERVICING ......................07 WARNINGS FOR INSTALLATION AND ..........08 ASSEMBLY TASKS WARNINGS FOR ASSEMBLY AND ............08 MAINTENANCE TASKS TROUBLESHOOTING ..................09 Aquatight Saturn Series Pumps... -
Page 3: General Safety Rules 03Location
15. If the pump is to be installed on a swimming pool or pond situation it is mandatory that an earth leakage circuit breaker with a rated tripping current not exceeding 30mA be installed. Aquatight Saturn Series Pumps 3... -
Page 4: Installation
7. The motor must be grounded. 8. The weight of the plumbing and fittings is to be independently supported and not carried by the pump. 9. The pump motor cooling fan must have a minimum clearance of 150mm. Aquatight Saturn Series Pumps... -
Page 5: Electrical Connection
MAKE CERTAIN THE MAINS POWER IS SWITCHED OFF. WIRING DIAGRAM • SINGLE PHASE • THREE PHASE Black = L3 Blue = Neutral Blue = L2 Brown = Live Brown = L1 Green/ Yellow = Earth Green/ Yellow = Earth Aquatight Saturn Series Pumps 5... -
Page 6: Priming
CLOCKWISE ROTATION PRIMING The Aquatight Saturn pump will prime and re prime providing the hair and lint pot bowl is full of water and there is sufficient supply from the suction point. If you lose water from the hair and lint pot bowl it will be necessary to re fill it before starting. -
Page 7: Maintenance
SERVICING If the need arises or you are unable to service your Aquatight Saturn pump always contact your Authorised Aquatight Saturn Service Agent for advice or infield service. • Always use genuine Aquatight Saturn replacement parts when carrying out pump maintenance. -
Page 8: Warnings For Installation And
If supplementary instructions are required or if special problems arise, do not hesitate to contact the distributor or to address directly the manufacturer of the pump. Aquatight Saturn Series Pumps... -
Page 9: Troubleshooting
Warning: If the Aquatight Saturn pump is within the stated warranty period and you experience faults always contact your supplier or the nearest Aquatight Saturn Service Agent for advice. Failure to do this may void warranty. Refer to warranty documentation supplied with pump. - Page 10 Note:...
- Page 11 Note:...
- Page 12 PERTH BRISBANE 4/115 Belmont Avenue, Unit 2/5 Stockwell Place, Belmont, WA 6104 Archerfield, QLD 4108 Australia Australia Phone: 1300 656 956 Phone: 1300 656 956 Fax: 08 9361 3913 Fax: 07 3272 9091 Email: perth@autopool.com.au Email: brisbane@autopool.com.au MELBOURNE SYDNEY Australia Australia Phone: 1300 656 956 Phone: 1300 656 956...
