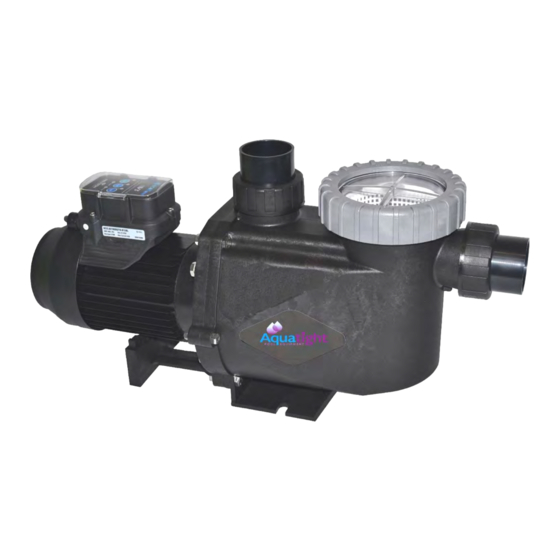

V3 PRO+, V5 PRO+, V8 PRO+
INSTALLATION AND OPERATION MANUAL
Perth
2 Stretton Place,
Balcatta, WA 6021
Phone: 1300 656 956
ECOFLO V3 PRO, V5 PRO
POOL & SPA PUMP
AutoPool
Distributors of Pool and Spa Equipment.
Brisbane
77 Nealdon Drive,
Meadowbrook, QLD 4131
Phone: 1300 656 956
Melbourne/Sydney
Phone: 1300 656 956
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Aquatight ECOFLO Series
Summary of Contents for Aquatight ECOFLO Series

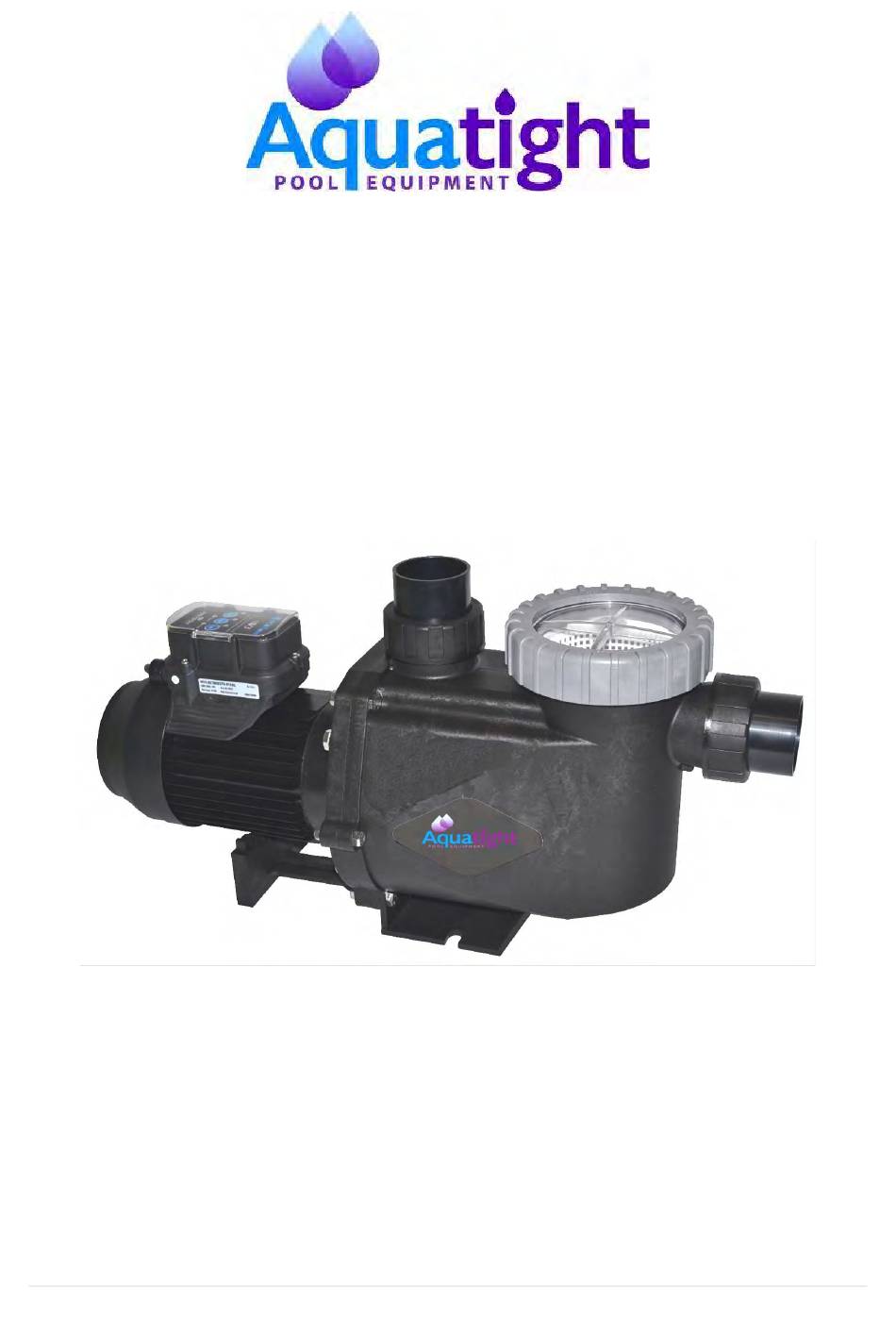

- Page 1 ECOFLO V3 PRO, V5 PRO V3 PRO+, V5 PRO+, V8 PRO+ POOL & SPA PUMP INSTALLATION AND OPERATION MANUAL AutoPool Distributors of Pool and Spa Equipment. Perth Brisbane Melbourne/Sydney 2 Stretton Place, 77 Nealdon Drive, Phone: 1300 656 956 Balcatta, WA 6021 Meadowbrook, QLD 4131 Phone: 1300 656 956 Phone: 1300 656 956...
- Page 2 Read these instructions before operating the pool and spa pump. Please pass these instructions on to the owner of this equipment. MODELS V3 PRO(+) (1.25 HP) V5 PRO(+) (1.75HP) V8PRO+ (2.25HP) DANGER - HAZARDOUS SUCTION Do not block water entry into filtration system with any part of your body as the suction can trap hair or body parts, causing severe injury or death.
-
Page 3: Features And Benefits
Ecoflo Fully Variable 3 Speed Pool / Spa Pump Read these instructions before operating the pool and spa pump. Please pass these instructions on to the owner of this equipment. The Ecoflo V3 PRO pool pump uses a patented variable 3 speed permanent magnet brushless DC motor. -
Page 4: Weather Protection
Dimensions Installation Instructions LOCATION The pump should be located as close to the water as practicable and mounted on a firm base in a well drained position, high enough to prevent any flooding. It is the installer’s/owner’s responsibility to locate the pump so that it can be accessed for service and maintenance. -
Page 5: Pipe Connection
PIPE CONNECTION A barrel union is provided for connecting to the piping from the pool. The pumps are designed to accept the following PVC Pipes: • Inlet PVC Position 40mm pipe ID or 50mm fitting ID PVC pressure pipe fittings •... -
Page 6: Operation
OPERATION Starting the Pump To operate efficiently and to prevent damage to the pump there must be a free flow of water to and from the pump. Before starting ensure that: • All pipe work is correctly sealed. • Barrel unions on the inlet and outlet are hand tightened and the pipework is installed square to the pump. - Page 7 Adjustable Speed Mode Factory Setting Speeds / Star Ratings V3 PRO & PRO+ @ 7 Star Low @ 1600 Medium @ 2400 High @ 2850 V5 PRO & PRO + @ 7 Star Low @ 1450 Medium @ 2400 High @ 2850 V8 PRO + @ 8 Star Low @ 1320 Medium @ 2400...
- Page 8 V3 / V5 / V8 PRO and PRO+ VARIABLE 3 SPEED OPERATION The Ecoflo Variable Speed Pumps has 3 speed settings…. 1. Eco (Energy Saving) • This should be used for everyday water filtration • The pump should be operated for approximately 8 hours per day depending on the surrounding climate, bather loads, pool volume and length of pipework.
-
Page 9: Water Quality
AUTOPOOL’S RECOMMENDATION • During day-to-day operation we recommend to run the V3 PRO on “eco” for 8 hours. This will achieve the lowest noise and lowest operating costs. • In some cases (larger pools, warmer climates and increase bather loads you may have to increase the speed setting or operating duration. -
Page 10: Troubleshooting
TROUBLE SHOOTING If the pump does not operate, one of the following conditions may apply: a. The power is not connected. For 240 volts only. b. Check the power point by plugging in a portable appliance to ensure power is available. c. - Page 11 Blinks/ Fault Software Cause Action Display Er01 Micro controller Micro controller is continually No action can be taken to resolve issue. Return motor for failure rebooting. warranty. Er02 Under voltage The line voltage has dropped - The controller will reboot after voltage comes above 209 volts AC below 180 volts AC running.
- Page 12 Ecoflo Fully Variable 3 Speed Pool / Spa Pump Limited Warranty Your Autopool ECOFLO V3 PRO pool and spa pump is covered by a limited three-year warranty. Please refer below for details as follows: • 3 year limited warranty against defects in workmanship and materials excluding obvious neglect, misuse, improper installation or improper maintenance from date of purchase.
- Page 13 PLEASE NOTE: This literature is not a complete guide to product usage. Further information is available from your AUTOPOOL dealer, AUTOPOOL Customer Service Centre and from the relevant product Installation and Operating Instructions. This data sheet must be read in conjunction with the relevant product Installation and Operating Instructions and all applicable statutory requirements.
