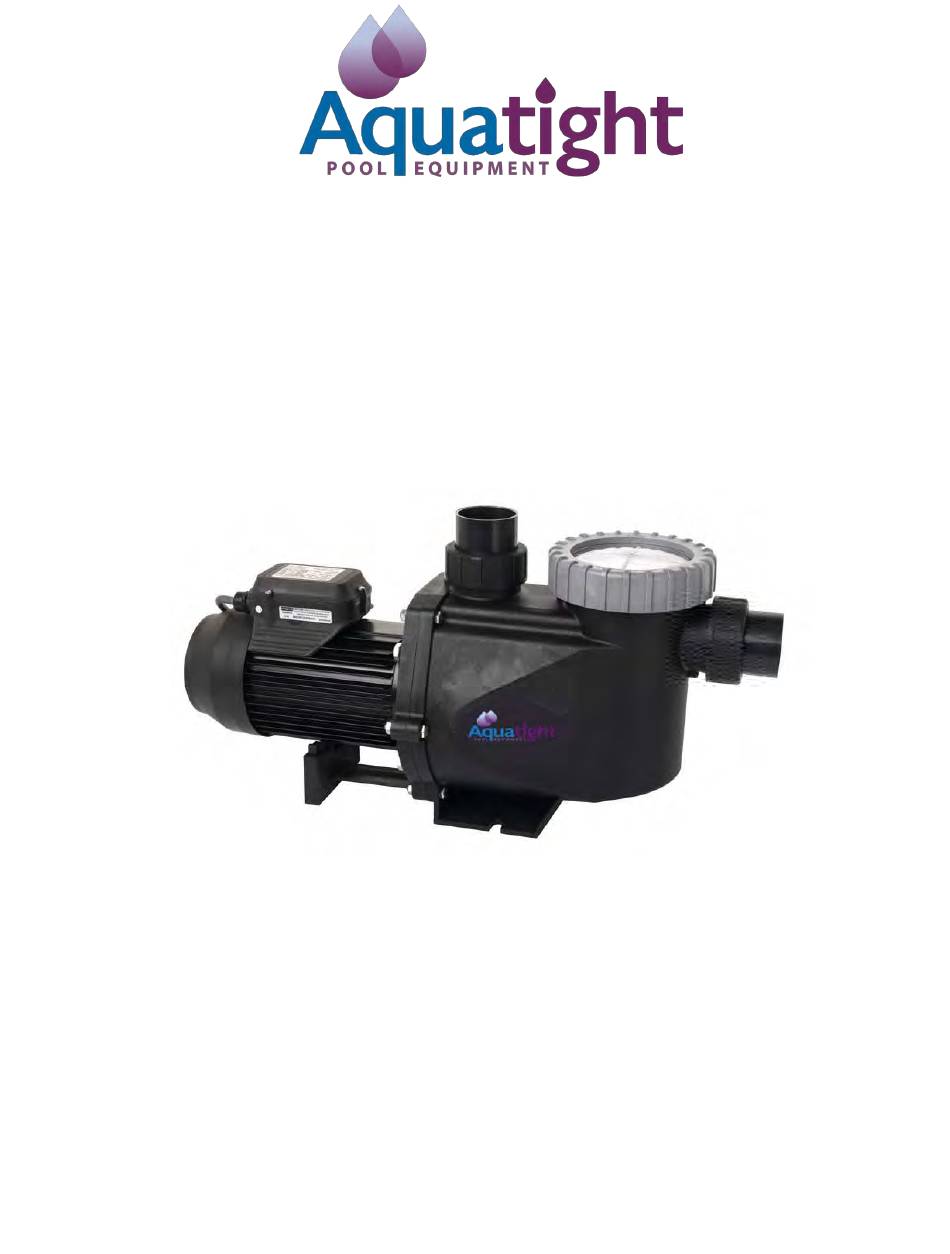

AUSTRALIA MADE
POOL & SPA PUMPS
INSTALLATION AND OPERATION MANUAL
AQUATIGHT POOL EQUIPMENT
Distributors of Pool and Spa Equipment.
Perth
2 Stretton Place,
Balcatta, WA 6021
Phone: 1300 656 956
S230, S310, S350, S450, S520
Brisbane
77 Nealdon Drive,
Meadowbrook, QLD 4131
Phone: 1300 656 956
Melbourne / Sydney
Phone: 1300 656 956
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Aquatight S230
Summary of Contents for Aquatight S230
- Page 1 AUSTRALIA MADE POOL & SPA PUMPS INSTALLATION AND OPERATION MANUAL S230, S310, S350, S450, S520 AQUATIGHT POOL EQUIPMENT Distributors of Pool and Spa Equipment. Perth Brisbane Melbourne / Sydney 2 Stretton Place, 77 Nealdon Drive, Phone: 1300 656 956 Balcatta, WA 6021...
- Page 2 ➢ The fittings on this product are constructed of ABS. Some PVC jointing compounds are incompatible with ABS. Check compound suitability before use. ➢ AQUATIGHT POOL EQUIPMENT recommends that all installations are fitted with earth leakage or residual current protection devices.
-
Page 3: Features And Benefits

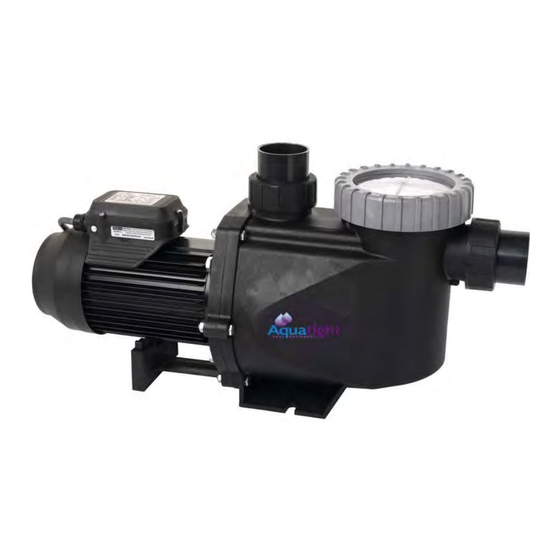

AQUATIGHT POOL EQUIPMENT’S advanced pump technology provides reliable and efficient performance that lasts. AQUATIGHT POOL EQUIPMENT pool and spa pump are designed with high flow and the head pressures are ideally suited for the modern pool or spa with extensive equipment. -
Page 4: Weather Protection
Enclosures should be ventilated to allow a free flow of air for the fan cooled motor. Power Connection AQUATIGHT POOL EQUIPMENT pool and spa pumps are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 5: Pipe Connection
Pipe Connection A barrel union is provided for connecting to the piping from the pool. The pumps are designed to accept the following PVC Pipes: • Inlet PVC Position 40mm pipe ID or 50mm fitting ID PVC pressure pipe fittings •... -
Page 6: Water Quality
Limits Water temperature Max 45ºC Ambient Temperature Max 55ºC DBa @ 1 meter 64 Water Quality Maintaining balanced water chemistry is important to the life of your pool pump. This pump is designed to be used with Pool & Spa water, balanced in accordance with Langlier Saturation Index, with a pH level of between 7.2 and 7.8 and is regularly treated with a chlorine sanitizing agent with the level not exceeding 300PPM. - Page 7 ➢ Barrel unions need to be hand tightened. No sealant, glues or silicones are required. ➢ When making any enquiries about your AQUATIGHT POOL EQUIPMENT pool and spa pump be certain to quote the model number from the nameplate located on motor.
- Page 8 This warranty is subject to the conditions and limitations herein after stated. You must notify AQUATIGHT POOL EQUIPMENT of the failure of any component of your pool and spa pump and motor within 7 days of the recognised fault. AQUATIGHT POOL EQUIPMENT will at its option, repair or replace any defective parts.
- Page 9 ➢ This literature is not a complete guide to product usage. Further information is available from your AQUATIGHT POOL EQUIPMENT dealer, AQUATIGHT POOL EQUIPMENT Customer Service Centre and from the relevant product Installation and Operating Instructions. This data sheet must be read in conjunction with the relevant product Installation and Operating ➢...
