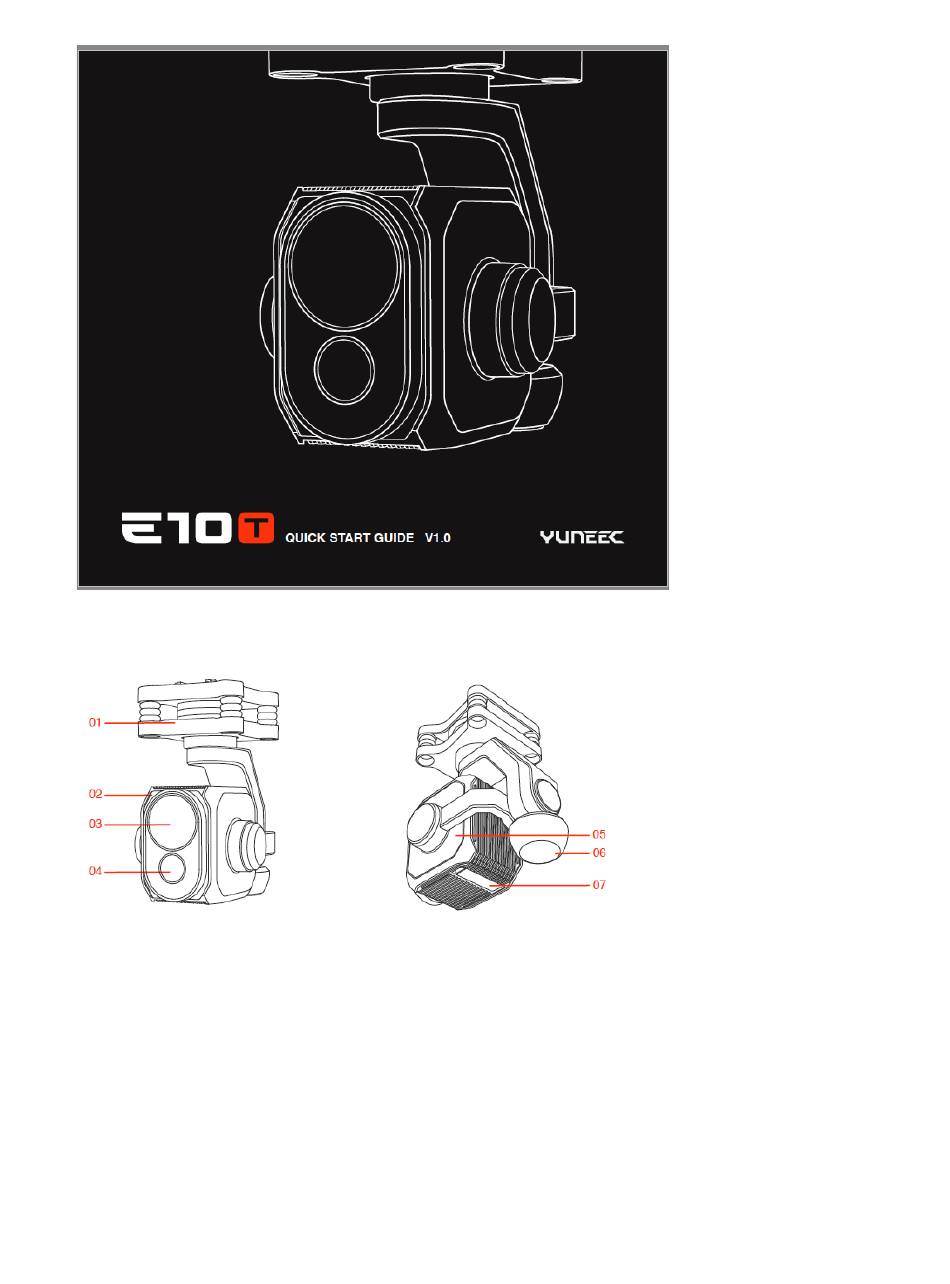

E10T QUICK START GUIDE V1.0 Introduction and Overview Damping Plate LED Status Indicator RGB Camera Lens Infrared Camera Lens Gimbal 5GHz Antenna SD Card Upgrading Port Specifications General Product Name: 3-Axis Gimbal Camera...
Page 3
Find the arrow printed on the top of the damping plate, which indicates the correct direction for installation. Step 2. Slide the E10T in the indicated direction all the way into the mounting slot, until the E10T is secured by the locking clip. Step 3. Remove the lens protector.
Page 4
Find the locking clip which is located in front of the mounting slot. Step 2. Press and hold the locking clip and push the E10T forward (the direction shown by the arrow). Binding the E10T Step 1. Switch on the ST16S and the H520 aircraft.
Page 5
Do not expose the lens of E10T gimbal camera to extreme light sources. Do not operate the E10T gimbal camera in the rain or in environments with high humidity. Do not touch or move the E10T gimbal camera until the initialization process has been completed.
Disclaimer Yuneec International (China) Co., Ltd. cannot be held liable for any damage, injury or for use of the product in violation with legal regulations, especially in the following circumstances: Damage and/or injury as well violation of legal regulations resulting from a failure to comply with the operating instructions or the instructions at www.yuneec.com, product information, user manual and other legally binding information.
Damage and/or injury as well as violation of legal regulations caused by flying in legally defined no-fly zones. Further losses which do not fall within the scope of use defined by Yuneec as improper. This product is designed for both professional use and personal, private use. The national and international laws and regulations in force as the time of taking off must be adhered to.
5G Wifi: 5560-5580MHz (27dBm), 5680-5700MHz (27dBm) EU Compliance Statement Hereby, Yuneec International (China) Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://yune.ec/de-downloads.
