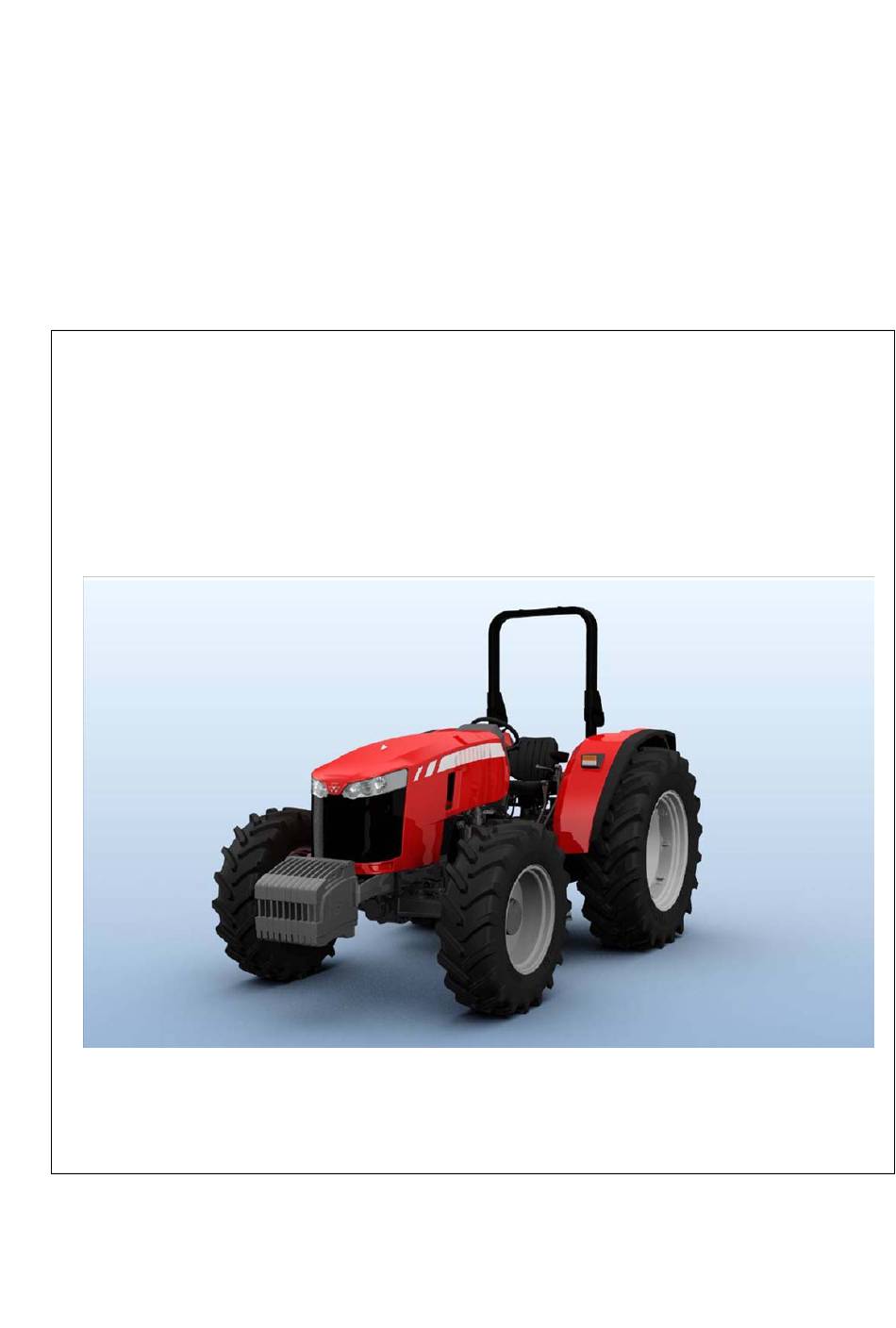

- Page 1 4700 series tractors MF 4707 MF 4708 MF 4709 AGCO S.A. - Beauvais - France - RC B562 104 539 No. ACW0051230 MASSEY FERGUSON is a worldwide brand of AGCO Issue 1 © AGCO 4700 - EAME Original Operator's Manual...
- Page 3 Foreword We would like to welcome you to the ever-growing number of people who own a Massey Ferguson tractor; people who appreciate quality. We are proud of every tractor that leaves our factories, each being technically advanced and of a high quality. This Operator's Manual contains the specifications for your new tractor.
- Page 4 4700 - EAME ACW0051230 - 1...
-
Page 5: Tractor Identification
Table of contents 4700 series tractors Tractor identification ............11 Locating serial numbers. - Page 6 Table of contents 2.11.2 Pre-delivery inspection and commissioning on the user’s premises ..52 2.11.3 Warranty procedure ..........52 2.11.4 Procedure to follow if changing region .
- Page 7 3-cylinder engine AGCO Power........
- Page 8 Table of contents 4.6.3 Four-wheel drive front axle: checking the oil level in the final drives ..182 4.6.4 Four-wheel drive front axle: draining the oil in the final drives ... . 183 4.6.5 Four-wheel drive front axle: Checking the front axle beam oil level .
- Page 9 Table of contents Power take-off ............226 5.7.1 Specifications .
- Page 10 Table of contents 4700 - EAME ACW0051230 - 1...
- Page 11 Table of contents 1. Tractor identification Locating serial numbers........... . . 13 1.1.1 Locating serial numbers .
- Page 12 Table of contents 4700 - EAME ACW0051230 - 1...
-
Page 13: Locating Serial Numbers
1. Tractor identification Locating serial numbers 1.1.1 Locating serial numbers T018743 Please quote the serial number of your tractor in all correspondence with your dealer or agent. MPORTANT Fig. 1. I046032 Name plate with serial number Front axle serial number Platform serial number Chassis serial number Homologation plate (according to country) -
Page 14: Your Tractor Identification Details
1. Tractor identification Your tractor identification details 1.2.1 Your tractor identification details T000866 Model: ________________________________________________________________________________________ _______________________________________________________________________________________________ Serial number: __________________________________________________________________________________ _______________________________________________________________________________________________ Engine serial number: ___________________________________________________________________________ Owner's name: ________________________________________________________________________________ _______________________________________________________________________________________________ Street: _________________________________________________________________________________________ _______________________________________________________________________________________________ Postcode: ______________________________________________________________________________________ Town: _________________________________________________________________________________________ County: ________________________________________________________________________________________ Country: _______________________________________________________________________________________ Dealer code: ___________________________________________________________________________________ Tractor received from (tick one of the following): Factory Other dealer (transfer) -
Page 15: Table Of Contents
Table of contents 2. Safety instructions and safety points - Warranty Introduction ..............17 2.1.1 Introduction - Safety instructions . - Page 16 Table of contents 4700 - EAME ACW0051230 - 1...
-
Page 17: Safety Instructions And Safety Points - Warranty
2. Safety instructions and safety points - Warranty Introduction 2.1.1 Introduction - Safety instructions T000867 Operator's Manual This Operator's Manual is widely published and distributed and the availability of the attachments in- dicated, whether fitted to the basic tractor or as an accessory, may vary depending on the country or region in which the tractor is used. - Page 18 2. Safety instructions and safety points - Warranty Customers are strongly advised to contact a Massey Ferguson dealer in the event of after-sales problems and for any adjustments which may be necessary. 4700 - EAME ACW0051230 - 1...
-
Page 19: Safety - Symbols And Terms
2. Safety instructions and safety points - Warranty Safety — Symbols and terms 2.2.1 Safety — Symbols and terms T000869 Signal This safety alert symbol means CAUTION! BE ALERT! YOUR SAFETY DEPENDS ON IT! The safety alert symbol identifies important safety notices on machines, safety signs, in instruction books or elsewhere. -
Page 20: Safety Decals And Instructions
2. Safety instructions and safety points - Warranty Safety decals and instructions 2.3.1 Checking and replacing the safety decals and instructions T000871 ARNING Never remove or obscure the safety decals and instructions. Replace any safety decals and instructions that are illegible or missing. Replacement decals are available from the dealer in the event of loss or damage. -
Page 21: Presentation And Location Of The Safety Decals And Instructions
2. Safety instructions and safety points - Warranty 2.3.2 Presentation and location of the safety decals and instructions T019788 4700 - EAME ACW0051230 - 1... - Page 22 2. Safety instructions and safety points - Warranty Fig. 1. I043877 4700 - EAME ACW0051230 - 1...
- Page 23 2. Safety instructions and safety points - Warranty – 4296946M1 ((E) fig. – WARNING: Runaway machine and runover haz- ards. Switch off the ignition, remove the ignition key and engage the ParkLock before leaving the tractor. 4 296 946 M1 –...
- Page 24 2. Safety instructions and safety points - Warranty – 4297924M1 ((C) fig. – DANGER: Electrocution hazard Tractors fitted with a front loader: Exercise extreme caution to avoid coming into contact with power lines. 4 297 924 M1 – 4375776M1 ((D)fig. 1 –...
- Page 25 2. Safety instructions and safety points - Warranty – 4375856M1 ((I) fig. – DANGER: Entanglement hazard PTO shaft. Stand clear of rotating shafts. Keep all driveline, tractor and equipment guards in place during operation. – 4375885M1 ((G) fig. – WARNING: Risk of burning Keep away from hot engine components when engine has been running.
- Page 26 2. Safety instructions and safety points - Warranty – 4392000M1 ((L) fig. – DANGER: Rear overturn hazard, which may result in personal injury or death. Pull only from approved drawbar or bottom links of 3-point hitch at horizontal position or below. Never pull from above the rear axle centreline.
-
Page 27: General Safety Instructions
2. Safety instructions and safety points - Warranty General safety instructions 2.4.1 Awareness of the safety instructions and symbols T000880 Remember that you alone are responsible for safety. Good safety practices protect not only you, but also bystanders. Before using the tractor, study the instructions given in this book with care, as well as all of the safety decals and instructions fixed to the tractor: Make them an integral part of your safety procedure. -
Page 28: Filling The Fuel Tank
2. Safety instructions and safety points - Warranty – ARNING In poor conditions, slow down and be extra careful, and engage 4-wheel drive if fitted. It is important to have good knowledge of the operation of the tractor as well as all of its ac- cessories and attached implements. - Page 29 2. Safety instructions and safety points - Warranty 4. Lower the implements to the ground. 5. Stop the engine (see the chapter in the Operation section of the Operator's Manual). Ensure that the en- gine is not idling and has stopped. 6.
-
Page 30: Special Instructions
2. Safety instructions and safety points - Warranty Special instructions 2.5.1 Specific recommendations for agricultural and forestry tractors T006914 Hot surfaces Be careful of surfaces which may be hot, in particular engine and hydraulics components, during operation and services. FOPS (Falling Object Protection Structure) –... - Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
