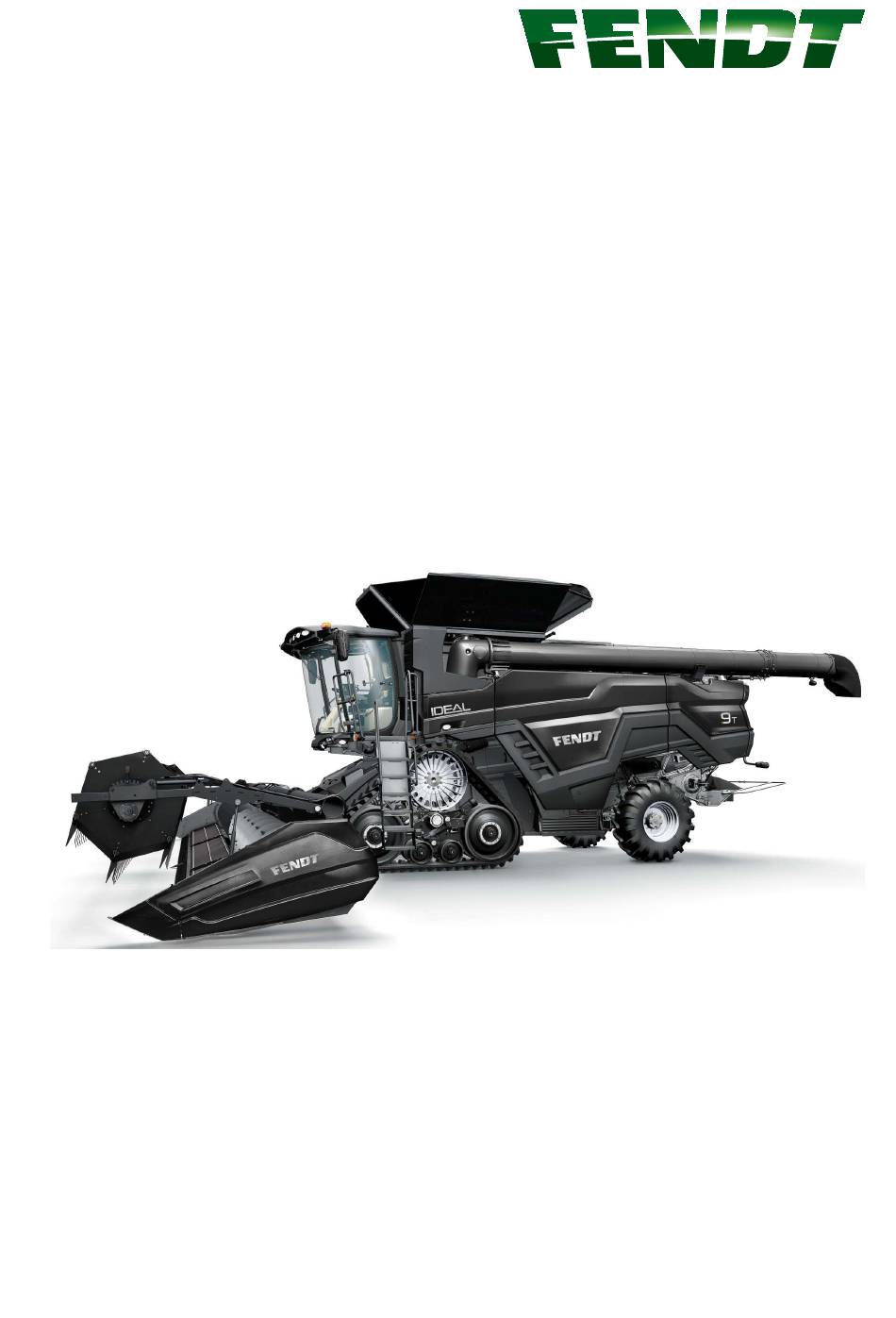

- Page 1 IDEAL 8 IDEAL 8PL IDEAL 8T IDEAL 9 IDEAL 9PL IDEAL 9T Breganze AGCO S.p.A. - Via F. Laverda, 15/17 - 36042 June 2019 BREGANZE (VI) – Italy. 79037318C FENDT is a worldwide brand of AGCO © AGCO 2019 English...
- Page 2 Find manuals at https://best-manuals.com...
- Page 3 TABLE OF CONTENT General Engine, fuel and exhaust system Drive train system Brake system Axles Hydraulic system Electrical system Air conditioning and heating system Feeding system Threshing system Grain tank and elevator system Discharge system Fault codes Diagrams Index Find manuals at https://best-manuals.com...
-
Page 4: Table Of Contents
Fire prevention and first aid ......... . . 1-27 IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com... - Page 5 Emergency exit ........... . 1-50 IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com...
- Page 6 Wheel torque specifications ......... . . 1-75 IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com...
- Page 7 Table of contents IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com...
-
Page 8: General Information
Use leak proof containers when draining fluids. Do not use food or beverage containers to collect waste fluids, as food or beverage container(s) may mislead someone into drinking from them. IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com... -
Page 9: Shield Care
To prevent scratching the shield surface follow these processes: • Use a soft cloth. • Whip in a smooth movement. Do not clean aggressively. • Dry the surface with compressed air. IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com... -
Page 10: Machine Identification
Serial numbers identify the machine and are important if servicing or repair parts are necessary. The machine serial number plate (1) is below the cab on the right side. HVJHE0110119301 Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/serial number plate.svg HVJHE0110119201 GUID-4A97FE30-7D29-4FE4-AC81-BD3F48656A70-low.svg [Low] Fig. 1 IDEAL Series Combine 79037318C Find manuals at https://best-manuals.com... -
Page 11: Serial Number Plate - Ce (Safety Plate)
HVJHE0110161901 Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/New folder/homologation plate.svg HVJHE0110161001 GUID-1239311B-E6FD-4CC2-B4F8-55BBA7D31079-low.svg [Low] Fig. 2 GUID-A6B64463-F4FF-44CC-A9C2-30D809DE1BC7 [V1] 1.2.3 Serial number plate - EAC Serial numbers identify the machine and are important if servicing or repair parts are necessary. IDEAL Series Combine 79037318C... -
Page 12: Serial Number Description
Plant code Brand (G=AGCO) Progressive unit number Machine description End symbol Check letter GUID-B4619570-1106-41B3-A791-CA1B83270224 [V2] 1.2.5 Terminal software information The machine identification and terminal software information are on the maintenance screen. Select the icons in this order: IDEAL Series Combine 79037318C... -
Page 13: Ap 9.8L Engine Plate
The engine serial number is stamped on the cylinder block as the picture shows. The serial number is also marked on the type plate. Location of the engine serial number in: • 84 engines • 98 engines 66/74 KLD011001 KLD011001 66/74 66/74 84/98 GUID-97CD79BA-FB04-4739-8A05-42332E9157DE-low.svg [Low] Fig. 6 1-10 IDEAL Series Combine 79037318C... -
Page 14: Contents Of The Engine Type Plate
GUID-0A46E187-39D2-4E26-ADC1-6BD9BCBFC7D9 [V1] 1.2.7.1 Engine serial number The engine serial number is on the engine data plate (1) located on the engine above the flywheel. HVJHE0110113601 GUID-5A6E1E5F-6A45-4346-9B9A-5416D7C3502A-low.svg [Low] Fig. 9 Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/MAN engine label.svg IDEAL Series Combine 1-11 79037318C... -
Page 15: Additional Identification
• Max permitted mass on the axles • Towing maximum admissible mass GUID-8AAB90FD-3B02-4F4C-AE60-BCB6A0EF9916-high.jpg [High] Fig. 10 GUID-2E8A0B84-7CCE-47BF-BEAC-8E51C7FD5CAF [V2] 1.2.8.2 Homologation plate - France The machine homologation plate (1) is below the cab on the right side. 1-12 IDEAL Series Combine 79037318C... -
Page 16: Combine Identification
HVJHE0110160801 GUID-88BBF122-BB87-4078-B0DB-2B96ECD43DD7-low.svg [Low] Fig. 11 GUID-69F7340A-843C-4DF8-81B2-2887CB13EDF4 [V2] 1.2.8.3 Combine identification The machine type and VIN (vehicle identification number)(1) show on the right rear side of the frame near the rear axle. GUID-1A575090-3399-45C4-903E-579FE0FCBED0-high.jpg [High] Fig. 12 IDEAL Series Combine 1-13 79037318C... -
Page 17: Ls Pump Identification
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/New folder/701 plate.svg GUID-1FB8AEB7-A5D5-4057-85CA-FEB658D5C209 [V1] 1.2.8.6 Ground drive transmission identification The identification plate (1) is on the front of the ground drive transmission. HVJHE0110155801 GUID-FDDD8436-BABE-4984-B66B-5120A98C1E11-low.svg [Low] Fig. 15 Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/New folder/801 plate.svg 1-14 IDEAL Series Combine 79037318C... -
Page 18: Trailer Hitch Identification (If Equipped)
GUID-0A9F964F-BB88-4CAE-8279-CD924FACE100-high.jpg [High] Fig. 16 CUNA trailer hitch The identification plate (1) is located on the right- hand side. NOTE: This type of hitch is only used in the Italian market. GUID-2FE79144-45F7-4394-8E3D-B914BA0FB71E-high.jpg [High] Fig. 17 IDEAL Series Combine 1-15 79037318C... -
Page 19: Safety
Pay particular attention to these warnings. CAUTION: Indicates a potentially dangerous situation. If not avoided, it may result in minor injuries. WARNING: Indicates a potentially dangerous situation. If not avoided, it may result in serious injuries. 1-16 IDEAL Series Combine 79037318C... -
Page 20: Safety Signs
The safety section also suggests possible ways to deal with these situations. The safety section does not replace safety practices in other parts of this service manual. Practice good safety to help prevent injury or death. IDEAL Series Combine 1-17 79037318C... -
Page 21: The Service Manual
Make sure that the machine is in the good mechanical condition. Make sure that the machine has the correct equipment as necessary by local regulations. All equipment has a limit. Make sure you understand the speed, brakes, steering, stability, and load characteristics of this equipment before you start. 1-18 IDEAL Series Combine 79037318C... -
Page 22: General Information
Never suddenly reverse the wheels to stop or back Where possible avoid operating the machine near ditches, embankments, and holes. Reduce ground speed when operating on rough, slippery, or muddy surfaces and when turning or crossing slopes. IDEAL Series Combine 1-19 79037318C... -
Page 23: Emergency Situations
1.3.10 Emergency exit A hammer for emergency exit is above the right control console. The hammer is to break the right side glass to let you exit the cab in an emergency. GUID-C206E9C5-9BBD-4B1C-BB42-D598C1923685-high.jpg [High] Fig. 24 1-20 IDEAL Series Combine 79037318C... -
Page 24: Seat Instructions
Take into consideration that all threshing mechanisms continue rotating after the engine has stopped for about 50 seconds. All shields and guards must be in the correct position and in good condition. Keep away from the components that rotate. IDEAL Series Combine 1-21 79037318C... -
Page 25: Exhaust Warning
Stay away from the machine during operation. Some materials can be thrown from the machine during operation and cause injury. GUID-1D480E10-339B-427D-9D05-37E84CC7A29A-high.jpg [High] Fig. 29 1-22 IDEAL Series Combine 79037318C... -
Page 26: Handrails
Fig. 31 GUID-FEB5D033-FD5F-4B57-8673-CEDFC85B6DA6 [V2] 1.3.18 Grain tank safety WARNING: Shafts that turn can cause entanglement Serious injury and death can occur Stay out of the grain tank if the engine is on. GUID-A6399ED5-1959-49D1-8FA9-5F7C93B15623-high.jpg [High] Fig. 32 IDEAL Series Combine 1-23 79037318C... -
Page 27: Straw Chopper, Chaff Spreader, And Straw Spreader Safety
Be aware of the overall width, length, height, and weight of the machine. Be careful when transporting the machine on narrow roads and across narrow bridges. 1-24 IDEAL Series Combine 79037318C... -
Page 28: General Maintenance Information
Make sure that electrical connectors are clean before you connect them. Do a check for loose, broken, missing, or damaged parts. Make sure that the machine is in good repair. Make sure that all guards and shields are in position. IDEAL Series Combine 1-25 79037318C... - Page 29 GUID-CEB32148-1F4C-457C-ADF7-595DFC51AC25-high.jpg [High] Fig. 37 Remove spilled oil, antifreeze or fuel immediately from the steps, platform, and other access areas. Keep all access areas clean of unwanted materials. GUID-3B306DB1-0777-4FA6-86F1-895652B4C1DB-high.jpg [High] Fig. 38 1-26 IDEAL Series Combine 79037318C...
-
Page 30: Fire Prevention And First Aid
If fire occurs, move upwind and away from the smoke from the fire. GUID-8FDCA67C-244A-40BA-967B-3FA4E7667A7E-high.jpg [High] Fig. 40 IDEAL Series Combine 1-27 79037318C... -
Page 31: High Pressure Leaks
Do not bypass the neutral start system. The neutral start system will not let the engine start if the machine is in gear. Manual override of this system can cause death and injury. GUID-659CF64E-3CC7-4919-BCEF-22F1A0BD681F-high.jpg [High] Fig. 43 1-28 IDEAL Series Combine 79037318C... - Page 32 Know that the surfaces in and around the engine compartment will be hot if the engine has operated. Always let parts that contain hot fluid or become gases cool to the touch before you handle or disconnect them. GUID-81A39ABC-001C-4617-A089-FC6F702EF934-high.jpg [High] Fig. 46 IDEAL Series Combine 1-29 79037318C...
-
Page 33: Fuel Safety
(supply tank, transfer pump, hose, nozzle, and others), as specified by the fuel or fuel system supplier. GUID-E707838B-F5D5-48F0-BF75-34B264F6453D-high.jpg [High] Fig. 49 1-30 IDEAL Series Combine 79037318C... -
Page 34: Battery Safety
If battery fluids touch your eyes, flush with water for 15 minutes and get medical treatment immediately. If swallowed, drink large quantities of water or milk. Do not induce vomiting. Get medical treatment immediately. GUID-6942F6BB-021E-47D8-8B36-8FB6CB6088DB-high.jpg [High] Fig. 51 IDEAL Series Combine 1-31 79037318C... -
Page 35: Accumulator Safety
1.3.29 Proper disposal of waste When necessary, discard waste in a legal way. Refer to local regulations. More information is available from your dealership. Do not discard products with this symbol in the regular garbage. GUID-6270869C-F29F-4A96-B81D-F30F41714A13-high.jpg [High] Fig. 54 1-32 IDEAL Series Combine 79037318C... -
Page 36: Safety And Informational Signs
Observe the country-specific regulations. Observe the regulations issued by the local authorities in charge. GUID-B5EA91FD-1232-4C15-A643-9085C181BFCD [V2] 1.3.30 Safety and informational signs CONCEPT_A5ABC0B9BB324C3DBDD1594C303631C9 [V] 1.3.30.1 Decal locations GUID-6BB105B7-DEE7-4165-B6F1-D4B92C8CB906-high.jpg [High] Fig. 56 The left side of the machine IDEAL Series Combine 1-33 79037318C... - Page 37 1. General GUID-757A24A2-2BB3-4198-9511-90646E4671C6-high.jpg [High] Fig. 57 The right side of the machine GUID-FD8FB86F-F695-4BD9-A7F5-D0EADF087870-high.jpg [High] Fig. 58 The front of the machine 1-34 IDEAL Series Combine 79037318C...
-
Page 38: Lubrication Points, Right Side
1. General GUID-058ABC97-28DE-460E-A7E6-37CA05EBC24D-high.jpg [High] Fig. 59 The rear of the machine GUID-6613B77E-2396-491A-B13E-81B5AB7D0523 [V1] 1.3.30.2 Lubrication points, right side GUID-894A2C1B-DC6F-45A6-99AA-729FF215B355-high.jpg [High] Fig. 60 Lubrication points on the right side of machine and hours of operation between lubrication. IDEAL Series Combine 1-35 79037318C... -
Page 39: Lubrication Points, Left Side
1.3.30.4 Break Glass - Exit Break glass - Exit Break glass in case of an emergency exit. Exit cab. GUID-2216EA63-D26D-4CD6-BF05-EC62BD648FD9 [V1] 1.3.30.5 Lift point Lift point The lift symbol identifies an approved lift point on the machine. 1-36 IDEAL Series Combine 79037318C... -
Page 40: Tow Point
Wait for all machine components to stop before you open a shield or do maintenance and repairs. GUID-1DF65E57-E8D2-4ECB-AC02-74934A65638F [V1] 1.3.30.9 Tiedown point Tiedown point The tiedown symbol identifies an approved tiedown point on the machine. IDEAL Series Combine 1-37 79037318C... -
Page 41: Power Off Delay
24 volt power supply. Explosion hazard can occur causing serious injury or death. GUID-FC0D3A78-15DB-48A6-96E7-A54B69651E4F [V1] 1.3.30.12 Battery disconnect Battery disconnect Battery disconnect switch. GUID-12D89C05-6FF5-4D13-ADE5-1AA3C9A16716 [V1] 1.3.30.13 Battery negative terminal Battery negative terminal Negative terminal for the electrical system. 1-38 IDEAL Series Combine 79037318C... -
Page 42: 120W
Lift the telescopic deck handrail and turn clockwise to lower back into the stowed position. GUID-8DF87133-A208-4EE0-8AA0-39F57D473BCD [V1] 1.3.30.17 Unloader drive Unloader drive Leave a 1 mm to 2 mm space between the nut and unloader drive hub. IDEAL Series Combine 1-39 79037318C... -
Page 43: Safety Alert - Fire Extinguisher
Do not remove the radiator cap before you: 1. Remove the key and take it with you. 2. Read the manual for the correct procedure. 3. Let the radiator become cool. 4. Then, remove the radiator cap. 1-40 IDEAL Series Combine 79037318C... -
Page 44: Burn Hazard - Hot Surface
1.3.30.24 Jack point Jack point Shows the location to put a jack CMGHE0110211501 Original art: /m/TECHNICL/_MASSEY/Hesston/OpMan/2370 UHD LSB/Information/Decals/700745037_rev1.pdf GUID-EE5948EB-B63C-4305-BF77-40BC653EC654 [V1] 1.3.30.25 No step No step The no step symbol identifies a location where you must not walk. IDEAL Series Combine 1-41 79037318C... -
Page 45: Lug Nut Torque, Front Wheels
NOTE: Do not lubricate the threads of the bolts or the threads of the nuts. GUID-960D4FCE-9CD0-49B8-84B5-ADF403CFBE8A [V1] 1.3.30.28 Diesel exhaust fluid Diesel exhaust fluid Diesel exhaust fluid only. Do not add diesel or water. 1-42 IDEAL Series Combine 79037318C... -
Page 46: Ultra Low Sulfur Diesel
GUID-50EB40AC-D6ED-45EF-81F5-A11A9903FFDF [V1] 1.3.30.32 Warning - Crushing hazard Warning - Crushing hazard Whole body crushing hazard - header drop. Install cylinder stop before going under the feed house or header. IDEAL Series Combine 1-43 79037318C... -
Page 47: Warning - Crushing Hazard
GUID-C4D44B67-31CB-4507-B747-BA2F5AF8A0DD [V1] 1.3.30.36 Fall hazard Fall hazard Fall hazard Do not climb or ride on machine when the machine is in operation or in motion. 1-44 IDEAL Series Combine 79037318C... -
Page 48: Warning - Shut Off Engine
Operators manual General safety alert. Read and understand the Operator's Manual before operating the machine. GUID-50AB8021-49F2-4EFA-9540-588D55402352 [V1] 1.3.30.40 Danger - Electrical hazard Danger - Electrical hazard Electrical shock/electrocution hazard. Keep clear of overhead electrical powerlines. IDEAL Series Combine 1-45 79037318C... -
Page 49: Warning - Autoguide On Public Roads
When the machine is not in use, the wheel chocks must be in position. GUID-774AFF39-E2FB-49AC-8604-BB3C5B5550F5 [V2] 1.3.30.44 Warning - Seat belt Warning - Seat belt Each person in the machine must correctly wear a seat belt before the machine operates. 1-46 IDEAL Series Combine 79037318C... -
Page 50: Reflector Location
1. General GUID-5C1AA222-1D5B-44E6-9896-5C99B3E2521C [V1] 1.3.30.45 Reflector location GUID-C2F033D2-4D06-4DB5-859E-255700E83578-high.jpg [High] Fig. 62 EU - Front White and red reflector GUID-B9F4DC90-1D06-4FCE-B532-4C4E534CFDE9-high.jpg [High] Fig. 63 EU - Rear White and red reflector IDEAL Series Combine 1-47 79037318C... - Page 51 1. General GUID-BEFCEC25-4C55-40AF-936D-B636B7D25EF8-high.jpg [High] Fig. 64 France and Germany - Right Orange reflector GUID-BF3E59E1-ADA2-4162-99DC-4F7CC2D37516-high.jpg [High] Fig. 65 France and Germany - Left Orange reflector 1-48 IDEAL Series Combine 79037318C...
- Page 52 1. General GUID-9E74C501-38FE-4064-A28A-913914800046-high.jpg [High] Fig. 66 North America and South America - Front Yellow reflector GUID-6678061E-E44C-45EC-AF02-6B31D9F1A30C-high.jpg [High] Fig. 67 North America and South America - Rear Red reflector Red-orange reflector Slow moving vehicle sign IDEAL Series Combine 1-49 79037318C...
-
Page 53: Reflector Yellow
1.3.31 Emergency exit A hammer for emergency exit is above the right control console. The hammer is to break the right side glass to let you exit the cab in an emergency. GUID-C206E9C5-9BBD-4B1C-BB42-D598C1923685-high.jpg [High] Fig. 68 1-50 IDEAL Series Combine 79037318C... -
Page 54: Seat Belts
DANGER: Machine electrical shock and electrocution hazard. Personal injury or death can occur. Keep the machine clear of overhead electrical power lines. CAUTION: Lower the rail when the rail is not in use. IDEAL Series Combine 1-51 79037318C... - Page 55 There are fall protection rails (1) on each side of Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails cab entry platform rail.svg the ladder. HVJHE0110181001 GUID-52F79676-84A4-4FB2-B75F-C420975BD133-low.svg [Low] Fig. 73 Original art: /s/Creo Illustrate/Images/Chris/Opus/IDEAL/IDEAL fall protection rails ladder.svg 1-52 IDEAL Series Combine 79037318C...
-
Page 56: Engage The Feeder House Cylinder Stop
Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg GUID-219927E8-46C7-4EFC-A332-93A5EB566666 [V2] 1.3.35 Disengage the feeder house cylinder stop Procedure Lift the cylinder stop (2) until the clip (1) latches. HVJHE0110027401 GUID-33782DBE-F625-4789-AE04-F1BC171EC066-low.svg [Low] Fig. 75 Original art: /s/Creo Illustrate/Images/Josh/OPUS/1-18/cylinder stop.svg IDEAL Series Combine 1-53 79037318C... -
Page 57: Shield Tool
Never operate the machine when it is manually inclined on flat ground, as the engine lubrication may be inadequate. Do a check of the tire pressure. Insufficient pressure endangers tire integrity and has potentially serious consequences. Activate the road transport switch before the machine is driven on public roads. 1-54 IDEAL Series Combine 79037318C... -
Page 58: Reverse Alarm
The noise level is measured while the combine is stopped, the engine running at max. speed, the threshing units engaged usual operating speed for this specific purpose, without crop in the tank and with the cab doors closed. IDEAL Series Combine 1-55 79037318C... -
Page 59: Vibrations In The Cab
2. The max. power (Watt) of the additional equipment must not exceed the limits set by the national authorities. 3. The electromagnetic field emitted by the electronic components of the machine must not exceed the max. limit of 24 V/m. 1-56 IDEAL Series Combine 79037318C... -
Page 60: Statutory Regulations
Any supplementary local regulations must be complied with. Fire resistance inside the cab All non-metal parts inside the operator cab comply with ISO 3795 requirements. IDEAL Series Combine 1-57 79037318C... -
Page 61: Specifications
Center of rear wheel to end of 3320 mm (130.7 in) 7 .6 m (25 ft) unloading auger Center of rear wheel to hitch 1180 mm (46.5 in) Center of hitch pin to ground 600 mm (23.6 in) 1-58 IDEAL Series Combine 79037318C... - Page 62 3290 mm (129.5 in) 762.0 mm (30.0 in) 3490 mm (137 .4 in) 914.4 mm (36.0 in) 3790 mm (149.2 in) Tread width, rear tires 2270 mm to 3170 mm (89.4 in to 124.8 in) IDEAL Series Combine 1-59 79037318C...
-
Page 63: Mass (Weight)
10 165 kg (24 410 lbs) 11 045 kg (24 350lbs) 13 850 kg (30 534 lbs) Rear 10 205 kg (22 498 lbs) 13 850 kg (30 354 lbs) 10 150 kg (22 377 lbs) 1-60 IDEAL Series Combine 79037318C... -
Page 64: Tire Specifications
• Trailer with inertia brakes: 6000 kg - maximum vertical load 200 kg GUID-3EBB5789-2AAF-4DE7-B390-3ECB4AF6FCD8 [V2] 1.4.3 Tire specifications Use the maximum tire pressure allowed by the tire manufacturer. The specifications in this section are approximate and can vary depending on the machine type and harvesting conditions. IDEAL Series Combine 1-61 79037318C... - Page 65 9000 kg (19842 DW30Bx3 50 mm 3680 mm (30754 lbs) lbs) (2.0 in) (144.9 in) 1000/55 188A8 15500 kg 10000 kg 36.00x32 25 mm 4000 mm (34172 lbs) (22046 lbs) (1.0 in) (157 .5 in) 1-62 IDEAL Series Combine 79037318C...
- Page 66 800/70 R38 900/60 R38 NOTE: X = only possible combination Tracks - front Size Index radius Max width 26 inch 3290 mm (144.9 in) 30 inch 3490 mm (144.9 in) 36 inch 3790 mm (149.2 in) IDEAL Series Combine 1-63 79037318C...
-
Page 67: Engine Specifications
1930 Firing order 1-2-4-6-7-5-3 1-5-3-6-2-4 1-5-3-6-2-4 Number of cylinders Bore 111 mm (4.37 in) 126 mm (4.96 in) 138 mm (5.43 in) Stroke 145 mm (5.71 in) 166 mm (6.54 in) 170 mm (6.69 in) 1-64 IDEAL Series Combine 79037318C... -
Page 68: Lubrication Specifications
Engine coolant type AGCO Si-OAT Extended Life Coolant GUID-9D7877A9-80BE-4801-8651-94A9331EBC58 [V4] 1.4.5 Lubrication specifications AGCO Genuine Lubricants are the recommended products for this machine. The use of other lubricants may not give the same level of necessary performance. IDEAL Series Combine 1-65 79037318C... - Page 69 40.0 L (42.3 qt) Type AGCO MultiGuard Synthetic 10W-40 CK-4 (MAN M3775) or ACEA E9 Type - EME Fendt Premimum Fendt High Performance Grade 5W-30 Grade 10W-40 AGCO Parts High Performance Oil 5W-30 AGCO Parts Premium Engine Oil 15W-40 Hydraulic oil...
- Page 70 IDEAL 9 Quantity - 3.3M 3.3 L (3.5 qt) Quantity - 100KW 1.7 L (1.8 qt) Quantity - 135KW 3.3 L (3.5 qt) Quantity - 220KW 4.5 L (4.8 qt) Type SAE 75W-90 synthetic gear oil IDEAL Series Combine 1-67 79037318C...
-
Page 71: Machine System Specifications
IDEAL 8 IDEAL 9 Quantity 11 L (11.6 qt) Type AGCO SAE 80W-90 gear oil Type - EME Fendt Super Trans 85W-90 AGCO Parts Axle Oil LS 80W-90 Final drives - tracks IDEAL 7 IDEAL 8 IDEAL 9 Quantity 5 L (5.3 qt) - Page 72 500 mm (19.7 in) 2000 mm (78.7 in) (45 ft) header Reach with 15.2 m <250 mm (9.8 in) 1250 mm (49.2 in) (50 ft) header Reach with 16.8 m 500 mm (19.7 in) (55 ft) header IDEAL Series Combine 1-69 79037318C...
-
Page 73: Cab Specifications
6.1 m² (66 ft²) Width 1.6 m (63 in) Mirrors IDEAL 7 IDEAL 8 IDEAL 9 Left hand rear view Convex Right hand rear view Front tire auxilary left hand Front tire auxilary left hand 1-70 IDEAL Series Combine 79037318C... -
Page 74: Electrical Specifications
One LED lamp on the forward grain tank extension Unloader One LED lamp forward of the unloader chute Entry / Egress lamps Six LED lamps on the cab ladder / stairs Portable work lamp, cordless One lamp on the entry platform IDEAL Series Combine 1-71 79037318C... -
Page 75: Hydraulic System Specifications
80 mm (3.1 in) Stroke 310 mm (12.2 in) Unloading auger cylinder IDEAL 7 IDEAL 8 IDEAL 9 Piston diameter 170 mm (6.7 in) Closed length 692 mm (27 .2 in) Stroke 205 mm (8.1 in) 1-72 IDEAL Series Combine 79037318C... -
Page 76: Climate Control Specifications
Output shaft Splined shaft B50x45 per DIN 5482, 24 teeth, module 2, 30° pressure angle Field gear ratio 42/20 to 1 Road gear ratio 27/35 to 1 Differential gear ratio 66/19 to 1 64/21 to 1 IDEAL Series Combine 1-73 79037318C... -
Page 77: Steering Specifications
IDEAL 7 IDEAL 8 IDEAL 9 Standard axle 3.3 m to 3.9 m (130 in to 154 in) Optional axle 3.3 m to 3.9 m (130 in to 154 in) Adjustment increments 150 mm (6 in) 1-74 IDEAL Series Combine 79037318C... -
Page 78: Brake Specifications
900 Nm (665 lbf ft) Rear wheels IDEAL 7 IDEAL 8 IDEAL 9 Standard rear axle (wheel 750 Nm (550 lbf ft) to hub) Rear wheel assist axle 750 Nm (550 lbf ft) (wheel to drive motor flange) IDEAL Series Combine 1-75 79037318C... - Page 79 1. General 1-76 IDEAL Series Combine 79037318C...
- Page 80 Engine construction ..........2-47 IDEAL Series Combine...
