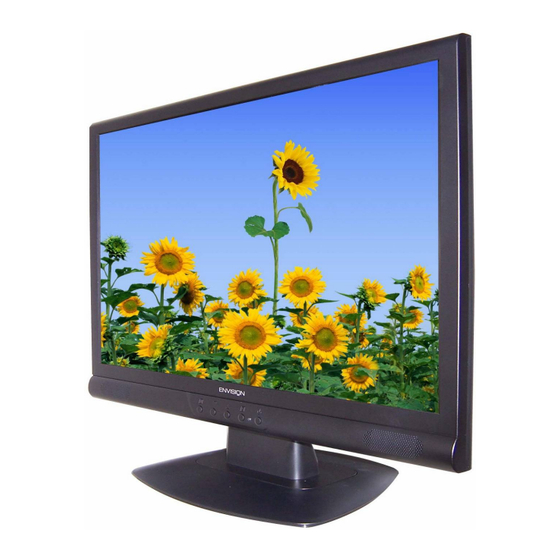

Envision H22W Specifications

H22W
Cabinet Color
Panel
Pixel Pitch
Display Area
Brightness
Contrast Ratio
Response Time
Viewing Angle
Compatibility
Scanning Frequency
Pixel Frequency
Maximum Resolution
Recommended Resolution
Resolutions Supported
Color
Signal Input
Connectors
Power Source
Power Consumption
Plug & Play
EPA ENERGY STAR®
User Control
OSD Function
OSD Languages
Regulations
Other Features
Dimensions (WxHxD mm)
Dimensions (WxHxD inches)
Monitor Dimensions w/o Base (WxHxD)
Weight
Loading Qty w/pallet
UPC Code
Note: Specifications are subject to change without notice. *Wall mount arm & bracket not included. 9/07
Black
TFT Active Matrix LCD
22" Widescreen, Diagonal
548.6mm Viewable Image Size
Hard Coating (3H), Anti-glare Treatment
0.277mm x 0.277mm
465mm x 291mm
300 cd/m2 (typ)
1000:1 (typ)
5ms (typ)
Horizontal: 170 Degrees (CR>10)
Vertical: 160 Degrees (CR>10)
VESA, WSXGA+, WXGA+, SXGA, XGA, SVGA,VGA
Mac® Equipped With Analog VGA Dsub or DVI Port
Horizontal: 30K~80KHz
Vertical: 50~75 Hz
146MHz
1680x1050x60Hz
1680x1050@60Hz
720x400@70Hz, 640x480@60, 67, 75Hz
800x600@56, 60, 72, 75Hz, 848x480@60Hz
1024x768@60, 70, 75Hz, 1152x864@75Hz
1280x720@60Hz, 1280x960@60Hz, 1280x768@60, 75Hz
1280x1024@60, 75Hz, 1360x768@60Hz, 1440x900@60, 75Hz
1440x900@60, 75Hz, 1680x1050@60Hz
16M
Video: 0.7Vp-p, RGB Analog
Separate Sync: TTL Level
H/V Sync: Positive / Negative
Analog RGB Signal: 15-pin D-sub Male
Power: (3-Pin Plug CEE22)
Universal 90~264VAC, 50/60Hz
55Watts (Max)
DDC2B
Yes
Menu, Down/Brightness, Up/Contrast, Confirm, Power On/Off
Auto Adjust, Contrast, Brightness, Color Adjust (9300K, 6500K, 5400K,
User Color), Information, Image Adjust (H/V Position, H-Size, Fine Tune,
Sharpness), Setup (Language, Resolution Notice, OSD Setup), Recall
English, French, Spanish
cULus, FCC, ROHS
VESA 100mm Wall Mount Compliant*, Kensington Security Slot
Monitor: 518x430x240(77 w/o base); Carton 565x522x150
Monitor: 20.4x16.9x9.4(3.0 w/o base); Carton 22.2x20.6x5.9
518x368x77mm; 20.4x14.5x3.0 inches
13.2 lbs (6.0 kgs) Net, 12.2 lbs (5.5 kgs) w/o base
17.6 lbs (8.0 kgs) Gross
20' = 544 pcs.; 40' Std = 1168 pcs.
685417104581
