Visonic RP-600 PG2 Installation Instructions

RP-600 PG2
Wireless Repeater for PowerG Systems
1. INTRODUCTION 1. INTRODUCTION
1. INTRODUCTION 1. INTRODUCTION
The RP-600 PG2 is a range extender designed to relay digital data
between wireless PowerG control panel devices and a PowerG
control panel. Repeater links are required when the control panel is
beyond the range of at least some of the devices and is therefore
incapable of receiving transmissions directly (see Figure 3).
2 2 2 2 . . . . INSTALLATION INSTALLATION
INSTALLATION INSTALLATION
2.1 Repeater's Location Selection
A. In a repeater setup,
communication is assured with the target receiver and with the
transmitters deployed in the repeater's coverage area.
2
1
2.2 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES
A general description of the procedure is provided in the following flow chart.
Step 1
Enter the Installer menu and
select "02:ZONES/DEVICES"
02.ZONES/DEVICES
means scroll and select
D-302415 RP-600 PG2 Installation Instructions
install the repeater where
A
(*)
3
C
5
Step 2
Select "ADD NEW DEVICE" Option
ADD NEW DEVICES
MODIFY DEVICES
B. Mount the repeater as high as possible above the floor and well
away from metal chimneys, large metal cabinets, metal doors and
good
reinforced concrete walls, all of which may reduce the
communication range.
C. Make sure that the location you have selected is near an electrical
outlet.
4
A
6
Figure 2: Installation
02:ZONES/DEVICES" option of the Installer Menu.
02:ZONES/DEVICES 02:ZONES/DEVICES
Step 3
Enroll the device or enter the
device ID
ENROLL NOW or
ENTR ID:XXX-XXXX
Installation Instructions

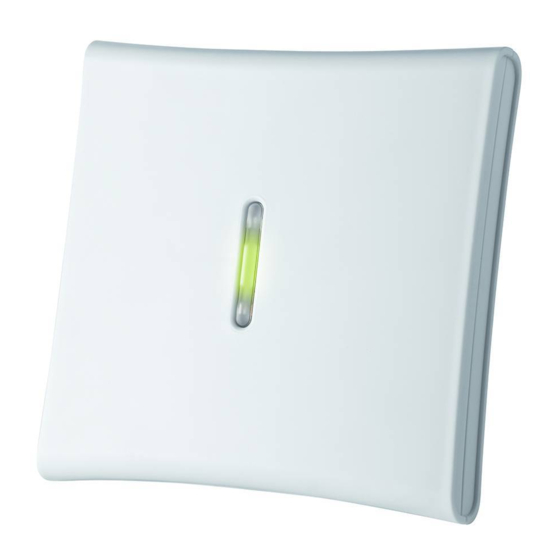

Figure 1. External View
A. Mounting surface.
B. For back tamper screw.
A
C. AC to AC adaptor.
Attention! For Europe, the
transformer has to be CE
compliant and power
limited.
Note: The manufacturer of the
transformer is ORIENTAL
HERO, model no. OH-35048AT
B
rated 8.6VAC 0.33A. For UL
installations (UL) the plug-in
transformer must have
restraining means. For Canada
(CUL), it cannot have restraining
means.
Step 4
Select the desired Zone Number
RP04:Repeater
ID No. 430-XXXX
1
