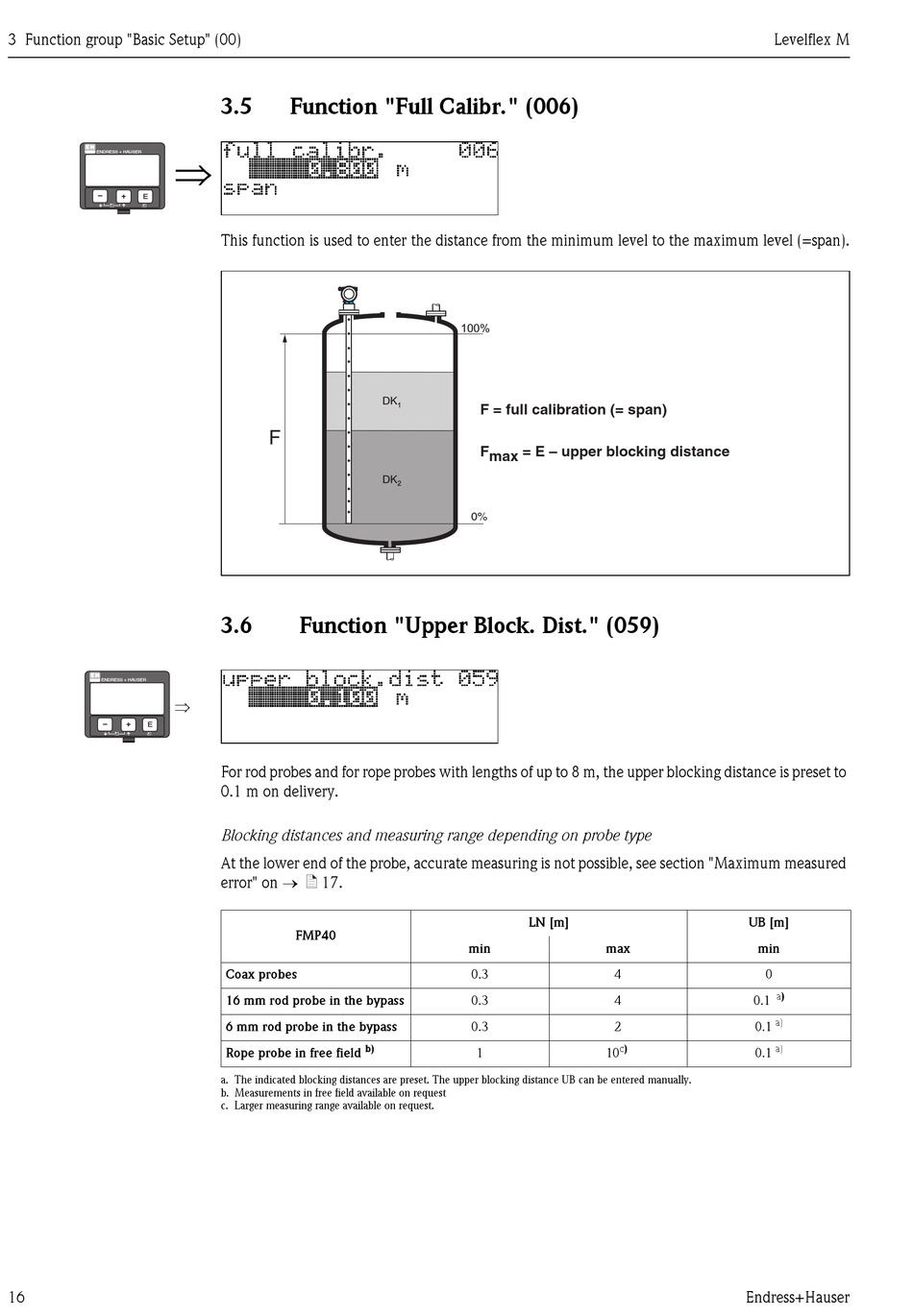

Function "Full Calibr." (006)

This function is used to enter the distance from the minimum level to the maximum level (=span).
DK
F
DK
3.6

Function "Upper Block. Dist." (059)

For rod probes and for rope probes with lengths of up to 8 m, the upper blocking distance is preset to
0.1 m on delivery.
Blocking distances and measuring range depending on probe type
At the lower end of the probe, accurate measuring is not possible, see section "Maximum measured
error" on → ä 17.
FMP40
Coax probes
16 mm rod probe in the bypass
6 mm rod probe in the bypass
b)
Rope probe in free field
a. The indicated blocking distances are preset. The upper blocking distance UB can be entered manually.
b. Measurements in free field available on request
c. Larger measuring range available on request.
100%
1
F = full calibration (= span)
F max = E – upper blocking distance
2
0%
LN [m]
min
0.3
0.3
0.3
1
Levelflex M
UB [m]
max min
4 0
a)
4 0.1
a)
2 0.1
c) a)
10 0.1
