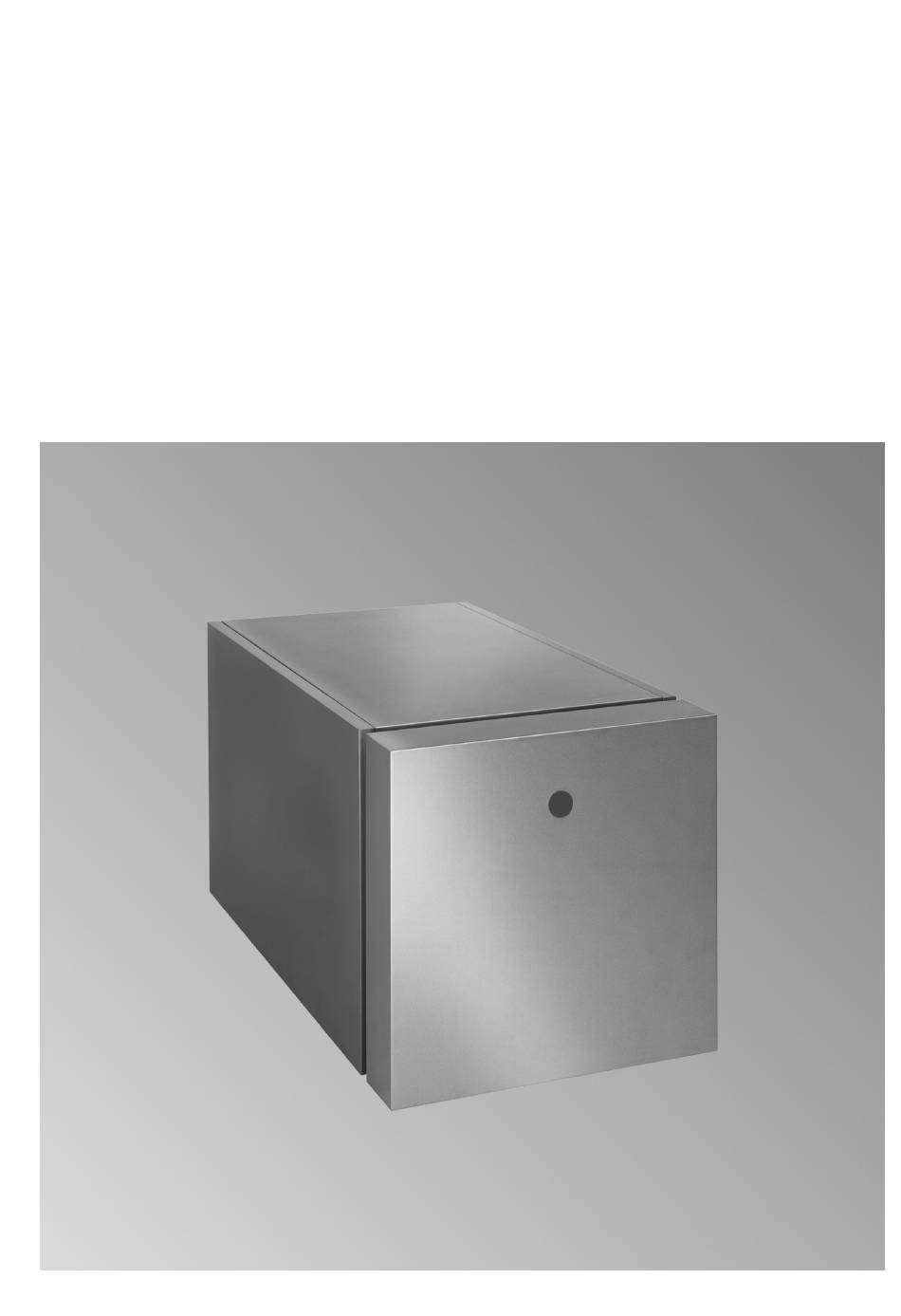

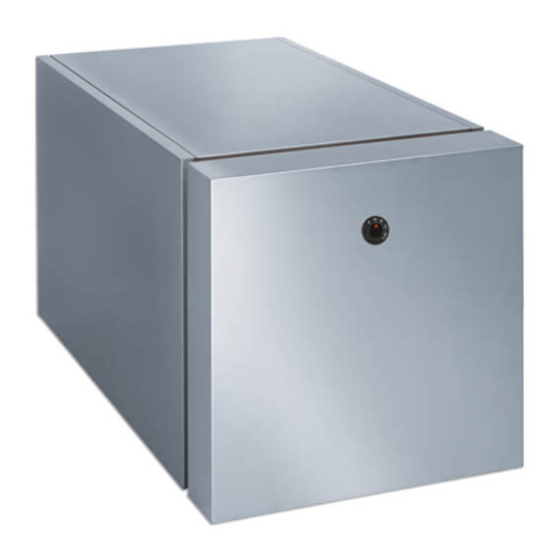

- Page 1 VIESMANN Service instructions for contractors Vitocell 100-H Type CHA DHW cylinder 130 to 200 l VITOCELL 100-H Please keep safe. 5677319 GB 9/2019...
-
Page 2: Safety Instructions
Safety instructions Safety instructions Please follow these safety instruc- tions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk Details identified by the word "Note" of injury. contain additional information. Please note This symbol warns against the risk of material losses and environmen- tal pollution. -
Page 3: Repair Work
Please note Repairing components that fulfil a safety function can compromise the safe operation of the system. Replace faulty components only with genuine Viessmann spare parts. Auxiliary components, spare and wearing parts Please note Spare and wearing parts that have... - Page 4 Index Index Information Symbols ....................Intended use ..................Product information ................Inspection and maintenance ..............System examples .................. Spare parts lists ..................Commissioning, inspec- Steps - commissioning, inspection and maintenance ......tion, maintenance Commissioning/service ........................ 11 reports Specification ........................ 12 Appendix Final decommissioning and disposal .............
-
Page 5: Intended Use
Information Symbols The steps in connection with commissioning, inspec- Symbol Meaning tion and maintenance are found in the "Commission- Reference to other document containing ing, inspection and maintenance" section and identified further information as follows: Step in a diagram: Symbol Meaning The numbers correspond to the order in Steps required during commissioning... -
Page 6: Inspection And Maintenance
(see page 8). System examples Available system examples: See www.viessmann- schemes.com. Spare parts lists Information about spare parts can be found on the... - Page 7 Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance Commissioning steps Inspection steps Maintenance steps Page • 1. Filling the DHW cylinder...................... • • 2. Shutting down the system • • 3. Checking the safety valve function • • 4. Checking the anode earth current with an anode tester..........•...
-
Page 8: Shutting Down The System
Commissioning, inspection, maintenance Filling the DHW cylinder 1. Fill the DHW cylinder on the DHW side. 2. Check the fittings on the heating water and DHW sides for leaks and tighten if required. Note If the DHW cylinder is pressurised, tighten the 3. -
Page 9: Commissioning, Inspection, Maintenance
Commissioning, inspection, maintenance Cleaning the inside of the DHW cylinder (cont.) 4. Remove loose deposits with a pressure cleaner. Please note Pointed or sharp cleaning tools will damage the cylinder interior. Only use plastic cleaning equipment to clean the inside. 5. -
Page 10: Instructing The System User
Commissioning, inspection, maintenance Returning the DHW cylinder to use 1. Reconnect the DHW cylinder to the pipework. 2. Insert new gaskets underneath flange cover 3. Fit flange cover with earth cable and tighten the screws with a maximum torque of 25 Nm. 4. -
Page 11: Commissioning/Service Reports
Commissioning/service reports Commissioning/service reports Commissioning Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date: Maintenance/service Maintenance/service Maintenance/service Date:... - Page 12 Specification Specification Cylinder capacity DIN registration number 9W243/11 13 MC/E – Standby heat loss kWh/24 h 1.15 1.29 1.34 To EN 12897:2016 with 45 K temperature differential Total dimensions Total length d 1052 1216 Total width e Total height f Weight DHW cylinder with thermal insulation Connections (male thread)
-
Page 13: Final Decommissioning And Disposal
Appendix Final decommissioning and disposal Viessmann products can be recycled. Components For decommissioning the system, isolate the system and substances from the system are not part of ordi- from the power supply and allow components to cool nary household waste. -
Page 14: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity We, Viessmann Werke GmbH & Co. KG, D-35107 Using the serial number, the full Declaration of Con- Allendorf, declare as sole responsible body that the formity can be found on the following website: named product complies with the European directives www.viessmann.co.uk/eu-conformity... - Page 16 Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
