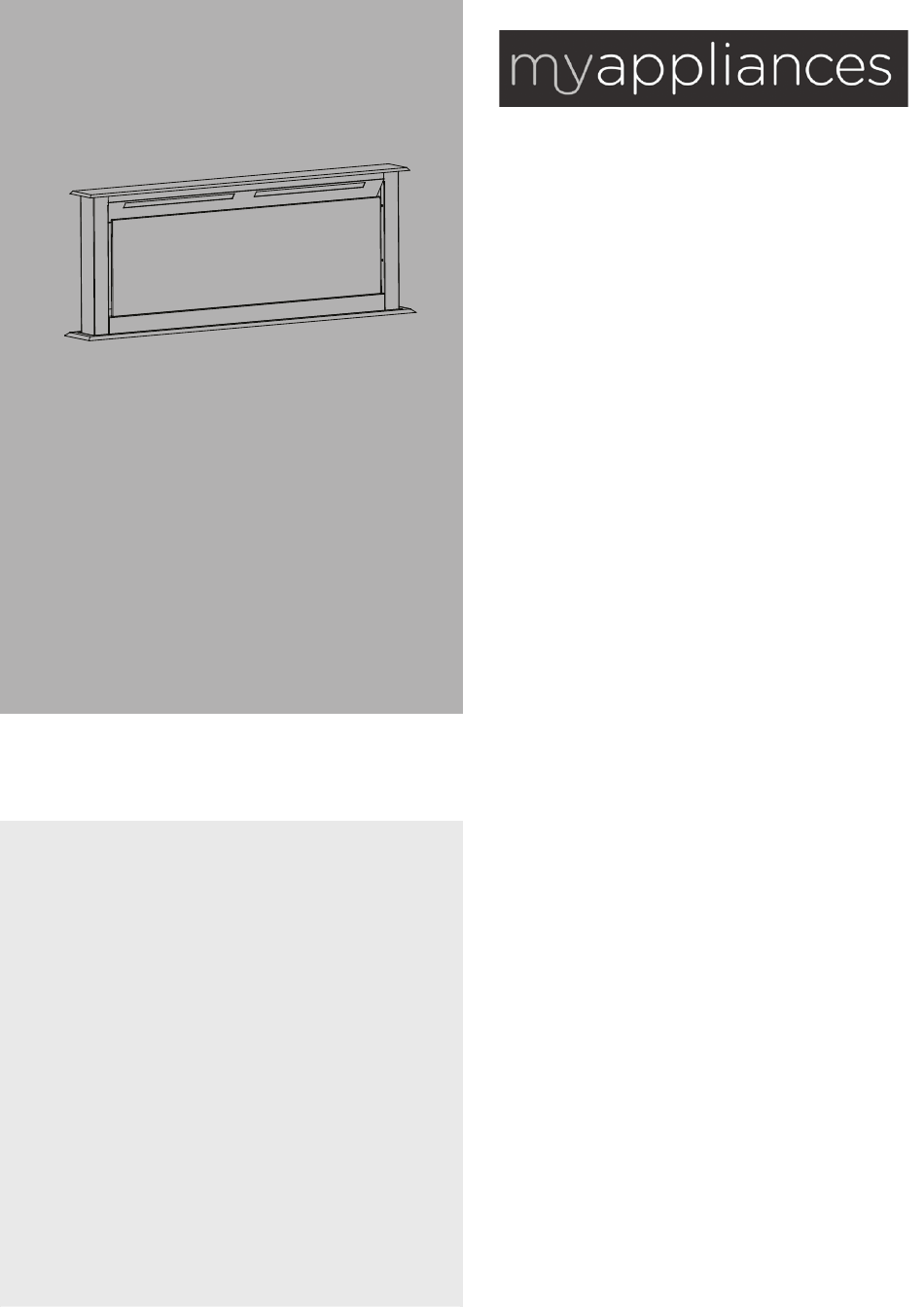

- Page 1 USER MANUAL ART10214 DOWN-DRAFT HOOD Customer Care 0344 800 1128...
-
Page 2: Table Of Contents
IMPORTANT INFORMATION CONTENTS Important Information Care and Maintenance Before you start Safety information Environment information Installation Technical and legal information Trouble shooting Your hood Guarantee Your hood control panel Useful contacts First use/Setting up your oven Accessories not supplied Product function BEFORE YOU START To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is... -
Page 3: Safety Information
IMPORTANT INFORMATION SAFETY INFORMATION These instructions are for your safety. Please read through external timer or separated remote-control system. them thoroughly prior to installation and retain them for The appliance is for domestic use only. future reference. Consult local regulations regarding fumes outlets. Do not All installation work must be carried out by a competent connect the hood to a fume, ventilation or hot air duct. -
Page 4: Environment Information
IMPORTANT INFORMATION ENVIRONMENTAL INFORMATION TECHNICAL AND LEGAL INFORMATION Waste electrical products should not be disposed of TECHNICAL INFORMATION: with household waste. Please recycle where facilities Power supply: 220-240V~, 50Hz exist. Check with your Local Authority or retailer for Power consumption - Fan: 198W recycling advice. -
Page 5: Your Hood
YOUR HOOD YOUR HOOD CONTROL PANEL Light on and off Extractor fan speed ‘+’ button Extractor fan speed ‘-’ button Lift button: press it for 1.5 seconds, the extraction outlet will lift or go down depending on the starting Digital display position... -
Page 6: Accessories Not Supplied
FIRST USE/SETTING UP YOUR HOOD We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. -
Page 7: Care And Maintenance
CARE AND MAINTENANCE ALUMINIUM FILTERS WARNING DOUBLE POLE SWITCHED FUSED SPUR OUTLET Always switch off the electricity supply before To avoid fires, clean thoroughly once a month. To do so, performing maintenance work. In the event of a remove the filters and wash with hot water and detergent. FUSE fault, contact customer services. -
Page 8: Installation
INSTALLATION Insert the hood body into cabinet slowly. provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. CAUTION The power supply to the appliance must be switched off before any adjustments or maintenance work is undertaken. - Page 9 INSTALLATION Fix the bracket onto the cabinet using 8 screws. Fix the power box using four screws and connect the wire accordingly IMPORTANT Do not need to fix the top two brackets if the cabinet is not wood based . Fix the vent pack (not supplied) using self adhesive aluminium tape (not supplied).
- Page 10 INSTALLATION If required, carefully fit an oven (in accordance with its manufactures instructions) on top of the warming drawer, taking care not to damage the top edge of the glass drawer unit. Ensure that the mains connection lead is located near to the socket outlet to avoid having to remove the product again to connect the mains electrical supply.
-
Page 11: Troubleshooting
TROUBLESHOOTING FAULT CAUSE SOLUTION Check the plug Hood doesn’t work No power supply Check the main switch Contact customer service. High temperature safety device activated the manufactures instructions After running for a while, motor stop working Distance between the cooker hood Readjust the distance to Electric and the hob is too small hobs... -
Page 15: Guarantee
E : e n q u i r i e s @ m y a p p l i a n c e s . c o . u k www.myspareparts.co.uk Republic of Ireland (ROI) – myappliances Customer Care Centre T: 1-800 535542 E: enquiries@myappliances.co.uk... - Page 16 MYAPPLIANCES Unit 3 Normandy Landings, 3 Pope Street NORMANTON West Yorkshire WF6 2AG...
