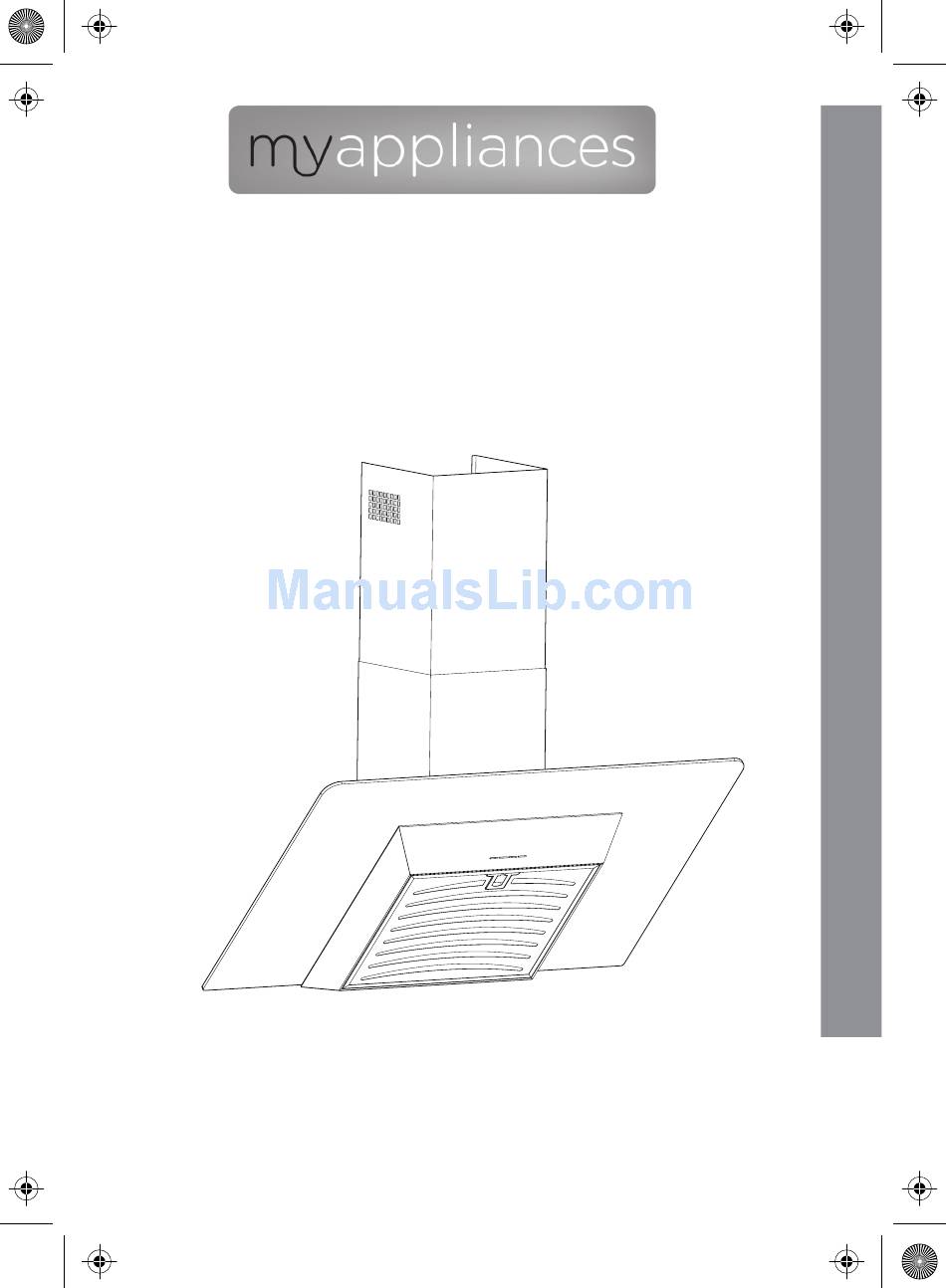

- Page 1 AGS60PK-F User Handbook - v4.pdf 18/01/2013 11:05 USER HANDBOOK ANGLE GLASS COOKER HOOD ART28201...
- Page 2 [01] x 1 [02] x 1 [03] x 1+1 [04] x 1 [05] x 1 [06] x 1 [07] x 1...
- Page 3 [08] x 2 [09] x 4 [09] x 4 [13] x 1 [11] x 6 1 : 1 [09] x 4 [10] x 6 (4 x 32mm) [12] x 4 (3.5 x 10mm)
-
Page 4: Table Of Contents
Cooker Hood Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Assembly... -
Page 5: Getting Started
Getting Started... Before you start Safety... -
Page 6: Before You Start
Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. - Page 7 Before you start You will need Ø6mm SILICONE Ø125mm or Ø150mm Accessories not supplied Recirculation Extraction CARBFILT4 (UK & IE) Ø125mm or Ø150mm OR CARBFILT4CL (FR) VENT PACK 2 (UK & IE) SELF ADHESIVE ALUMINIUM TAPE CARBON FILTER ORDERING HOTLINE 0844 800 1128 (UK) 1 800 535542 (IE)
-
Page 8: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a competent person or qualified electrician. The appliance is for domestic use only. Please dispose of the packing material carefully. - Page 9 Safety Children should be supervised so that they do not play with the appliance. To avoid the risk of fire, clean the metal filter regularly, watch closely and control pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
-
Page 10: In More Detail
more details... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 11: Product Functions
Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Cooker Hood Operation •... -
Page 12: Care And Maintenance
Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement DOUBLE POLE SWITCHED FUSED SPUR OUTLET N(bleu) N(bleu) L(brun) L(brun) FUSE ON... - Page 13 Care and maintenance CLICK 2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED). MODEL NUMBER CARBFILT4 (UK & IE) OR CARBFILT4CL (FR).
- Page 14 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Use non-corrosive, liquid detergent or a stainless steel cleaner. 1 MONTH 1 x MONTH MAX.65˚C the cleaning process. 3 MONTHS 3 x MONTH Important:...
-
Page 15: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly fixed. The fan blade is damaged. Switch off the appliance. Repair to be carried out by The fan motor is not fixed qualified service personnel tightly. -
Page 16: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 17: Technical And Legal Information
Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. WARNING : THIS APPLIANCE MUST BE EARTHED. -
Page 18: Guarantee
Guarantee Guarantee This appliance is covered by a 24 months guarantee. The guarantee will in no way affect your statutory rights and cannot be varied by any other guarantee, which may have been issued with the unit. This Guarantee Does Not Cover: A. -
Page 19: Ce Declaration Of Conformity
CE Declaration of conformity CE Declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS ADRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 20: Assembly
Assembly You can choose two type of installation: - Ducted option - Recirculation option... - Page 21 5 7 0 - 8 8 0 8 n i (min 650) Mark on the kitchen wall the holes to fix the cooker hood. The Wall Plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.
- Page 22 [14] [11] [11] x 4 [10] x 2 Drill the wall, insert the plugs for all the 4 marked holes and fix the screws for the top two holes of the hood. [10] x 2 Position the hood over the top two screw then fix the bottom screws from inside the hood.
- Page 23 [12] x 2 Secure with 2 short screws [06] [12] [05] [05] [06] [12] x 2 Fix the Collar and the reducer if required.
- Page 24 Fix the Ducting Tube 125 or 150 using tape or clamp. [04] [04] [10] [11] x 2 [10] x 2 Fix to the wall the top bracket and place the decorative tubes.
- Page 25 [03] x 2 [03] Fix to the wall the top bracket and place the decorative tubes. [12] [12) x 2 Fix the decorative tube to the bracket. Connect top of the ducting tube to vent kit as per manufacturers instructions.
- Page 26 [09] x 4 [09] x 4 [13] (09)] x 4 Secure the glass cover with the allen key using the bolts, rubber washer & washer NOTE: Ensure walls are level and clean.
- Page 27 SILICONE Glass NOTE: The double sided tape supports the splash back while the silicone adhesive sets.
- Page 28 Splashback WARNING: Wait 24 hours before removing the WARNING: The hob must not be used for 24 hours after the splashback has been installed. NOTE: When installing the splash back ensure a 2mm gap is left all the way around, this allows the material to expand without pressing against anything.
- Page 29 Fix the splachback under the hood on the wall. NOTE: The double sided tape supports the splash back while the silicone adhesive sets.
