Summary of Contents for myappliances ART10302

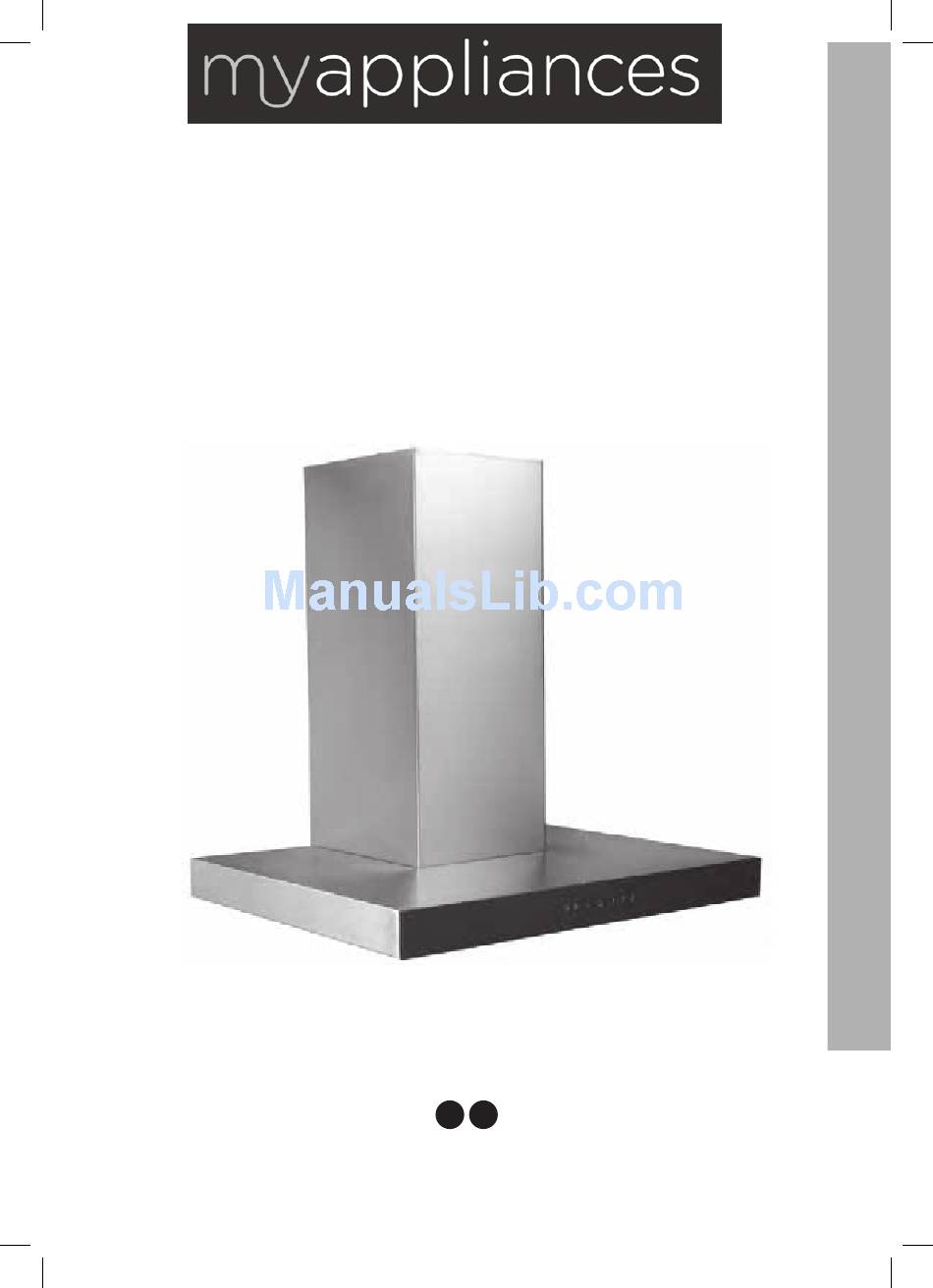

- Page 1 USER MANUAL 60/70/90cm Box Hood...
-
Page 2: Cm, 70Cm X
[01] x 1 [02] x 2 [03] x 1 [04] x 2 [06] x 1 [07] x 1 [05] 60cm, 70cm x 2 90cm 1 : 1 [09] x 6 (3.9 x 32mm) [08] x 6 [10] x 4 (3.4 x 10mm) - Page 3 60/70/90cm Box Style Hood Cooker Hood Hotte Aspirante Installation Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation... -
Page 5: Getting Started
Getting Started... Before you start Safety... -
Page 6: Before You Start
Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners. -
Page 7: Tools Required
Before you start Tools required Ø6mm Accessories not supplied Recirculation Extraction CARBFILT4 (UK & IE) Ø125mm or Ø150mm VENT PACK 2 (UK & IE) SELF ADHESIVE ALUMINIUM TAPE CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 01 4475261 (IE) -
Page 8: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried electrician. • This appliance must be installed correctly following the manufacturer’s instructions. This appliance complies with all current European safety legislation, however, the Manufacturer must emphasise that this compliance does not prevent... - Page 9 Safety Keep the appliance and its cord out of reach of children less than 8 years. Means for disconnection must be incorporated rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles Regularly check the power plug and power cord for damage.
- Page 10 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
- Page 11 Safety Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute. regularly and closely watch and regulate pans containing hot oil. Do not use the hood if it shows signs of damage or imperfection.
-
Page 12: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information... -
Page 13: Product Functions
Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation • Switch on the appliance at the switched fused connection unit. The appliance is ready for use. -
Page 14: Care And Maintenance
Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services. Bulb replacement FUSE 10’ The Bulb may be hot, leave it 10 minutes before removing it. - Page 15 Care and maintenance CLICK 2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED). MODEL NUMBER CARBFILT4 (UK & IE).
- Page 16 Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Use non-corrosive, liquid detergent or a stainless steel cleaner. 1 MONTH 1 x MONTH MAX.65°C the cleaning process. 3 MONTHS 3 x MONTH Important:...
-
Page 17: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly The fan blade is damaged. Switch off the appliance. Repair to be carried out by tightly. -
Page 18: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 19 Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST NOT BE EARTHED.
-
Page 20: Installation
Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. -
Page 21: Customer Service
E : e n q u i r i e s @ m y a p p l i a n c e s . c o . u k www.myspareparts.co.uk Republic of Ireland (ROI) – myappliances Customer Care Centre T: 1-800 535542 E: enquiries@myappliances.co.uk... -
Page 22: Installation
Appendix... Installation... - Page 23 Installation CARBFILT4 (UK & IE) VENT PACK 2 (UK + IE) You can choose two type of installation: - Extraction option - Recirculation option...
- Page 24 Installation MAX.750 DIM. A DIM.B DIM.B MIN.700mm Model DIM A 600mm MIN 650mm 700mm Electric 900mm Electrique Mark on the wall the hole positions as shown in diagram.
- Page 25 [09] [08] [08] x 6 [09] x 2 Maximum gap between top 2 holes and middle 2 holes can be no more than 750mm, dependant on ceiling height [03] [03] x 1 [09] MAX 750mm [09] x 2 Fix the top bracket to the wall.
- Page 26 [01] [01] [05] x 3 [05] Remove the aluminium filters [09] [09] x 2 Position the hood over the top two screws then insert the bottom screws from inside the hood, tighten top 2 screws to secure.
- Page 27 Replace the aluminium filters [07] [10] [06] [06] [07] [10] x 2 Fix the collar and the reducer if required.
- Page 28 Vent Pack 2 (UK + IE) Fix the vent pack 2 using self adhesive aluminium tape. [02] x 2 [02] Position the chimney sections.
- Page 29 [10] [10] x 2 Fit the chimney sections to the bracket. Connect top of the ducting tube to vent kit as per manufacturers instructions. Remove the Protector film For recirculating option refer to Care and maintenance section. For electrical connection see Technical and legal information section.
- Page 30 Notes...
- Page 31 Notes...
- Page 32 MYAPPLIANCES Unit 3 Normandy Landings, 3 Pope Street NORMANTON West Yorkshire WF6 2AG...
