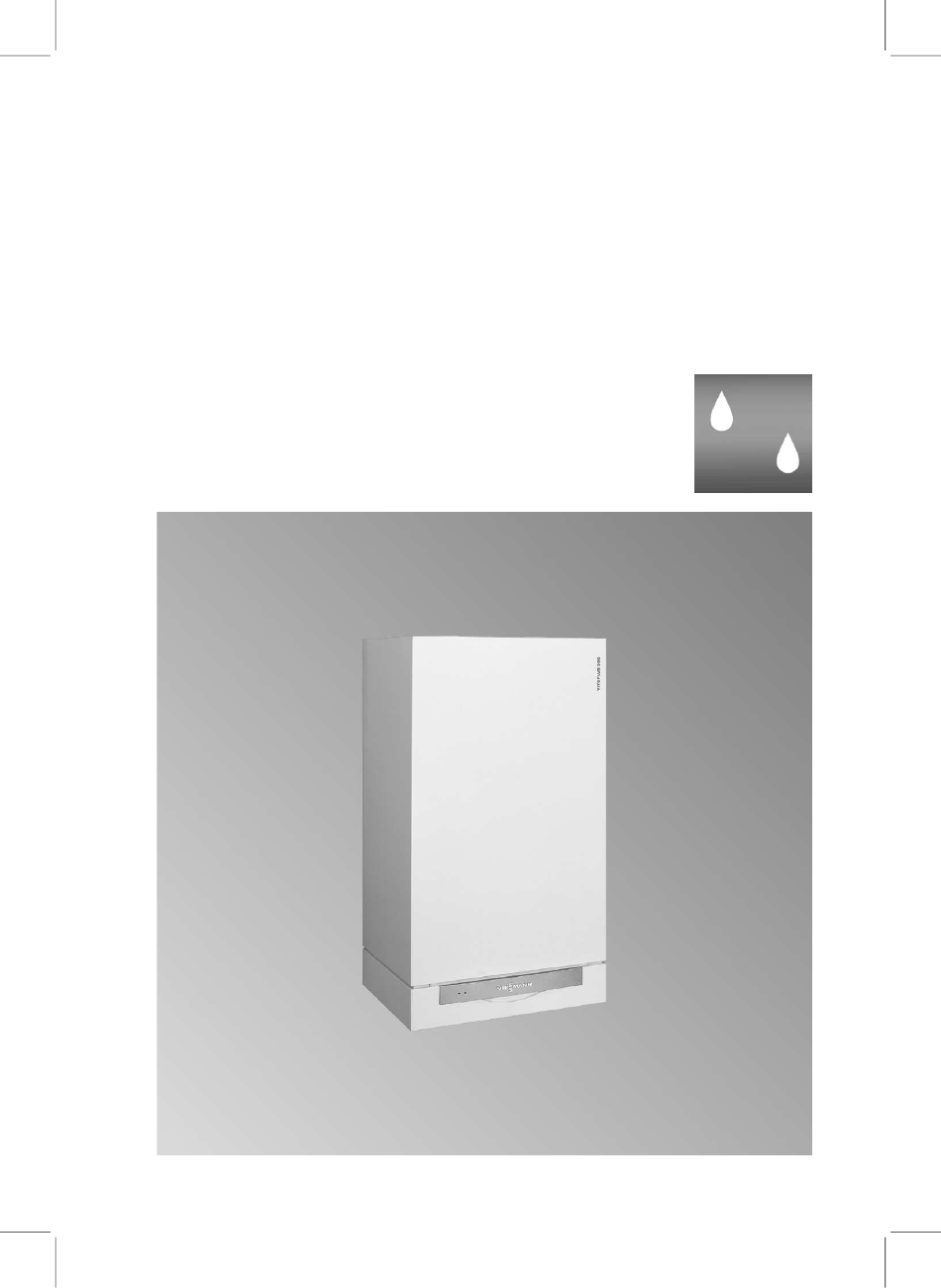

VIESMANN
Service instructions
for heating engineers
Vitoplus 300
Type VP3A, 12.9/19.3 kW, 16.1/23.5 kW
Wall mounted oil fired condensing boiler
for the combustion of low sulphur fuel oil DIN 51603-EL-1
with integral boiler control unit
For applicability, see the last page
VITOPLUS 300
Please keep safe
5692 536 GB
7/2005
