DUAL LINEAR MOTOR / ACTUATOR CONTROLLER
PRESET BUTTONS
MUST BE USED WITH
DAKOTA DIGITAL PART
LACT-6, LACT-8, LACT-10
or LACT-12
Switch 1
(safety disable, page 3 for more detail)
ON
-
OFF
-
Note: the external manual UP/DOWN will work all of the time
Switch 2
(auto move feature, page 3 for more detail)
ON
-
OFF
-
Switch 3
(auto reverse sensitivity, page 3 for more detail)
ON
OFF
Switch 4 and Switch 5 (single motor adjust and auto reverse enable)
SW4 ON & SW5 OFF
SW4 OFF & SW5 ON
SW4 & SW5 ON
SW4 & SW5 OFF
Switch 6
W/ CURRENT SENSING AUTO REVERSE
MOTOR 2
MOTOR 1
disables preset buttons and external presets when key is ON
buttons work the entire time key ON/OFF
enable auto move: when key ON move to position 1
disable auto move feature
-
high sensitivity
-
low sensitivity
-
move motor 1 only
-
move motor 2 only
-
auto reverse enabled
-
auto reverse disabled
-
NOT USED

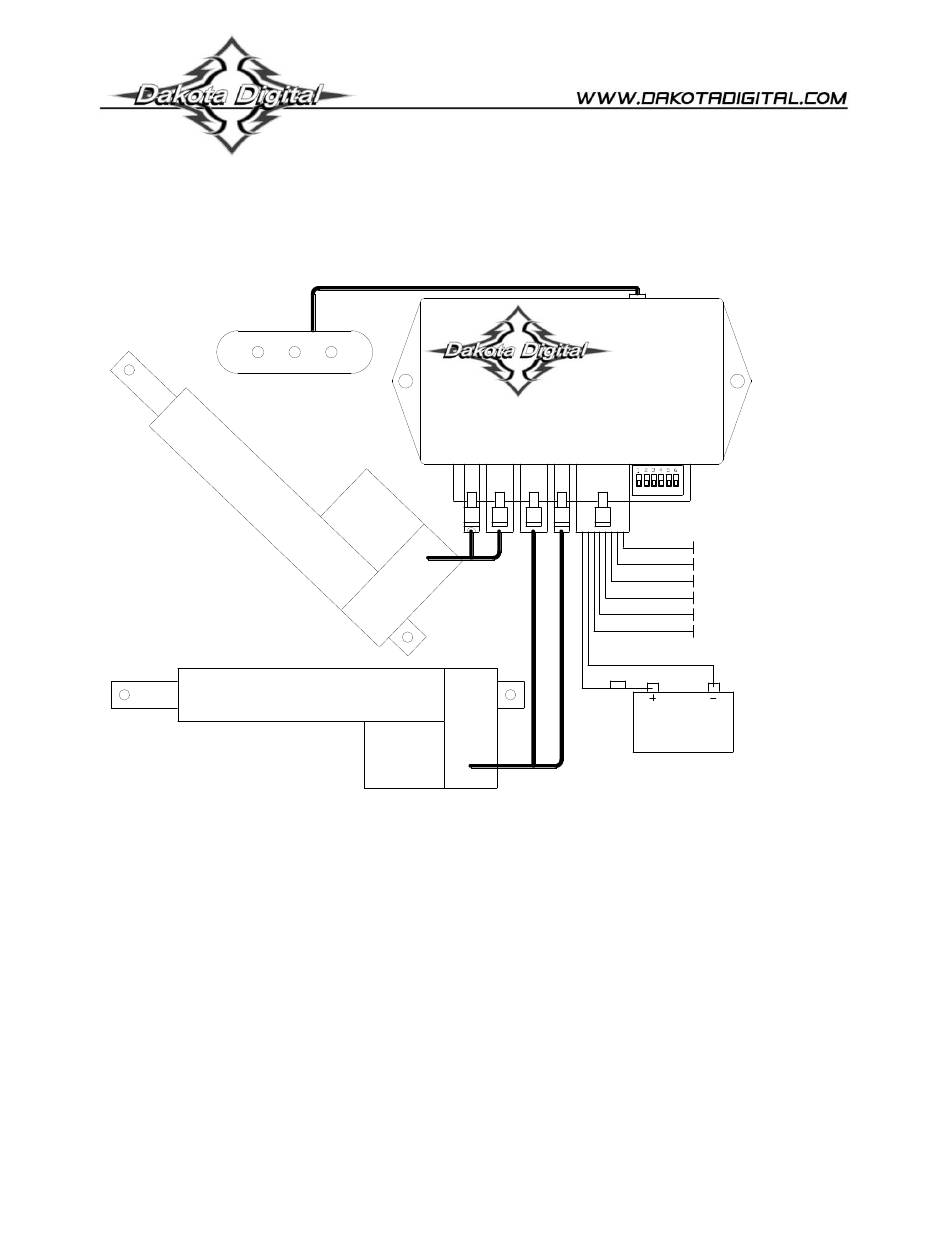

PAC-3200
DUAL LINEAR MOTOR CONTROLLER
WITH SAFETY REVERSE
MOTOR 1
MAIN
MOTOR 2
RED
Constant +12V
Power
when key OFF move to position 2
1
PAC-3200
#1 ACC DISABLE
#2 AUTO MOVE
#3 SENSITIVITY
#4 MOTOR 1
#5 MOTOR 2
#6 NOT USED
PINK
Preset 1 ground activated(optional)
BROWN
Preset 2 ground activated(optional)
WHITE w/ BLACK
Manual down ground activated(optional)
WHITE w/ RED
Manual up ground activated(optional)
PURPLE
Preset 3 ground activated(optional)
YELLOW
ACC power +12 V when key ON
BLACK
20 amp
Ground to
FUSE
battery/chassis
NEG
POS
BATTERY
MAN#650129A
Advertisement
Related Manuals for Dakota Digital PAC-3200
Summary of Contents for Dakota Digital PAC-3200
- Page 1 Preset 1 ground activated(optional) MUST BE USED WITH BROWN Preset 2 ground activated(optional) WHITE w/ BLACK Manual down ground activated(optional) DAKOTA DIGITAL PART WHITE w/ RED Manual up ground activated(optional) LACT-6, LACT-8, LACT-10 PURPLE Preset 3 ground activated(optional) or LACT-12...
- Page 2 Features The PAC-3200 is designed to control two linear motors at the same time. It is intended to be used to lift heavier trunk lids and toppers / Tonneau covers that require more than one motor. The PAC-3200 has many convenient features which include: ...
- Page 3 Safety Disable (SWITCH 1) The safety disable feature will only allow the system to operate when the key is off. For proper operation the yellow wire should be connected to a keyed +12 V source, or ignition terminal. Turn switch 1 ON to enable safety feature ...
- Page 4 Saving and Setting Presets Each button on the button panel represents a preset height. The three user programmable heights can be changed or set as many times as desired. Follow the steps below to set the heights. Use Manual down (buttons 1 & 2) or Manual up (buttons 2 & 3) to move the motors to the desired height.
- Page 5 The three optional remote wires coming from the controller can be used to activate the linear motors via remote system, such as a Dakota Digital Commander Series. The optional preset wires: pink, brown, and purple represent preset heights 1, 2, and 3 respectively. To activate a move to a position the wire needs to be momentarily grounded;...
-
Page 6: Troubleshooting Guide
Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
