Cables and Pinout Information
Cables and Pinout Information
The EMC32-12 is designed to accept straight-through
cabling. The RJ-45 connectors have the following
configurations and pinouts:
Page 4
12
10
1 2 3 4 5 6 7 8
1. Receive +
2. Receive -
3. Transmit +
4. Not Used

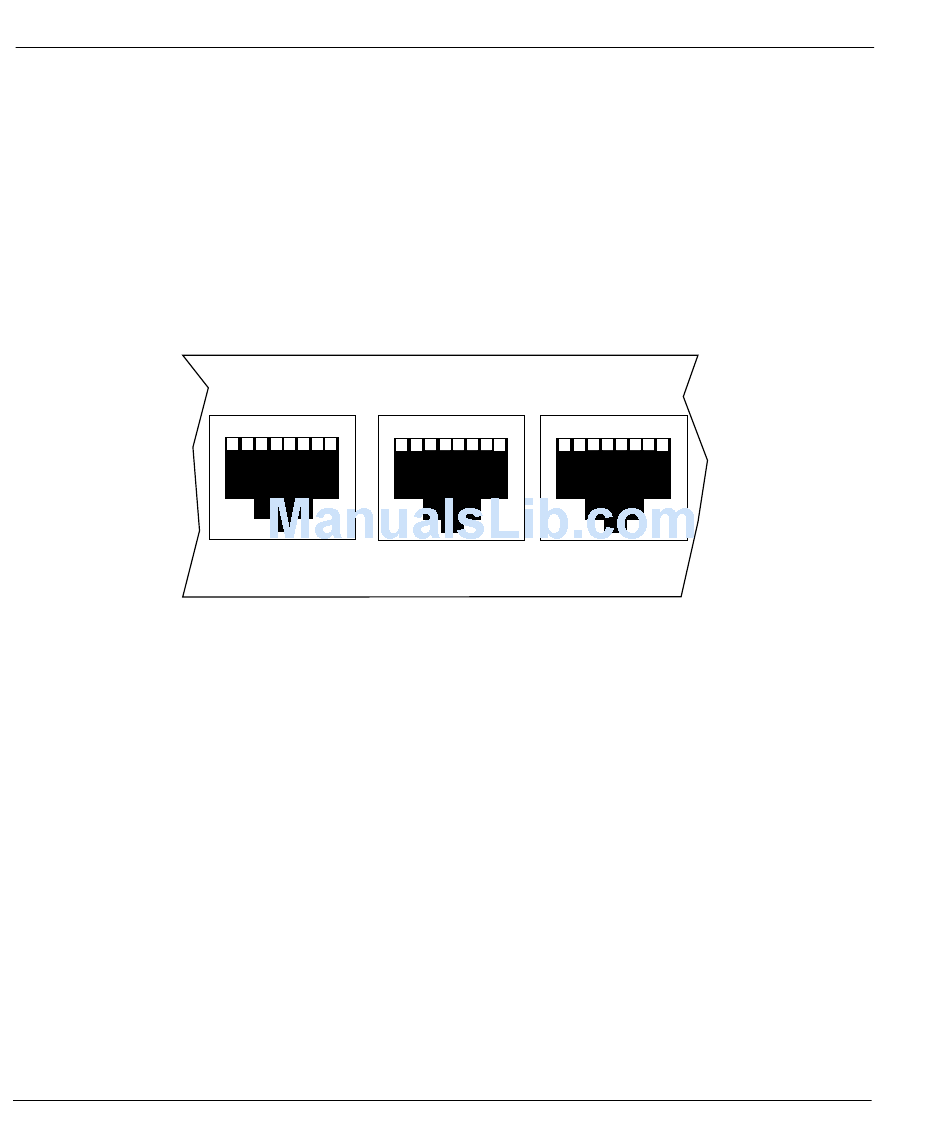

Figure 2: RJ-45 Pinouts
8
5. Not Used
6. Transmit -
7. Not Used
8. Not Used
09162_02
