Spartan Clean on the Go User Manual page 6

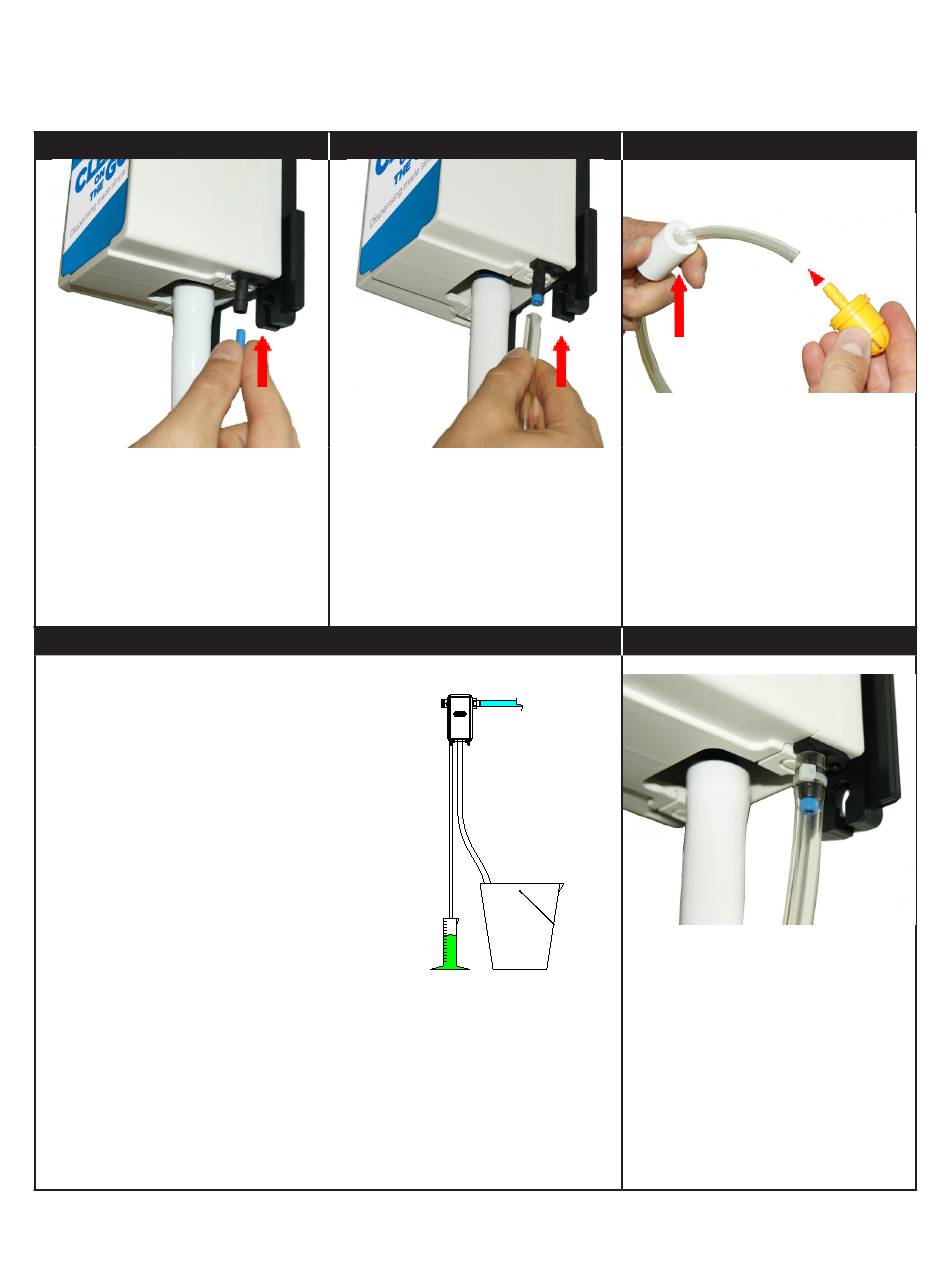

PRODUCT PICKUP TUBE AND TIP INSTALLATION
STEP 7
Select a suitable tip and insert
it completely into the barbed
tip seat as shown. To deter-
mine the correct tip, refer to the
tip chart.
STEP 10
Tip calibration
1. Fill a graduated cylinder with
the concentrated product.
2. Using the chart in the manual,
select and insert the tip closest
to the desired dilution ratio.
3. Insert the pickup hose into the
graduated cylinder.
4. Put the outlet tube into an open
container and push the button
or lever in order to activate the
system. Draw up the product
until the pickup tube is com-
pletely filled.
5. Switch the system off and insert
the delivery hose in a 1 gallon (or 5 liter) container.
6. Mark the level of the product in the graduated container.
7. Switch the system on again until the 1 gallon (or 5 liter) con-
tainer is completely full.
8. Switch the system off and read the quantity of product in the
graduated container.
9. The difference in the product levels for points 6 and 8 indicates
the amount of product mixed per gallon (or liter).
STEP 8
Connect the product supply
tube or product pickup tube.
Chemical Water
graduated
tank
Chemical
tank
STEP 9
CERAMIC
WEIGHT
Cut the tubing to the required
length. Connect the foot valve
/ filter to the hose. Slide the
ceramic weight over the tube
and as far as possible over the
barbed fitting on the yellow foot
valve.
STEP 11
Water
+
Use a cable tie to secure the
tube on the barbed tip seat.
For a 4-product selector, repeat
the operations from step 7 to
11 for each product.
