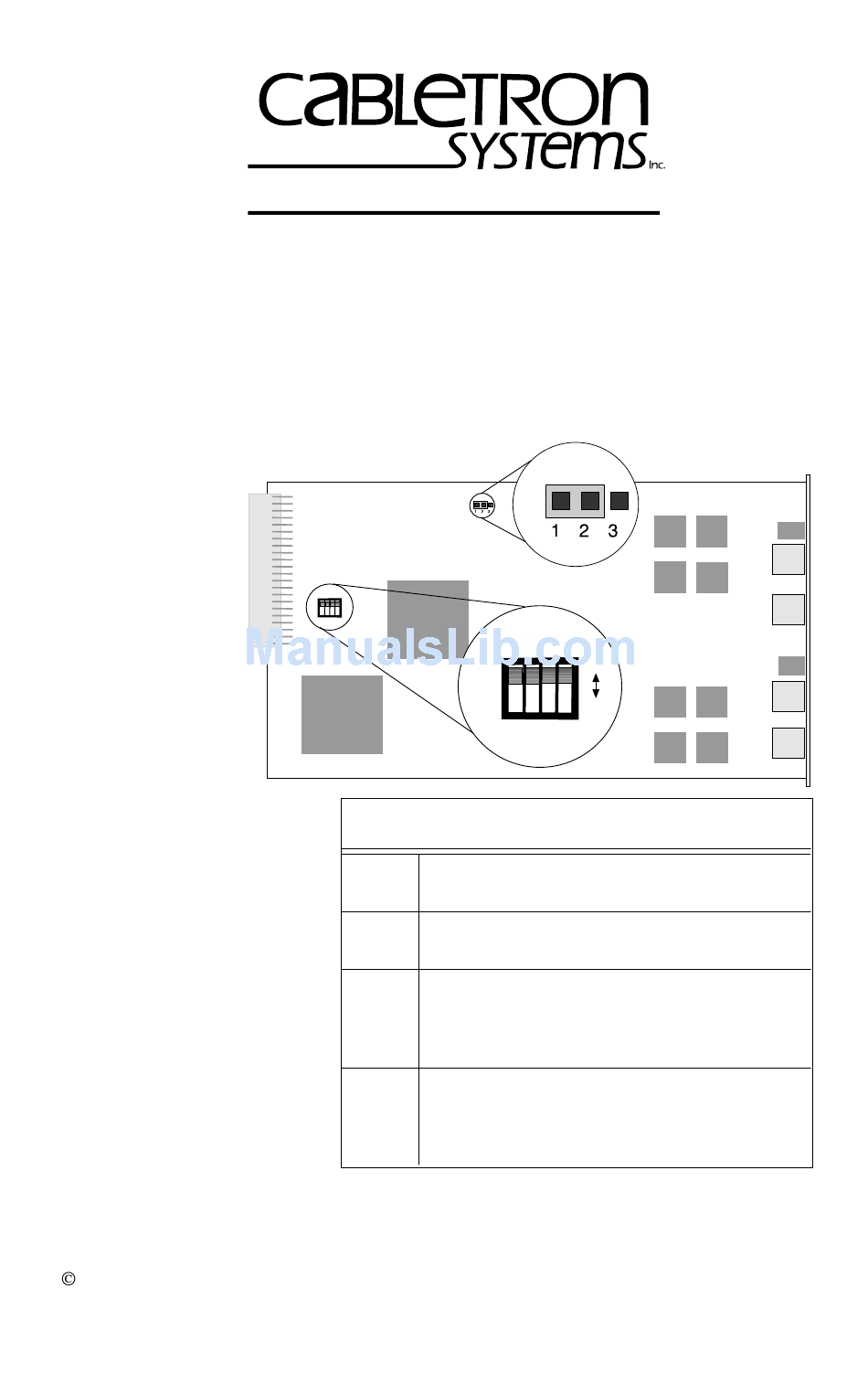

MCC-CRIO QUICK REFERENCE
QR.1
SETTING SWITCHES AND JUMPERS
Location of SW1 Switchblock And Jumper P1
Copyright 1997 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032130-01 July, 1997
The Complete Networking Solution
SW1
1 2 3 4
SW1 Settings
On – Enable RI port
1
Off – Disable RI port
On – Enable RO port
2
Off – Disable RO port
On – Enable autowrap on RI
3
Off – Disable autowrap on RI
4
(Default Settings)
P1
P1
SW1
ON
OFF
1 2 3 4
Switch Configuration Table
(for connection to Cabletron devices)
(for use with other vendor devices)
On – Enable autowrap on RO
(for connection to Cabletron devices)
Off – Disable autowrap on RO
(for use with other vendor devices)
QR-1
