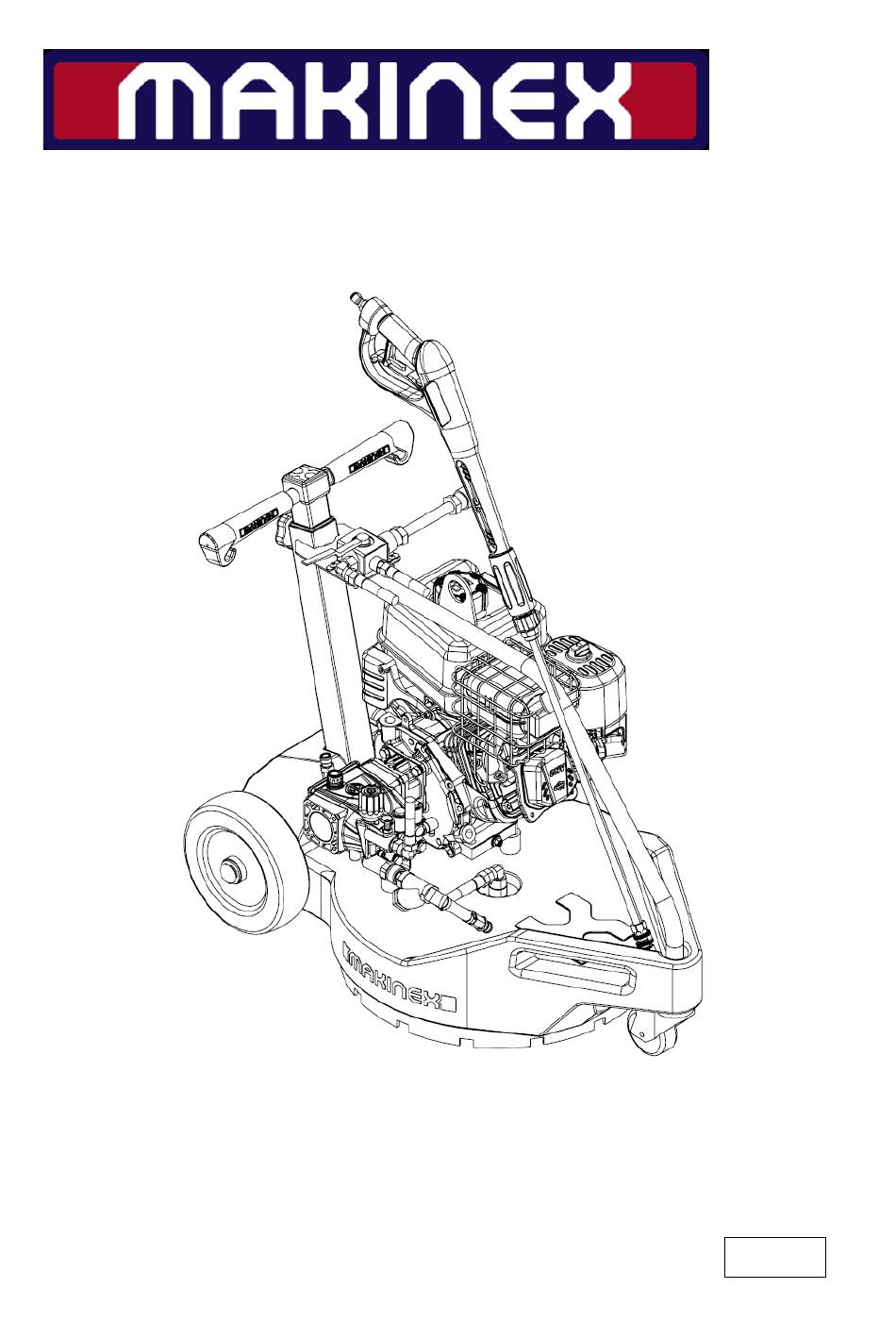

- Page 1 DUAL PRESSURE CLEANER DPC-2200 OPERATOR’S MANUAL Rev 0920...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 1 DISCLAIMER ................................ 2 ABOUT THIS MANUAL ............................3 KEY TERMS ................................3 SAFETY INFORMATION ............................ 4 EMERGENCY INFORMATION ..........................8 SAFETY DECALS ..............................8 PRODUCT DESCRIPTION AND SPECIFICATION ....................10 OVERALL MACHINE DIMENSIONS ........................11 CONTROLS AND FEATURES .......................... - Page 3 CHECK HIGH PRESSURE HOSE ........................23 CHECK SPRAY GUN ............................24 CHECK WAND ..............................24 NOZZLE MAINTENANCE ..........................24 PUMP MAINTENANCE ............................25 CHANGING PUMP OIL ........................... 25 CHECKING PUMP OIL LEVEL .......................... 26 LENGTHY PUMP LAY-OFFS ..........................27 PUTTING THE PUMP BACK INTO SERVICE ..................... 27 SURFACE-CLEANER MAINTENANCE ........................
-
Page 4: Introduction
MAKINEX. The information contained in this manual was based on machines in production at the time of publication. MAKINEX reserves the right to change any portion of this information without notice. All rights, especially copying and distribution rights are reserved. -
Page 5: Disclaimer
DISCLAIMER MAKINEX and its affiliates take no responsibility for any damage, injury or death resulting from the incorrect or unsafe use of this product. Use of this product should be undertaken by competent persons only. It is the operator’s responsibility to ensure that the following safety procedures are followed. -
Page 6: About This Manual
PROHIBITED These safety warnings do not eliminate all possible hazards that could occur therefore it is essential to use common sense and to strictly follow any instructions to prevent accidents. DPC-2200 USER MANUAL Page 3 of 38... -
Page 7: Safety Information
Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting or poisoning. ALWAYS operate pressure cleaner in a well-ventilated area. Avoid enclosed areas such as garages, basements etc. DPC-2200 USER MANUAL Page 4 of 38... - Page 8 Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back. NEVER spray near power source. DPC-2200 USER MANUAL Page 5 of 38...
- Page 9 ALWAYS be certain spray gun, nozzles and accessories are correctly attached. ALWAYS wear personal protective clothing such as goggles, ear muffs, gloves, and closed foot wear. DPC-2200 USER MANUAL Page 6 of 38...
- Page 10 ALWAYS wear safety goggles when using this equipment or in vicinity of where equipment is in use. Before starting the pressure cleaner, be sure you are wearing adequate safety goggles. NEVER substitute safety glasses for safety goggles. DPC-2200 USER MANUAL Page 7 of 38...
-
Page 11: Emergency Information
3. Further to the above, the water flow can be diverted from the spray gun by turning the 3-way valve to divert the water to the Surface-Cleaner. Always ensure all safety information is observed before re-commending work. IGNITION SWITCH IGNITION SWITCH 3-WAY VALVE DPC-2200 USER MANUAL Page 8 of 38... -
Page 12: Safety Decals
SAFETY DECALS DPC-2200 USER MANUAL Page 9 of 38... -
Page 13: Product Description And Specification
PRODUCT DESCRIPTION AND SPECIFICATION The MAKINEX Dual Pressure Cleaner DPC-2200 Range is a versatile, 2 in 1 compact 2200 psi pressure cleaner. It is designed and engineered to simplify the process of pressure washing. The pressure cleaner includes a combination of a... -
Page 14: Overall Machine Dimensions
SURFACE-CLEANER 460mm (18inch) BALL VALVE 500bar/ 7252psi rated 3-way ball valve TRIGGER GUN 358.5bar/ 5200psi rated WAND LENGTH 900mm/35.4inch OVERALL MACHINE DIMENSIONS DPC-2200 USER MANUAL Page 11 of 38... - Page 15 PUMP SPECIFICATIONS MODEL DPC-2200 (With JRV3G30) PRESSURE OUTPUT MAX 2200 psi/152 bar FLOW RATE MAX 11L/min (3.0 gal/min) OIL TYPE 10W30 2600 WEIGHT 4kg/8.8lbs ENGINE SPECIFICATIONS ENGINE TYPE Briggs and Stratton XR950 Air-cooled 4-stroke OHV BORE x STROKE 68.3 x 55.9mm/2.7 x 2.2inch DISPLACEMENT 208cm³/12.7inch³...
-
Page 16: Controls And Features
CONTROLS AND FEATURES RETRACTABLE SPRAY GUN HANDLE LIFTING EYE POWDER COAT FRAME BRIGGS AND STRATTON 3-WAY VALVE PULL START ENGINE GARDEN HOSE CONNECTOR AR PUMP INLET WATER FILTER CASTOR WITH ROTOMOULD BASE BRAKE DPC-2200 USER MANUAL Page 13 of 38... - Page 17 Multi cushion isolators for vibration reduction Detachable 10m high pressure hose Spray gun included and mounted on frame Built in 2200 psi Surface-Cleaner Compact design for easy storage and transport Lifting point for transportation DPC-2200 USER MANUAL Page 14 of 38...
-
Page 18: Operation
This may result in an engine failure. NOTE: Refer to XR 950 Manual for more in-depth instructions NOTE: New machines will be pre-oiled from MAKINEX with: Power Equipment Engine Oil – SAE 10W-30, API SJ DPC-2200 USER MANUAL... -
Page 19: Refueling
4. Wait for spilled fuel to evaporate before starting the engine. Keep fuel away from sparks, open flames, pilot lights, heat and other ignition sources. WARNING DO NOT light a cigarette or smoke near open fuel tank or container. DPC-2200 USER MANUAL Page 16 of 38... -
Page 20: Operating Your Pressure Cleaner
2.2 Connect the Quick-Connect female fitting from the high-pressure hose to the spray gun as shown by hand, make sure it’s a tight fit and the threads are not cross threaded (the connection is a self-sealed one, hence no plumbing is needed) DPC-2200 USER MANUAL Page 17 of 38... -
Page 21: Connect Garden Hose To Water Inlet Connection
15m/50ft in length and with the inner diameter of hose no less than 13mm). 3.5 Turn on water FILTER ***IMPORTANT*** DO NOT siphon standing water for the water supply. Use ONLY cold water (less than 37°C/100°F) DPC-2200 USER MANUAL Page 18 of 38... -
Page 22: Adjust Valve Postion To Surface-Cleaner
Refer to your Briggs and Stratton XR 950 Engine Operator’s manual for more details ***IMPORTANT*** DO NOT run the pump without the water supply connected and turned on. Damage to equipment resulting from failure to follow this instruction will VOID WARRANTY DPC-2200 USER MANUAL Page 19 of 38... -
Page 23: Two Types Of Operation
SPRAY GUN OPERATION 7. NOZZLE The nozzle on the spray gun that comes with the MAKINEX dual pressure cleaner is a multi-spray pattern Quick Connect nozzle with 0, 15, 25, and 40 degree spray angles as well as a soap and rinse pattern. -
Page 24: Retractable Handles
Release pressure from spray gun, ALWAYS point gun in safe position before pressing trigger. NOTE: Spray gun traps high water pressure, even when engine is stopped, and water is disconnected. 10.3 Store in a safe area DPC-2200 USER MANUAL Page 21 of 38... -
Page 25: Maintenance
Switch machine off within two minutes of ceasing operation as excessive by-pass can cause heat to build up in pump WARNING and subsequent damage. EXCESSIVE BY-PASS RUNNING VOIDS WARRANTY! DPC-2200 USER MANUAL Page 22 of 38... -
Page 26: General Maintenance
NEVER repair high pressure hose. Replace it. WARNING Replacement hose rating MUST exceed maximum pressure rating of unit. DPC-2200 USER MANUAL Page 23 of 38... -
Page 27: Check Spray Gun
(suggestion: every month for machines in regular use, every three months for machines used intermittently). Using the machine with the incorrect nozzle size or worn nozzle will VOID WARRANTY and can be DANGEROUS to operator. DPC-2200 USER MANUAL Page 24 of 38... -
Page 28: Pump Maintenance
Change oil after first 50 hours of operation and then every 200 hours of operation or every 3 months of regular use, whichever occurs first. NOTE: When changing pump oil, use only high quality non-detergent oil. Use no special additives. DPC-2200 USER MANUAL Page 25 of 38... -
Page 29: Checking Pump Oil Level
3. Screw on the drain plug (A). 4. Unscrew the filler plug (B). 5. Pour in the fresh oil through the filter hole until the correct level is reached. 6. Screw on the filler plug (B) DPC-2200 USER MANUAL Page 26 of 38... -
Page 30: Lengthy Pump Lay-Offs
5. Protect the pump from weather. PUTTING THE PUMP BACK INTO SERVICE Before putting the pump back into service after a long period out of use, check the oil level and the tightness of the mounting screws. DPC-2200 USER MANUAL Page 27 of 38... -
Page 31: Surface-Cleaner Maintenance
Disconnect spark plug wire from spark plug and cover tip of spark plug wire with insulating tape and place wire where it cannot come in contact with spark plug or pressure cleaner frame. DPC-2200 USER MANUAL Page 28 of 38... -
Page 32: Storage Of Pressure Cleaner
4. Store pressure cleaner in a clean and dry area. Certain storage covers can be flammable or can melt in high temperatures. DO NOT place storage cover over pressure cleaner unit until it has completely WARNING cooled. DPC-2200 USER MANUAL Page 29 of 38... -
Page 33: Troubleshooting
Pump left on idle for too long FOR >2min VOIDS WARRANTY Guide piston gasket worn Replace the gaskets (1) Water in oil High humidity percentage in air Change the oil twice as often DPC-2200 USER MANUAL Page 30 of 38... - Page 34 Engine too hot Allow engine to cool Choke in wrong position Change choke position Too much pressure builds up Release pressure (1) operations which must be carried out at an authorised service centre DPC-2200 USER MANUAL Page 31 of 38...
-
Page 35: Limited Warranty
MAKINEX product in peak operating condition. MAKINEX warrants each new Dual Pressure Cleaner to be free from defects in material and workmanship under normal domestic and industrial use and service for the period specified below, conditional to the limitations and exclusions printed on this page. -
Page 36: Warranty Exclusions
Accessory parts such as starting batteries, and storage covers. Failures due to acts of God and other force majeure events beyond the manufacturer’s control. Problems cause by parts that are not original MAKINEX parts. Maintenance service cost Expeditated freight costs... -
Page 37: Owner's Responsibility Under Limited Warranty
This warranty only applies to the original purchaser and is not transferable. It is the responsibility (and cost) of MAKINEX or our appointed agent to return the machine to be repaired or replaced under warranty to the consumer- this is valid for domestic territories only (e.g. -
Page 38: Contact Information
CONTACT INFORMATION For sales, service, warranty and parts for all MAKINEX products; please refer below. SALES, SERVICE, SPARE PARTS & WARRANTY SALES TEL 1300 795 953 or +61 2 9460 8071 WEB www.makinex.com.au AUSTRALIA SERVICE, SPARE PARTS & WARRANTY EMAIL service@makinex.com.au... -
Page 39: Appendix A- Risk Assessment
APPENDIX A- RISK ASSESSMENT DPC-2200 USER MANUAL Page 36 of 38... - Page 40 DPC-2200 USER MANUAL Page 37 of 38...
- Page 41 DPC-2200 USER MANUAL Page 38 of 38...
