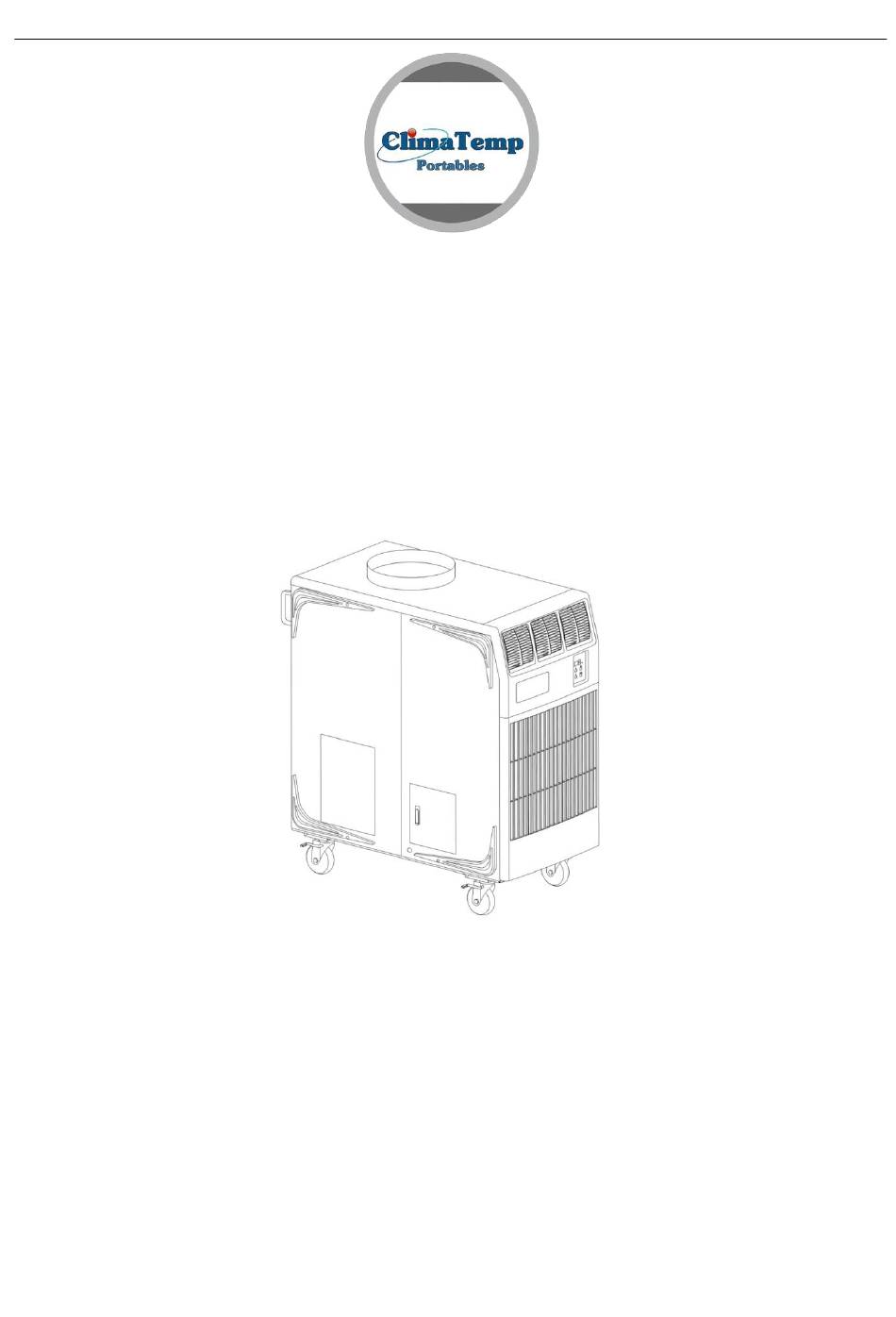

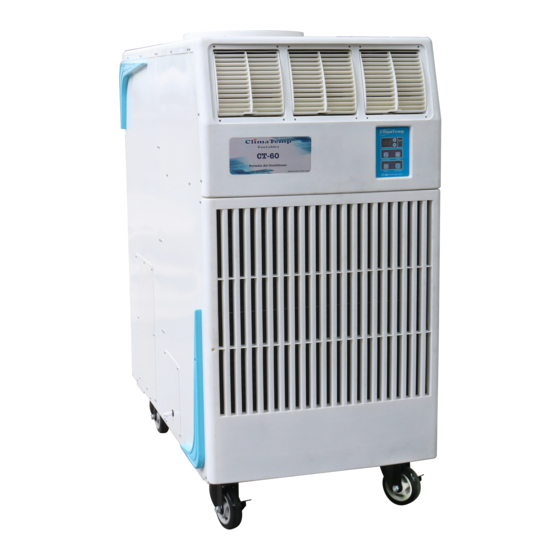

- Page 1 OPERATION MANUAL OPERATION MANUAL CT-60 READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS PORTABLE SPOT AIR CONDITIONER...
-
Page 2: Serial Number Location And Identification
OPERATION MANUAL SERIAL NUMBER LOCATION AND IDENTIFICATION The serial number and name plate can be located near the lower right side of the unit. Nameplate Label Nameplate Label Position Serial Number... - Page 3 OPERATION MANUAL Congratulations on your purchase of a ClimaTemp Commercial Portable spot air conditioner. Exclusive engineered features only from ClimaTemp. • Slim deign to fit through a standard doorway. • Efficient 2 speed evaporator airflow. • Design Patent- protected metal condenser coil decorative cover overlay with slide out filters.
- Page 4 After unpacking your ClimaTemp Portable spot air conditioner, please check to make sure you have the following items: 1. CT-60 Portable spot air conditioner 2. Operation Manual Note: If any of these items were not included in the box or appear damaged, please contact your ClimaTemp Portable spot air conditioner reseller for replacement.
- Page 5 OPERATION MANUAL INSTALLATION & GENERAL SAFETY INFORMATION • Do not use the unit at conditions above 104 ℉ (40 ℃ ) or below 64 ℉ (18 ℃ ). • Unit Designed for indoor usage only. Do not submerge or spray water on the spot cooler.
- Page 6 OPERATION MANUAL INSTALLATION (cont.) Moving the Unit Unlock the casters and push the Portable spot air conditioner unit using the side handles to a flat, level surface and set the casters to the LOCKED position. Right Side Handle Left Side Handle...
- Page 7 2. Check the power cord, plug and prongs for damage or excess play. If any damage or excess play is found, contact ClimaTemp Portables or a qualified technician for repair. WARNING: If the power cord or plug is damaged, replacement should only be performed by qualified electrical personnel.
-
Page 8: Operation
OPERATION MANUAL OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. - Page 9 OPERATION MANUAL OPERATION (cont.) Operating Method 1. Power Switch: After plugging into power, the power switch LED indicator will illuminate, press the POWER button to turn on and turn off the unit. 2. Air volume selection: Press Fan Speed to select the high or low air volume. 3.
- Page 10 OPERATION MANUAL LED Display Error Codes: Code Description Reason Compressor Over-current Surrounding Temperature too high. Protection Hot air exhaust is obstructed. Input voltage is too high or too low. Compressor problem. Relay problem. Pressure too high in cooling system Surrounding Temperature too high. Hot air exhaust is obstructed.
- Page 11 OPERATION MANUAL Condensate Pump The CT-60 is equipped with a built-in condensate pump. The pump will eliminate the need for emptying out a drain tank. General Pump information and Troubleshoot During COOL mode, condensate water accumulates in the condensate pump. When the pump reservoir becomes full, the pump will engage and discharge the condensate.
- Page 12 OPERATION MANUAL Hose Installation Attach condensate line to pump by accessing the pump door located on the lower left side of the unit. When hanging hose from the ceiling make sure not to exceed 20’ vertically. Run the hose at a downward slope from its highest point. Always attach condensate line to pump with a secure hose clamp.
-
Page 13: Daily Inspection And Maintenance
OPERATION MANUAL DAILY INSPECTION & MAINTENANCE Checking the Condensate Pump 1. Open the condensate pump access door. 2. Confirm pump is level. 3. Confirm condensate line is attached to the pump securely by a clamp. 4. Make sure there are no kinks in condensate line. 5. - Page 14 OPERATION MANUAL Filter Cleaning Method 1. Remove filters. Dust, dirt and particulate can be removed from the filter with a vacuum cleaner, or rinse in cold or lukewarm water. If the element is extremely dirty, wash with a neutral detergent. 2.
-
Page 15: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING Check the following items before calling your ClimaTemp Portable spot air conditioner reseller or a qualified technician. CONDITION POSSIBLE CAUSE REMEDY 1. Ground fault breaker trip or 1. Reset breaker or reset power cord Unit does not breaker trip from power source. - Page 16 OPERATION MANUAL Parts List Breakdown...
-
Page 17: Limited Warranty
NONINFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. LIMITATION ON LIABILITY NOTWITHSTANDING ANYTHING HEREIN TO THE CONTRARY, IN NO EVENT WILL CLIMATEMP PORTABLES BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING LOSS OF PROFITS, WHETHER ARISING IN CONTRACT, TORT, WARRANTY OR OTHERWISE, EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
