Summary of Contents for ClimaTemp Portables CPT-12

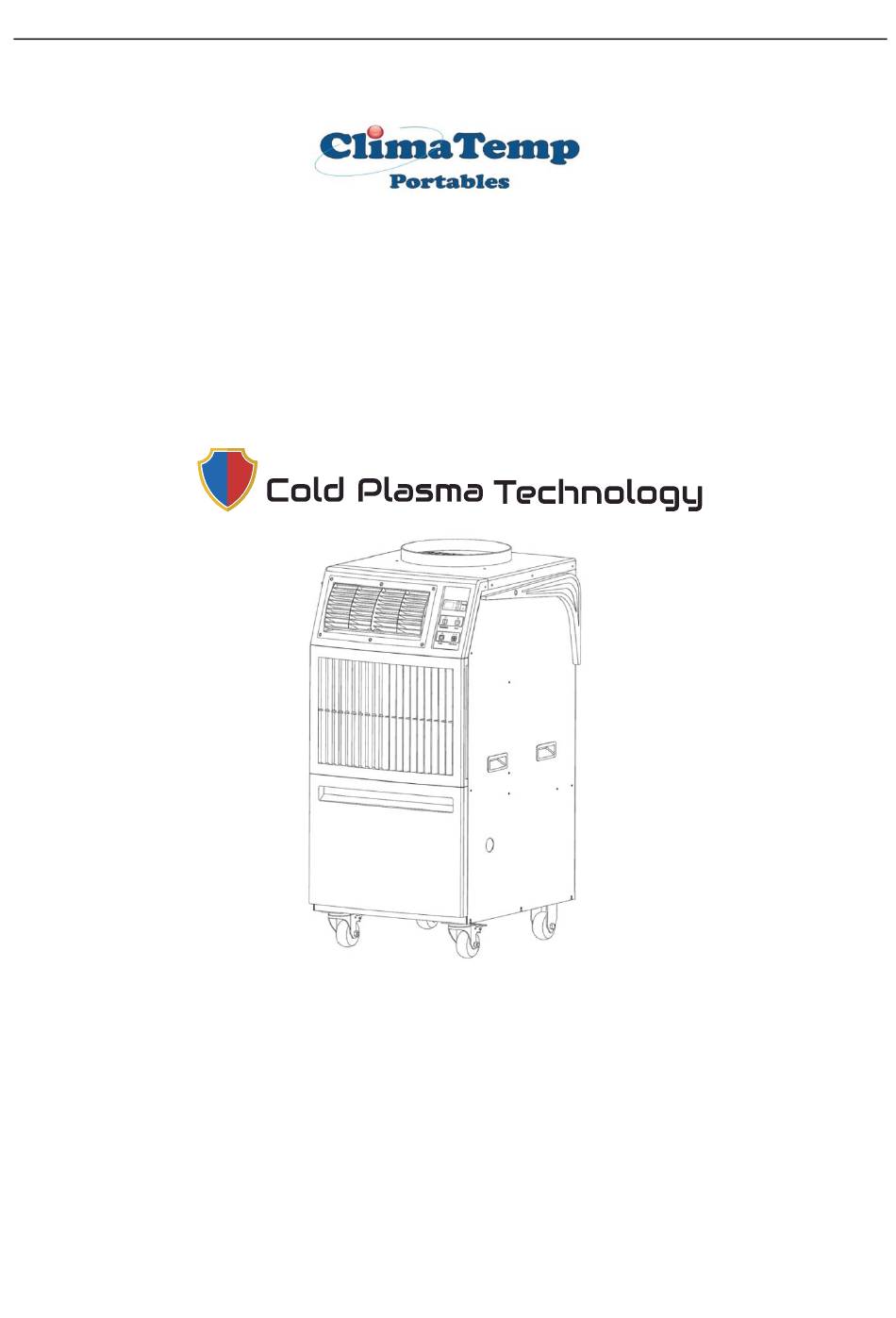

- Page 1 OPERATION MANUAL OPERATION MANUAL CPT-12 READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS PORTABLE SPOT AIR CONDITIONER...
-
Page 2: Serial Number Location And Identification
OPERATION MANUAL SERIAL NUMBER LOCATION AND IDENTIFICATION The serial number and name plate can be located near the lower right side of the unit. Nameplate Label... - Page 3 OPERATION MANUAL FOREWARD The first spot cooler portable air conditioner featuring Cold Plasma Needlepoint Bipolar Ionization. • Destroys viruses and bacteria. • Effective on airborne and surface pathogens. • Neutralizes odors and VOC’s • Reduces mold spores, pollen, allergens and particulates. •...
- Page 4 After unpacking your ClimaTemp Portable spot air conditioner, please check to make sure you have the following items: 1. CPT-12 Portable spot air conditioner 2. Operation Manual 3. Kick Plate/Foot Pedal. (located under the unit). Please attach to bottom rear of unit.
- Page 5 OPERATION MANUAL INSTALLATION & GENERAL SAFETY INFORMATION • Unit Designed for indoor usage only. Do not submerge or spray water on the spot cooler. • Do not use the unit at conditions above 113 ℉ (45℃) or below 64 ℉ (18℃). •...
- Page 6 OPERATION MANUAL INSTALLATION (cont.) Moving the Unit Unlock the casters and push the Portable spot air conditioner unit using the side handles to a flat, level surface and set the casters to the LOCKED position.
- Page 7 Procedure for Testing Device The CPT-12 is equipped with a LCDI power cord. This device is non-serviceable and opening the device may cause electric shock or void the warranties of the product.
-
Page 8: Operation
OPERATION MANUAL OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. - Page 9 OPERATION MANUAL OPERATION (cont.) Operating Method 1. Power Switch: After plugging into power, the power switch LED indicator will illuminate, press the POWER button to turn on and turn off the unit. Cold Plasma is engaged when power is on. 2.
- Page 10 OPERATION MANUAL LED Display Error Codes: Code Description Reason Compressor Over-current Surrounding Temperature too high. Protection Hot air exhaust is obstructed. Input voltage is too high or too low. Compressor problem. Relay problem. Pressure too high in cooling Surrounding Temperature too high. system Hot air exhaust is obstructed.
- Page 11 OPERATION MANUAL OPERATION (cont.) Empty the Drain Tank During COOL mode, condensate water accumulates in the drain tank. When the drain tank becomes full, an audible chirping sound can be heard and LED displays “FL”, then the unit will cut off the power supply and stop. Note: If you want to empty the drain tank, please wait after the unit stops.
- Page 12 Optional Plug n Play Condensate Pumps are available for the CPT-12 spot cooler. Please contact your ClimaTemp reseller for condensate pump options.
-
Page 13: Daily Inspection And Maintenance
OPERATION MANUAL DAILY INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instructions on page 11. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required. - Page 14 OPERATION MANUAL Filter Cleaning Method 1. Remove filters. Dust, dirt and particulate can be removed from the filter with a vacuum cleaner, or rinse in cold or lukewarm water. If the element is extremely dirty, wash with a neutral detergent. 2.
-
Page 15: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING Check the following items before calling your ClimaTemp Portable spot air conditioner reseller or a qualified technician. CONDITION POSSIBLE CAUSE REMEDY Unit does not 1. Ground fault breaker trip or Reset breaker or reset LCDI power cord. operate breaker trip from power source. -
Page 16: Optional Accessory
OPERATION MANUAL Parts List Breakdown 88.HEPA Kit 89. Bipolar lonizer ※ Optional Accessory... -
Page 17: Limited Warranty
EXPRESS OR IMPLIED, INCLUDING BY WAY OF EXAMPLE AND NOT LIMITATION, THE IMPLIED WARRANTIES OF TITLE, MERCHANTABILITY, NONINFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE. LIMITATION ON LIABILITY NOTWITHSTANDING ANYTHING HEREIN TO THE CONTRARY, IN NO EVENT WILL CLIMATEMP PORTABLES BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING LOSS OF PROFITS, WHETHER ARISING IN CONTRACT, TORT, WARRANTY OR OTHERWISE, EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. - Page 18 OPERATION MANUAL...
