Summary of Contents for ClimaTemp Portables CT-12
-

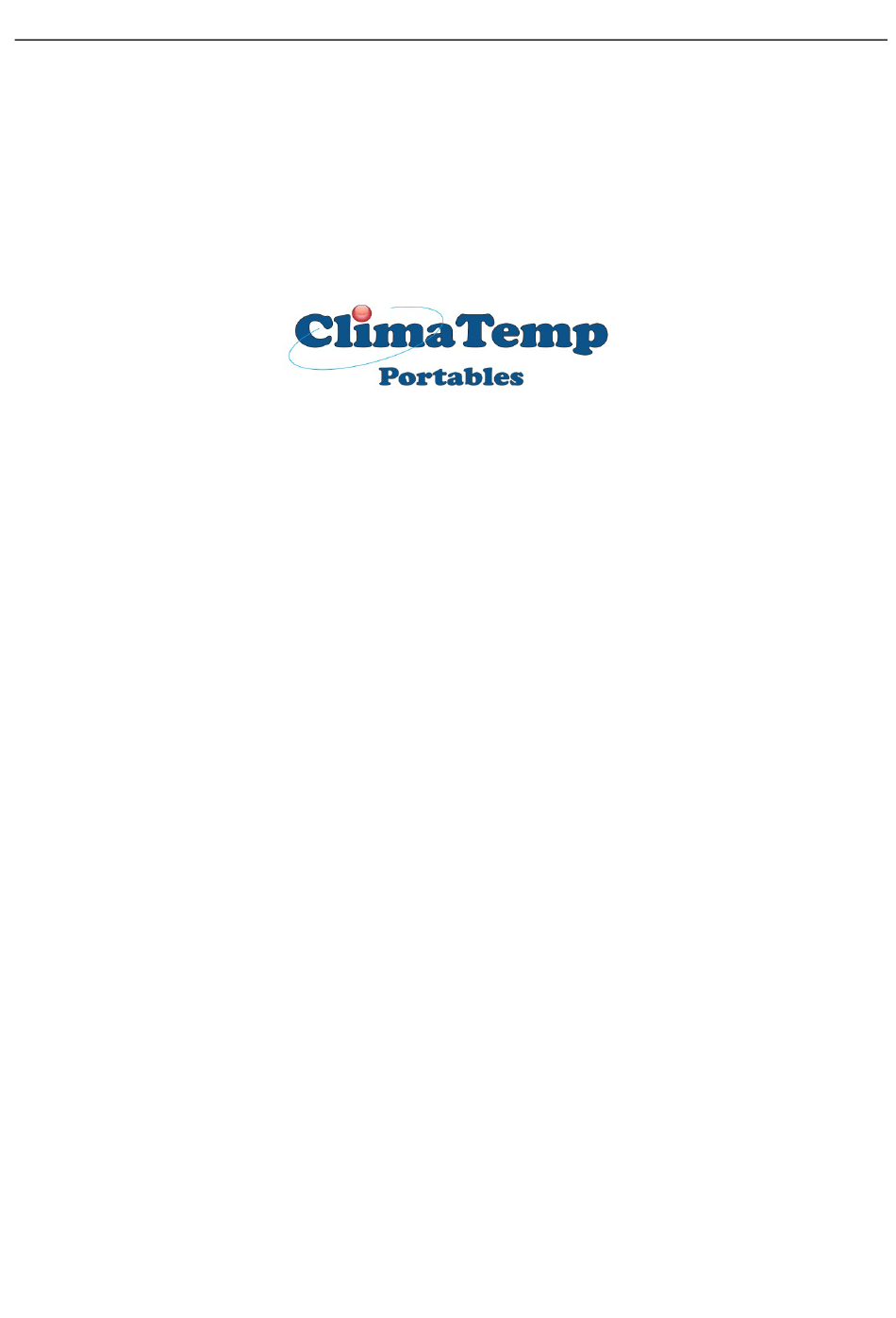

Page 1: Operation Manual

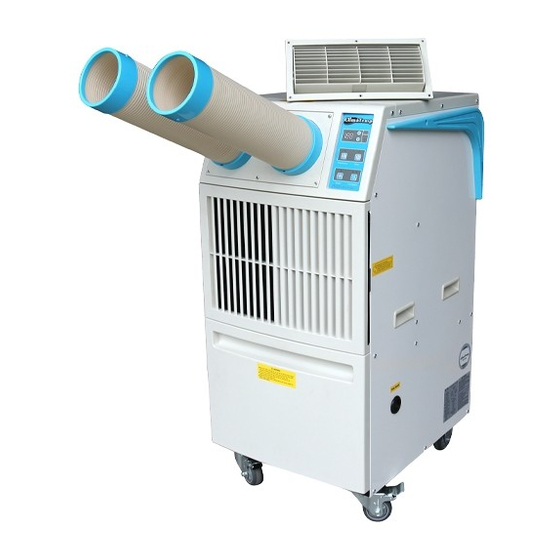

OPERATION MANUAL OPERATION MANUAL CT-12... - Page 2 OPERATION MANUAL READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS PORTABLE SPOT AIR CONDITIONER...
-
Page 3: Serial Number Location And Identification
OPERATION MANUAL SERIAL NUMBER LOCATION AND IDENTIFICATION Nameplate Label Nameplate Label Position... - Page 4 OPERATION MANUAL FOREWORD Congratulations on purchasing the ClimaTemp Portable spot air conditioner. This manual explains how to install and operate the ClimaTemp Portable spot air conditioner. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation. Definition of Terms WARNING: Describes precautions that should be observed in order to prevent injury to the user during installation or unit operation.
-
Page 5: General Warnings And Cautions
OPERATION MANUAL GENERAL WARNINGS & CAUTIONS 1. All electrical work, if necessary, should only be performed by qualified electrical personnel. Repair to electrical components by non-certified technicians may result in personal injury and/or damage to the unit. All electrical components replaced must be genuine ClimaTemp Portable spot air conditioner, purchased from an authorized reseller. - Page 6 OPERATION MANUAL INVENTORY After unpacking your ClimaTemp Portable spot air conditioner, please check to make sure you have the following items: 1. Portable spot air conditioner 2. Operation Manual/Product Registration Note: If any of these items were not included in the box or appear damaged, please contact your ClimaTemp Portable spot air conditioner reseller for replacement.
-
Page 7: Installation
LOCKED position. 6. Install the unit in areas that can withstand the weight of the unit. MODEL UNIT WEIGHT CT-12 Portable spot air 136lbs conditioner *1: Approximate weight when the drain tank is full of water. -
Page 8: Moving The Unit
OPERATION MANUAL INSTALLATION (cont.) Moving the Unit Unlock the casters and push the Portable spot air conditioner unit using the side handles to a flat, level surface and set the casters back to the LOCKED position. - Page 9 3-blade and a 3-slot receptacle that plugs into the appliance. The marked rating of the extension cord should be the following rating or equivalent. MODEL RATING OF EXTENSION CORD CT-12 115V, 15A...
- Page 10 RECOMMENDED MODEL MINIMUM POWER SUPPLY RATING FUSE SIZE CT-12 115V, single phase,60Hz,15A 15A maximum Note: 1. Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign matter.
-
Page 11: Operation
OPERATION MANUAL OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. - Page 12 OPERATION MANUAL OPERATION(cont.) Operating Method 1. Power Switch After power on, power switch LED is on, press the POWER button to turn on and turn off the unit. 2. Air volume selection Press Fan Speed to select the high or low air volume, the LED will display strong or weak, respectively.
- Page 13 OPERATION MANUAL OPERATION (cont.) Empty the Drain Tank During COOL mode, condensate water accumulates in the drain tank. When the drain tank becomes full, alarm indicator blinks and LED displays “FL”, then the unit will cut off the power supply and stop. Note: If you want to empty the drain tank, please wait after the unit stops.
- Page 14 OPERATION MANUAL OPERATION (cont.) • When the “Tank Full” light illuminates, the unit will cut off the power supply and stop. Please open the drain tank door and pull out the drain tank from the unit, remove the cap and empty the drain tank. •...
-
Page 15: Daily Inspection And Maintenance
OPERATION MANUAL DAILY INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instructions on page 12. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required. - Page 16 OPERATION MANUAL...
- Page 17 OPERATION MANUAL DAILY INSPECTION & MAINTENANCE (cont.) In-Season/Off-Season Inspection & Maintenance In-Season WARNING: To prevent an accident due to electrical shock, perform inspection and maintenance only after unplugging the power cord. 1. Check the prongs and surface of the power cord plug for dust and/or dirt. If dust and/or dirt are present, wipe off with a clean dry cloth.
-
Page 18: Troubleshooting
OPERATION MANUAL TROUBLESHOOTING Check the following items before calling your ClimaTemp Portable spot air conditioner reseller or a qualified technician. CONDITION POSSIBLE CAUSE REMEDY 1. Ground fault breaker trip or Reset breaker or reset Unit does not LCDI power cord trip. power cord. - Page 19 OPERATION MANUAL...
- Page 20 OPERATION MANUAL...
- Page 21 OPERATION MANUAL PARTS LIST Item Parts No. Description Q’ty Item Parts No. Description Q’ty PSAC35-12-04-01a Base Frame Assy. PSAC35-16-10 Muffler 3 PSAC35-56-02 Swival Wheel PSAC45AA-16-12 PSAC35-56-01 Rigid Wheel PSAC35-16-09 Muffler 2 PSAC35-20-06 Below Side Plate PSAC35-16-07 Intake Pipe CF-20-08A Float Assy. PSAC3511-04 Outlet Plate PSAC35-20-08...
- Page 22 OPERATION MANUAL Item Parts No. Description Q’ty Item Parts No. Description Q’ty CBB65 25uF250V Capacitor, Fan PSAC35-20-10 Outlet Window 250V60uF CBB65 Capacitor ,Compressor PSAC35-20-02 Blind LQ4-11-18B Capacitor Clip PSAC35-20-05 Outlet Side Plate PSAC35-20-14 Left Chafing Strip PSAC35-20-11 Electrical Box PSAC35-12-01a Left side Panel Electric control panel Electric control panel...
