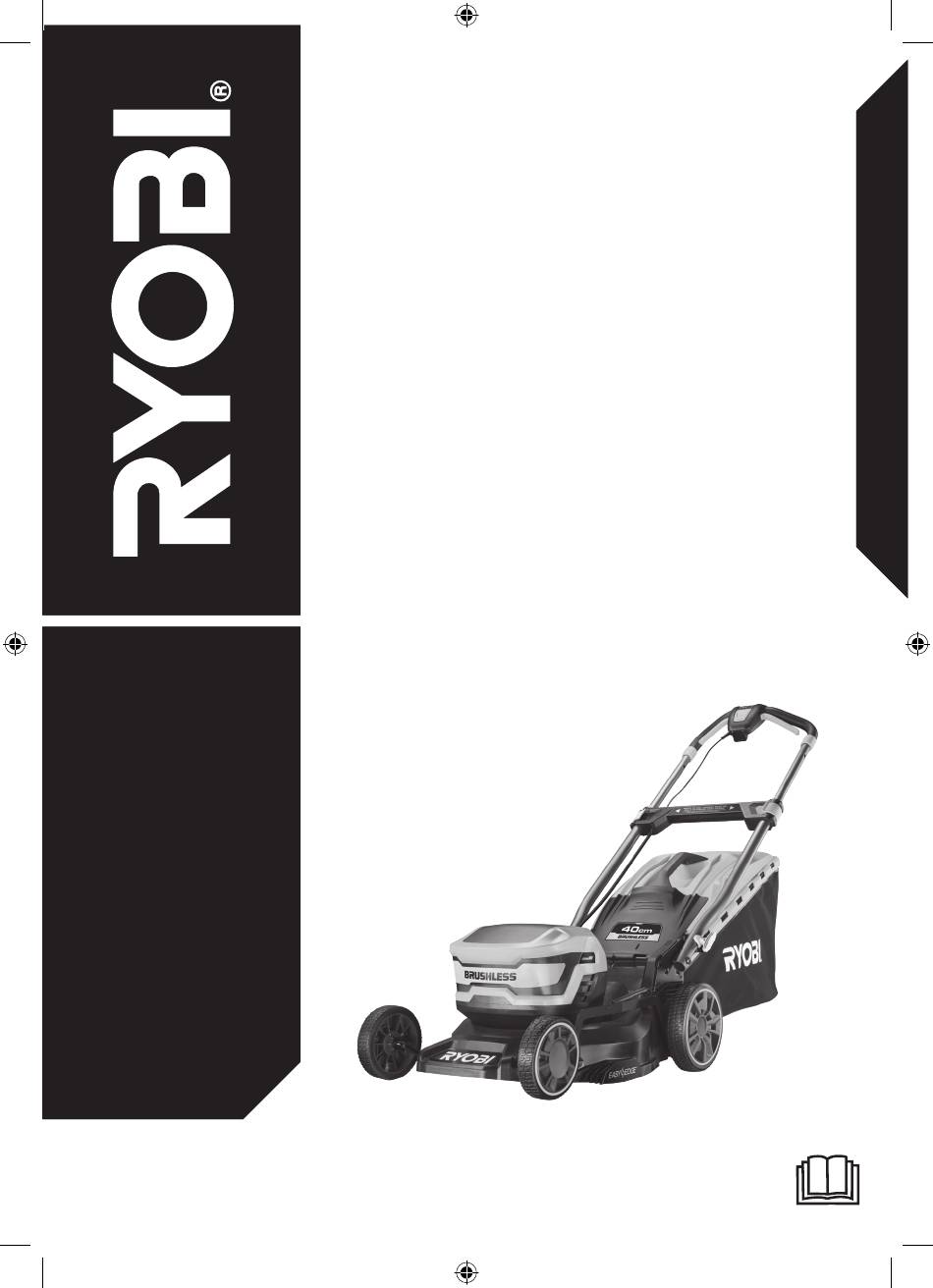

- Page 1 ORIGINAL INSTRUCTIONS Cordless Lawn Mower RLM1840BLX6 RBC36X26E RBC36X26E OLM1840BL...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
-
Page 3: Intended Use
Safety, performance, and dependability have operator. Children should be adequately been given top priority in the design of your supervised to ensure that they do not play cordless lawn mower. with the product. ■ Stay alert, watch what you are doing, INTENDED USE and use common sense when operating the product. -
Page 4: Lawn Mower Safety Warnings
product creates sparks which may ignite ■ When the battery pack is not in use, keep the dust or fumes. it away from other metal objects like, paper clips, coins, keys, nails, screws, or ■ Do not operate the product on wet grass or other small metal objects, that can make a in the rain. - Page 5 ■ Frequently check the grass catcher for instructions and keep hands and feet away wear, holes, or deterioration. from blades. Do not put hands or feet near or under rotating parts. ■ Replace worn or damaged parts before operating the product. ■...
-
Page 6: Product Features
Suggested PRODUCT FEATURES Grass Coverage height OVERLOAD AND OVERHEAT PROTECTION conditions (maximum) adjustment The product has an overload protection First Succeeding RB18L50 RB18L50 device. When overloading is detected, the pass passes product will automatically limit the current rise and slow down the cutting speed until Thin / Dry 3 →... -
Page 7: Transportation And Storage
WARNING TRANSPORTATION AND STORAGE ■ Turn off the product, and remove the Servicing requires extreme care knowledge and should be performed only isolator key and the battery pack. Make sure that all moving parts have come to a by a qualified service technician. Have the product serviced by an authorised service complete stop. -
Page 8: Residual Risks
■ Always wear heavy-duty gloves when ■ Take frequent work breaks. Limit the checking or clearing a blockage. amount of exposure per day. ■ The blades are sharp and the blockage If you experience any of the symptoms of this itself could be a sharp object. -
Page 9: Symbols In This Manual
WARNING Beware of sharp blades. Blades continue to rotate Indicates a potentially hazardous situation, after the motor is turned off. which, if not avoided, could result in death or Remove isolator key before serious injury. maintenance. CAUTION Indicates a potentially hazardous situation, Remove the battery packs before which, if not avoided, may result in minor or any cleaning or maintenance... - Page 10 WHAT’S IN THE BOX RLM1840BLX6 *Kit includes battery and charger. *For blade change 15 mm...
- Page 11 WHAT’S IN THE BOX OLM1840BL *Battery and charger are sold separately. *For blade change 15 mm...
-
Page 12: Know Your Product
KNOW YOUR PRODUCT Handle lock 10. Battery door Grass catcher LED fuel gauge Quick release fastener 12. Height adjustment lever Rear wheel 13. Grass catcher full indicator Front wheel 14. Telescopic handle Charger 15. Motor control cable Battery 16. Start button Mulching plug 17. - Page 13 GETTING STARTED GETTING STARTED GETTING STARTED GETTING STARTED Wear full eye protection, ear protection, non-slip heavy- Align the handle with the brackets using the quick-release Ensure that the handle is securely installed. Use the quick- Unlock the handle locks. Fully extend the handles. NOTE: Ensure that handles are fully extended to engage Lock the handles once they are fully extended.
- Page 15 OVERVIEW Using the product Installing the mulching plug p.15 p.16 Installing the grass catcher Cutting with Easy Edge Adjusting the cutting height p.16 p.17 p.17...
- Page 16 OVERVIEW Replacing the blade Emptying the grass catcher p.18 p.21 Cleaning the product Storing the product p.20 p.22...
-
Page 17: Operation
OPERATION USING THE PRODUCT WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Open the battery door. Insert one or two battery packs. -
Page 18: Installing The Mulching Plug
OPERATION INSTALLING THE MULCHING PLUG 1. Raise the rear door, and remove grass catcher. 2. Install the mulching plug, ensuring that it is secured and locked into place. Lower the rear door. INSTALLING THE GRASS CATCHER 1. Raise the rear door, and remove the mulching plug. - Page 19 OPERATION CUTTING WITH EASY EDGE Easy Edge allows the product to easily cut the grass along walls or the edge of your lawn. NOTE: The Grass comb pulls grass towards the blade when the product is running along a wall. ADJUSTING THE CUTTING HEIGHT To adjust the deck height, pull the height adjustment lever towards the wheel, then...
-
Page 20: Replacing The Blade
OPERATION REPLACING THE BLADE 1. Open the battery door. Remove the isolator key and battery packs from the mower. 2. Tilt the mower on its side so that the blade is vertical. 3. Clean away debris before changing the blade. 4. - Page 21 OPERATION 5. Remove and properly dispose of the blade. 6. Install the new blade. 7. Tighten the nut using a 15 mm spanner. Ensure to tighten the blade bolt to the correct torque figure. Blade bolt tightening torque (35~40 N.m)
-
Page 22: Maintenance
MAINTENANCE CLEANING THE PRODUCT After each use, clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product. -
Page 23: Emptying The Grass Catcher
MAINTENANCE EMPTYING THE GRASS CATCHER NOTE: When the indicator flap is up, the grass catcher can still store grass clippings. NOTE: When the indicator flap is down, the grass catcher is full and needs to be emptied. 1. Raise the rear door. Remove the grass catcher. -
Page 24: Storing The Product
STORAGE STORING THE PRODUCT 1. Open the battery door. Remove the isolator key and battery packs from the mower. Close the battery door. 2. Raise the rear door. Remove the grass catcher. 3. Unlock the handle locks. 4. Retract the handles. - Page 25 STORAGE 5. Lock the handles. 6. Fold the handles. 7. Place the grass catcher on top of the product. Secure the grass catcher on the crossbar using the hang strap. 8. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children.
-
Page 26: Product Specifications
