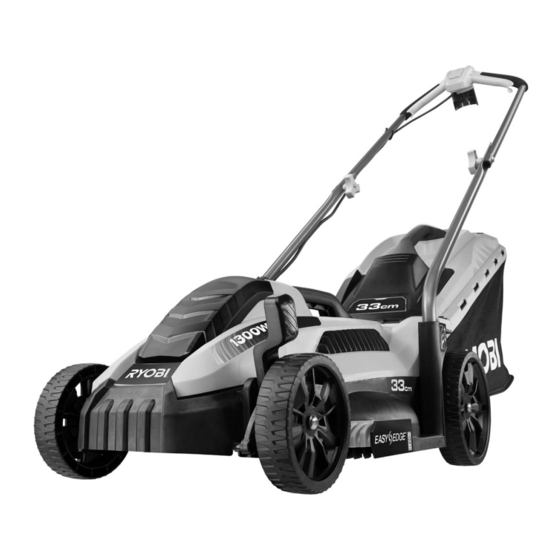

Electric lawn mower
Hide thumbs Also See for RBC36X26E:
Table of Contents

Advertisement

Quick Links

Download this manual
RLM13E33S
RBC36X26E
RBC36X26E
ORIGINAL INSTRUCTIONS
Electric Lawn
Mower

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBC36X26E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi RBC36X26E

Summary of Contents for Ryobi RBC36X26E

  • Page 1 ORIGINAL INSTRUCTIONS Electric Lawn Mower RBC36X26E RLM13E33S RBC36X26E...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
  • Page 3 Safety, performance, and dependability have ■ Walk, never run. been given top priority in the design of your For wheeled rotary mowers, mow ■ electric lawn mower. across the face of slopes, never up and down. Exercise extreme caution when INTENDED USE changing direction on slopes.

  • Page 4: Electrical Safety

    ■ Do not use the product when there is a risk body is earthed or grounded. of lightning. ■ Do not expose the product to rain or wet ■ Tragic accidents can occur if the operator conditions. Water entering the product is not alert to the presence of children.

  • Page 5: Lawn Mower Safety Warnings

    ■ The blade on the product is sharp. Use LAWN MOWER SAFETY WARNINGS extreme caution and wear heavy-duty ■ Caution — Do not touch rotating blade. gloves when fitting, replacing, cleaning, or ■ Before use, always visually inspect checking bolt security. to ensure that blades, blade bolts, ■...

  • Page 6: General Mowing Tips

    When the motor has cooled down, connect WARNING the plug to the power supply. Press the start Use extreme caution when lifting or tilting button, and squeeze the on/off trigger to the product for maintenance, cleaning, turn on the product. If the product still does storage, or transportation.

  • Page 7: Clearing Blockages

    to prevent entrapment of the fingers RISK REDUCTION between moving blades and fixed parts of It has been reported that vibrations from the product. hand-held tools may contribute to a condition ■ When servicing the blades, be aware that called Raynaud’s Syndrome. Symptoms may even though the power source is turned off, include tingling, numbness, and blanching of the blades can still be moved.

  • Page 8: Symbols On The Product

    SYMBOLS ON THE PRODUCT Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Stop Wear ear protection. Class II tool, double insulation Wear eye protection. Waste electrical products Do not operate the product should not be disposed of on inclines greater than 15°.
  • Page 9 DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
  • Page 10 WHAT’S IN THE BOX RLM13E33S *For blade change 13mm...

  • Page 11: Know Your Product

    Know your product KNOW YOUR PRODUCT 1. Power cord retainer 8. Front wheel 2. Start button 9. Height adjustment lever 3. Power cord 10. Motor control cable retainer 4. Cord hook 11. On/off trigger 5. Grass catcher full indicator 12. Motor control cable 6.

  • Page 12: Getting Started

    GETTING STARTED Wear full eye protection, ear protection, non-slip heavy- Insert the bottom handles into the lawn mower until duty gloves, substantial footwear, and long trousers at these snap in place. The handle has 3 levels of height all times while operating the product. Do not operate the adjustment.
  • Page 13 GETTING STARTED GETTING STARTED Raise the rear door. Install the grass catcher, hooking it to NOTE: The grass catcher collects grass clippings Attach the cord hook to the left-hand top handle. Align the Insert the motor control cable into the motor control cable the mower.
  • Page 15 OVERVIEW Using the product p.15 Cutting with Easy Edge Adjusting the cutting height p.16 p.16 p.17...
  • Page 16 OVERVIEW Replacing the blade Cleaning the product p.17 p.19 Emptying the grass catcher Storing the product p.20 p.21...

  • Page 17: Operation

    OPERATION USING THE PRODUCT WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. 1. Connect the power cord to the extension cord.
  • Page 18 OPERATION CUTTING WITH EASY EDGE Easy Edge allows the product to easily cut the grass along walls or the edge of your lawn. NOTE: The grass comb pulls grass towards the blade when the product is running along a wall. ADJUSTING THE CUTTING HEIGHT To adjust the deck height, pull the height adjustment lever towards the wheel, then...
  • Page 19 OPERATION REPLACING THE BLADE 1. Disconnect the power cord. 2. Tilt the mower on its side so that the blade is vertical. 3. Clean away debris before changing the blade. 4. Use a wood chock to stop the blade from spinning during loosening and tightening.
  • Page 20 OPERATION 5. Remove properly dispose of the blade. 6. Install the new blade and bolt. 7. Hand-tighten the blade bolt by turning clockwise, then use a 13 mm spanner to further tighten bolt by 1/2-1 turn (35~40 Nm torque). Blade bolt tightening torque (35~40 Nm)

  • Page 21: Maintenance

    MAINTENANCE CLEANING THE PRODUCT After each use, clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product.
  • Page 22 MAINTENANCE EMPTYING THE GRASS CATCHER NOTE: When the indicator flap is up, the grass catcher can still store grass clippings. NOTE: When the indicator flap is down, the grass catcher is full and needs to be emptied. 1. Raise the rear door. Remove the grass catcher.
  • Page 23 STORAGE STORING THE PRODUCT 1. Disconnect the power cord. 2. Remove the grass catcher. 3. Loosen the quick-release knobs, and fold the top handle forward. 4. Press handle release button, remove the bottom handles on each side.
  • Page 24 STORAGE 5. Place the folded handle and grass catcher on top of the product. Secure the grass catcher on the crossbar using the hang strap. 6. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts.

  • Page 25: Product Specifications

    PRODUCT SPECIFICATIONS VIBRATION LEVEL Product name Electric WARNING Lawnmower The declared vibration value has been Model RLM13E33S measured with a standard test method and may be used to compare one tool with Rated voltage 220-240V ~50Hz another. Rated power 1300 W The declared vibration value may be used in a preliminary assessment of exposure.
  • Page 28 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...
