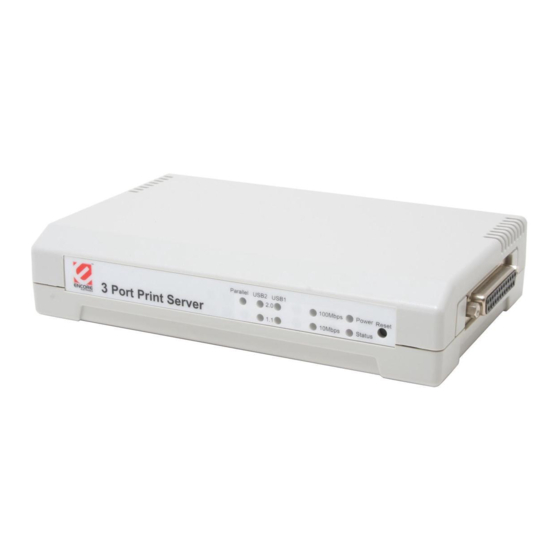

Encore ENPS-2012 Instruction Manual

External print server
Hide thumbs Also See for ENPS-2012:
Table of Contents

Advertisement

Quick Links

Trademarks
NetWare is a registered trademark of Novell Inc and
Windows 95/98/Me and Windows NT/2000/XP/2003 are
registered trademarks of Microsoft Corp. All other brands
and product names are trademarks of their respective
companies.
Copyright
No part of this publication may be reproduced in any form
or by any means or used to make any derivative (such as
translation, transformation or adaptation) without the
express written consent of the manufacturer as stipulated
by the United States Copyright Act of 1976.
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to subpart J
of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
when the equipment is operated in a commercial
environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference in which the user will be required to
correct the interference at their own expense.
All contents are subject to change without prior
notice.
Part No. 7339AU-V2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENPS-2012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Encore ENPS-2012

Summary of Contents for Encore ENPS-2012

  • Page 1 Trademarks NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows NT/2000/XP/2003 are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies. Copyright No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated...

  • Page 3: Table Of Contents

    Table of Contents OPYRIGHT 1. INTRODUCTION ...1-1 RODUCT VERVIEW ARDWARE NSTALLATION 2. PRINT SERVER INSTALLATION ...2-1 ...2-1 REPARATION UPPORTED ETWORKS ONFIGURATION 3.THE PSADMIN UTILITY FOR WINDOWS-BASED ...3-1 NSTALLING THE ...3-2 SING DMIN ...3-4 IZARD ...3-7 ANUAL ETUP –TCP/IP O ROPERTIES ...3-10 PGRADE ...3-11...
  • Page 4 ONFIGURING AND HP W EMOVING 5. CONFIGURATION FROM EMBEDDED WEB SERVER ...5-1 ...5-1 VERVIEW SING MBEDDED ...5-2 TATUS ...5-11 ETUP NSTALLING RINT ETTING ACINTOSH 6. NETWORK PRINT MONITOR ...6-1 ...6-1 REPARATION 95/98/M INDOWS ...6-5 ROCEDURE NINSTALLING ETWORK 95/98/M /NT/2000/XP/2003 ...6-9 7.
  • Page 5 PGRADING THE PRINT SERVER FROM NT/2000/XP/2003 (T PGRADING THE PRINT SERVER FROM TCP/IP) ...8-3 PGRADING THE PRINT SERVER FROM 9. TROUBLESHOOTING ...9-1 ENERAL ROUBLESHOOTING LED L IGHT NDICATORS ABLE ELATED OWER ELATED RINT ELATED 95/98/M INDOWS ROUBLESHOOTING ULTI EGMENT OVING THE RINT OVING OMPUTER TO...

  • Page 7: Introduction

    1. Introduction Product Overview The external print servers enhance company capability by letting you place your printers, plotters, or equality printers at convenient locations directly on the Ethernet network, and by increasing network printer performance and management. Network Management print...

  • Page 8: Network Configuration

    Introduction Network configuration The print servers provide an embedded web server that can be accessed via a prop web browser. We also subsidiary Windows-based PSAdmin utility which help administrator to setup print server environment, for example, Netware, NT/2000/XP/2003, Mac or Unix system.

  • Page 9: Components And Features

    Components and Features Three Ports Print server ․1 Bi-direction parallel port (IEEE 1284) for port 1(PID1) ․2 USB 1.1 ports for port 2, 3(PID2, 3) ․Fast Ethernet network port: RJ-45 for 10Base-T or 100Base-TX ․POST (Power On Self Test) ․3 LED’s on top of indicate Status, USB and Parallel light and 2 LEDs by the side of power, link lights ․2 setup diskette or 1 CD for Windows 95/98/Me/NT/2000/XP/2003...

  • Page 10: Hardware Installation

    Introduction Hardware Installation To install the print servers, you need to complete these steps: ․Confirm that your printer parallel port(s) work well. ․Connect the print server to the network and printer(s) and plug in the print server. ․Generate a configuration page from the print server.

  • Page 11: Rear Panel

    5. Plug the AC power adapter into the power receptacle in the side of the print server. 6. Plug the AC power module into the wall out-let, the print server is switched on after you plug it in. 7. Check the LED’s marked as status on topside or beside of the print server.

  • Page 13: Print Server Installation

    Print Server Installation Print Server Installation Preparation To best meet users’ network printing needs in today’s heterogeneous multiple protocol networking environments, the print server supports industrial standard protocols, including TCP/IP, IPX/SPX, NetBEUI and AppleTalk. This means that the print server supports the most popular network operating systems today, including NetWare, Windows 95/98/Me/NT/2000/XP/2003, UNIX systems and Macintosh computer.

  • Page 14: Configuration Solution Table

    Print Server Installation Configuration Solution Table Setup Operating System PSAdmin utility Windows 95/98/Me Windows NT/2000/XP/2003 NetWare 3.12, 4.x, Embedded Web server Windows 95/98/Me Windows NT/2000/XP/2003 NetWare 3.12, 4.x, HP Web JetAdmin Windows NT/2000/XP/2003 NetWare 3.12, 4.x, Internet Printing Protocol Windows 2000/XP/2003 2 -2 Function...
  • Page 15 Print Server Installation Comment Configuration solution Table has many installations way to setup Windows 95/98/Me, Windows NT/2000/XP/2003, NetWare, UNIX system and Mac computer. Firstly, we introduce PSAdmin utility, HP Web JetAdmin program and Internet Printing Protocol solution. Finally, we will be discussed Embedded Web Server Installation with print server.

  • Page 17: The Psadmin Utility For Windows-Based

    The PSAdmin Utility for Windows-based The PSAdmin is a proprietary Windows-based management program that can assist you in configuring and managing your print server in NetWare environments. The program can be run from any Windows-based PC. Installing the PSAdmin To install PSAdmin, please follow the directions listed below.

  • Page 18: Using Psadmin

    The PSAdmin Utility for Windows-based The Setup program will ask you to select installation files as described below: Network Print Monitor: installs Print server Windows PSAdmin: installs Print server Windows utility for NetWare and IP Configuration utility. Select “PSAdmin”. Click Next. The Setup program will begin to copy files into your local hard disk and finally automatically create the “PSAdmin”...
  • Page 19 The PSAdmin Utility for Windows-based Device Name: The name of the print server hardware used for identification purposes. MAC Address: The Ethernet address of the print server. Print Server Name: The print server to which the device is attached. Version: The firmware version of the print server. Status: To come up a Printer’s status presently.

  • Page 20: Wizard

    The PSAdmin Utility for Windows-based Wizard Wizard is a configuration program that can assist you in setting up the necessary parameters for your print server device to function. Setup a print server by using Wizard. TCP/IP Wizard Click Wizard button just like a picture ＜ select TCP/IP Wizard.

  • Page 21: Netware Wizard

    The PSAdmin Utility for Windows-based In the IP Address option, type an IP address for the print server. The IP address must meet the IP addressing requirements of the network segment. (Optional) In the Subnet Mask option, type the Subnet Mask your LAN or network segment is currently configured to use.
  • Page 22 The PSAdmin Utility for Windows-based Click Wizard button just like a picture ＜ select NetWare Wizard, as follow picture. Select the NetWare File Server to which the print server device will be attached. Type in a Print server. Type in a Print Queue Names. Note: Each print queue corresponds to each print port of the print server.

  • Page 23: Manual Setup

    The PSAdmin Utility for Windows-based From your NetWare client computer, such as Windows 95/98/Me, create a printer that is connected (redirected) to one of the NetWare print queues serviced by the print server. Manual Setup Manual Setup is a configuration program designed for more experienced users of NetWare.
  • Page 24 The PSAdmin Utility for Windows-based Select NetWare and type in the Print server that created during PCONSOLE. (Optional) In Bindery Settings, Select NetWare file server(s) that print server can do Bindery mode. (Optional) In NDS Settings, Select NetWare file server(s), NetWare 4.x or later that print server can do NDS mode.

  • Page 25: Properties -Tcp/Ip Options

    The PSAdmin Utility for Windows-based Properties –TCP/IP Options The TCP/IP options allow you to modify the print server’s TCP/IP settings. Each option is detailed as follows. Obtain an IP address from a DHCP server: This option enables or disables the DHCP feature of the print server.

  • Page 26: Upgrade

    The PSAdmin Utility for Windows-based Specify an IP address: IP Address: This option shows the print server’s current IP address maybe obtained from your DHCP server or manually specified. This option also allows you to manually specify an IP address to the print server, if DHCP option is disabled.

  • Page 27: Reset

    The PSAdmin Utility for Windows-based Select General Upgrade. Make sure that the upgrade file is located in the same directory as PSAdmin. The upgrade filename is mps17.bin. Reset 1. Click Reset button just like a picture ＜ 2. Reset allows the user to reset the print server device in order to establish a new connection or for new settings to take effect.

  • Page 28: Refresh

    The PSAdmin Utility for Windows-based Refresh 1. Click Reset button just like a picture ＜ 2. Refresh searches the network for all attached print server(s). Note: Configure the print speed in the Advanced label, must match the printer’s speed which connect to the print server.

  • Page 29: Psadmin On Window Pc

    The PSAdmin Utility for Windows-based Select the “Print server Configuration” option and select the ”Queue Serviced by Printer” option (For NetWare 4.x’s PCONSOLE, please select “Printers” option and select “Printer 0” instead). Select the “Printer 0” and press the [Insert] key to add the print queues you create in Step 6 into the list (For NetWare 4.x’s PCONSOLE, please select “Print queues assigned”...
  • Page 30 The PSAdmin Utility for Windows-based Click Start, point to Settings, and select Control Panel. Double click the Add/Remove Programs icon. Click Change or Remove Programs tab. Select Network Print Monitor for Windows 95/98/NT/2000 and click Change/Remove button. The un-installation wizard program will be launched. Follow the directions on the screen to complete the un-installation procedure.

  • Page 31: Internet Printer Connection And Hp Web Jetadmin

    Internet Printer Connection and HP Web JetAdmin 4.Internet Printer Connection and HP Web JetAdmin IPP Overview Print server(s) support the Internet Printing Protocol (IPP). Using the appropriate software on your system, you can create an IPP print path from your system as Windows PC over the Internet.

  • Page 32: Internet Printer Connection And Hp Web Jetadmin

    Internet Printer Connection and HP Web JetAdmin 2. Select Settings, and then select “Printers” option. 3. Click Add Printer icon. Appear welcome to the add printer wizard, Click Next. 4. Select Network printer option, and then click “Next”. 5. Select Connect to a printer on the Internet or on your intranet option, appear as follow picture.
  • Page 33 Internet Printer Connection and HP Web JetAdmin will appear as follow picture. Then Click OK. 8. Select the appropriate printer manufacturer and printer type and click “Next”, appear as follow picture. 9.If you want your Windows-based programs to use this printer as the default printer, please select “Yes”, and Click Next.

  • Page 34: Hp Web Jetadmin Overview

    Internet Printer Connection and HP Web JetAdmin 10. Click Finish button. 11. Done. HP Web JetAdmin Overview HP Web JetAdmin allows you to use a Web browse to revise, view, manage and diagnose devices connected to the print server or any standard printer MIB devices. For more information about a procedure or Windows in the HP Web JetAdmin software, see about HP’s relation document.

  • Page 35: Installing Hp Web Jetadmin

    Internet Printer Connection and HP Web JetAdmin and browser versions, we recommend IE or Netscape version 4 or higher. Please access HP Customer Care Online at http://www.hp.com/go/webjetadmin. Note: When installed on a supported host server, HP Web JetAdmin can be accessed from any client through a supported Web browser by browsing to the HP Web JetAdmin host.

  • Page 36: Configuring And Modifying A Device

    Internet Printer Connection and HP Web JetAdmin domain port/ where server domain is the host name of your web server and port is the port number assigned during installation. ․Supply users access to HP Web JetAdmin software by adding a link to your web server’s home page that is addressed to HP Web JetAdmin’s URL.

  • Page 37: Configuration From Embedded Web Server

    Configuration from Embedded Web Server Configuration from Embedded Web Server Overview The Print Server contains an embedded web server that can be accessed through a supported web browser on a LAN, for example, IE 4.0, Netscape 4.0 or above is recommended.

  • Page 38: Configuration From Embedded Web Server

    Configuration from Embedded Web Server Status Menu Once you have finished the IP address configuration with print server. You should be use web browser to view and management the print server. The status menu of the print server helps administrator control the print server’s System, Printer, NetWare, TCP/IP, SNMP and AppleTalk of status for the time being.
  • Page 39 Configuration from Embedded Web Server Device Name: This option allows you to view device name of the print server. To correct the print server’s device name. System Contact: This option allows you to view contact System Location: This option allows you to view Location System Uptime: This option allows you to view uptime of the print server.

  • Page 40: Printer Status

    Configuration from Embedded Web Server Firmware Version: This option allows you to view MAC Address: This option allows you to view Node ID of the print server. The Node ID is unique from any print server. Printer Status 1. Click Status, it then appears the sub-menu. 2.

  • Page 41: Netware Status

    Configuration from Embedded Web Server with the print server, it will be show in the manufacture box. Model Number: This option allows you to view model of the printer. When the printer connected with the print server, it will be show in the model box.
  • Page 42 Configuration from Embedded Web Server General Settings: Print Server Name: This option allows you to view print Polling Time: This option allows you to view polling time from the print server. This function is search for NetWare Server by per time. NetWare NDS Setting: Use NDS Mode: Enable or Disable.
  • Page 43 Configuration from Embedded Web Server Use Bindery Mode: Enable or Disable. Name of the File Server. Current Status: Connect or Disconnect. TCP/IP Status 1. Click Status, it then appears the sub-menu. 2. Click TCP/IP, it then as shown in the following picture. Use DHCP/BOOTP: This option allows you to view DHCP/ BOOTP status.

  • Page 44: Snmp Status

    Configuration from Embedded Web Server obtain IP-related settings automatically from your DHCP server. IP Address: This option allows you to view IP address from the print server. The IP address must meet the IP addressing requirements of the network segment. Subnet Mask: This option allows you to view subnet mask from the print server.
  • Page 45 Configuration from Embedded Web Server SNMP Communities: This option allows you to view SNMP Traps: This option allows you to view SNMP traps from the print server. AppleTalk Status 1. Click Status, it then appears the sub-menu. 2. Click AppleTalk, it then as shown in the following picture.
  • Page 46 Configuration from Embedded Web Server Zone Name: If no any zone exists, the print server itself displays the zone name as an asterisk (*) in the current AppleTalk Status of the print server in the web browser. Port Name: <ATALK_PS>-xxxxxx-1, where xxxxxx represents the last six digits of the print server’s Node ID.

  • Page 47: System Setup

    Configuration from Embedded Web Server Setup Menu Meanwhile, you have finished the IP address configuration with print server. You should be use web browser to configure the print server. The setup menu of the print server helps administrator to setup the print server’s System, Printer, NetWare, TCP/IP, SNMP and AppleTalk.
  • Page 48 Configuration from Embedded Web Server Device Name: This option allows you to input device name of the print server. To correct the print server’s device name. System Contact: This option allows you to input contact System Location: This option allows you to input Location Password: This option allows you to input setup password of the print server.

  • Page 49: Printer Setup

    Configuration from Embedded Web Server Re-type Password. ․User Name: You must be input the default administration user name, admin as login user name. ․Password: The default password is empty. After setup password is completed from the print server, you should to remember this password to input password box.

  • Page 50: Netware Setup

    Configuration from Embedded Web Server Bi-directional: This option allows you to select the bi-directional of the print server. There are two ways to select this option, includes Disable or Auto Detect. NetWare Setup 1. Log into your NetWare file server as a Supervisor (Admin.) or equivalent.
  • Page 51 Configuration from Embedded Web Server Print Server Name: This option allows you to input print Polling Time: The time interval in which the print server unit polls the file server for servicing of print queues. Logon Password: This option allows you to input NDS Mode: To Enable NDS Mode, if you want to setup NDS environment.

  • Page 52: Installing Print Server On Netware

    Configuration from Embedded Web Server Bindery Mode: To Enable Bindery Mode, if you want to setup Bindery environment. To select File Server Name of NetWare. Installing Print Server on NetWare 4.x/5.x Due to its architecture and functionality, the print server must work under NetWare 4.x/5.x NDS Bindery Emulation.

  • Page 53: Installation Procedure

    Configuration from Embedded Web Server Installation Procedure At your file server console, type “load install”. Select “NCF files options”. Select “Edit AUTOEXEC.NCF file”. Add or Modify the “SET BINDERY CONTEXT =” line to include the NDS organization (O) and all organization unit (OU) objects where users are located.
  • Page 54 Configuration from Embedded Web Server Note: Please refer to NetWare’s Print Server/Services manuals for detailed PCONSOLE commands. TCP/IP Setup 1. Click Setup, it then appears the sub-menu. 2. Click TCP/IP, it then as shown in the following picture. DHCP/BOOTP: This option allows you to select DHCP/ BOOTP option.
  • Page 55 Configuration from Embedded Web Server IP Address: This option allows you to input IP address from the print server. The IP address must meet the IP addressing requirements of the network segment. Subnet Mask: This option allows you to input subnet mask from the print server.
  • Page 56 Configuration from Embedded Web Server When accessing (traversing) MIB objects in the print server using NMS software called SNMP manager, you need to provide a community name in each SNMP request for authentication purpose. The print server supports up to two community names.
  • Page 57 Configuration from Embedded Web Server In the print server's SNMP implementation, the following MIB objects are available for updating. MIB Object Names system.sysContact system.sysName system.sysLocation snmp.snmpEnableAuthenTraps print server is configured with (stored in the print server's memory), authentication failure trap message is generated.
  • Page 58 Configuration from Embedded Web Server Users can set up print server’s SNMP functions by using their browsers. 1. Click Setup, it then appears the sub-menu. 2. Click SNMP, it then as shown in the following picture. SNMP Community: The print server supports up to two Support HP WebJetAdmin: This option allows user 5 - 22 community names.

  • Page 59: Appletalk Setup

    Configuration from Embedded Web Server SNMP Traps: Enable the function of sending SNMP Authentication Failure trap message to the network administrator, if the community name within a SNMP request is not correct. AppleTalk Setup The print server can print jobs submitted from Macintosh workstations connected to an Ethernet using AppleTalk protocol.
  • Page 60 Configuration from Embedded Web Server 3. Zone Name: In this option, type an AppleTalk Zone name that you want the print server to belong to or leave it in default (This enables the print server automatically search and link itself to the default zone that is set on the AppleTalk router, if found).

  • Page 61: Setting Up A Macintosh Computer

    Configuration from Embedded Web Server Setting Up a Macintosh Computer At a Macintosh computer, from the Apple menu, select Chooser. The Chooser window then displays an Apple Zone list. Select the Zone name that you specified when configuring the PRINT SERVER. Note: If you select a Zone that the PRINT SERVER doesn’t belong to, as you specified in the previous section, no print server will be displayed in the Step...
  • Page 62 Configuration from Embedded Web Server Click Setup… button and choose the PPD file matching your printer, and click OK. If your printer does not appear in the PPD file list, please contact your printer vendor. You may also use the Generic PPD if you do not need any printer specific features.

  • Page 63: Network Print Monitor

    6. Network Print Monitor Preparation The print server supports TCP/IP, IPX/SPX and NetBEUI protocols under Windows 95/98/Me/NT/2000/XP/2003. Please make sure that the following steps have been completed before proceeding with installation under Windows PC. Select A Desired Protocol TCP/IP The TCP/IP Protocol must be installed. For further information, please read “TCP/IP Protocol Installation”...
  • Page 64 Network Print Monitor IPX/SPX The IPX/SPX-compatible Protocol must be installed. For further information, please read “IPX/SPX-compatible Protocol Installation” section in this chapter. NetBEUI The NetBEUI protocol must be installed. For further information, please read “NetBEUI Protocol Installation” section in this chapter. TCP/IP Protocol Installation Click Start, point to Settings and select Control Panel.

  • Page 65: Ipx/Spx-Compatible Protocol Installation

    Specify an IP address, Subnet Mask, and Gateway address or specific “Obtain IP address automatically”, if a DHCP server is available on the LAN. Restart the computer. Done. Note: Using TCP/IP protocol to access the print server requires well-configured TCP/IP settings. If you are not familiar with these settings, please consult your network administrator for details or ask for help.

  • Page 66: Netbeui Protocol Installation

    Network Print Monitor Done. NetBEUI Protocol Installation Click Start, point to Settings, and select Control Panel. Double click the Network icon. If the NetBEUI is not already installed, click Add. Select Protocol and click Add. Select Microsoft from the Manufacturers list. Select NetBEUI from the Network Protocols box and follow the instructions on the screen.

  • Page 67: Installation Procedure

    Windows Installation Procedure Please perform the steps as follows to ensure a smooth installation: Run Setup from the print server’s NetWare, Win 95/98/Me/NT/2000 Setup diskette Network 95/98/Me，NT/2000/XP/2003 Setup will then appear. Click Next. A message reading, “Setup is complete. You may add the Network Print Port by using the PSAdmin”...
  • Page 68 Network Print Monitor 10. A message reading, “After your printer is installed, Windows can print a test page so you can confirm that the printer is set up properly.” Select No and click Finish. 11. Double-click the newly created Printer Name icon. 12.
  • Page 69 Network Print Monitor 16. The Add Port box will then appear, along with the print server’s Node ID (The last 6 digits of the Node ID, located on the back of the print server unit). Select one printer server port from the list, which is now connected to (one of) your printer(s), as shown in the following picture.
  • Page 70 Network Print Monitor If the IPX/SPX protocol is not installed, no print server will be shown in the display box. Then please select TCP/IP or NetBEUI alternatively. It starts again to search for the print server on the network by using the protocol you specify in the step above.

  • Page 71: Procedure

    Uninstalling Network Print Port on Windows 95/98/Me/NT/2000/XP/2003 To provide users an easiest way to remove all of the Network Print 95/98/Me/NT/2000/XP/2003, the Network Print Port software comes with un-installation wizard program to help users remove the software components from their Windows 95/98/Me/NT/2000/XP/2003 systems in minutes.
  • Page 72 Network Print Monitor Note: We recommend you restart your computer after un-installation is finished. 6 - 10...

  • Page 73: Tcp/Ip Lpr Port Printing Installation

    TCP/IP Port Printing Installation Basic TCP/IP Installation Overview When installing your print server in a TCP/IP environment, IP addresses are essential as a basic means of communications. It is therefore necessary to first assign an IP address to your print server unit. After assigning an IP address, the print server can be configured accordingly.

  • Page 74: Dhcp

    TCP/IP LPR Port Printing Installation 2. Manually specify (using DOS commands or UNIX text-mode commands. This applies to Windows systems). Note: The Network Print Monitor can only search for the print server(s) over the same network segment the Windows NT/2000/XP/2003 computer is located. You would like to install a print server on a different network segment.
  • Page 75 TCP/IP LPR Port Printing Installation Click Add Port. From the Printer Ports box as shown in the following picture, select the LPR Port. The Add LPR compatible printers box will then appear as shown in the following picture. Type in the IP address assigned to the print server in the Name or address of server providing lpd box.
  • Page 76 TCP/IP LPR Port Printing Installation In the Name of printer or print queue on that server box, type in a printer name, for example, lp1. Click In the Printer Ports box, select Close. Click Next. 10. Select the appropriate printer manufacturer and printer type list and click Next.

  • Page 77: Windows 2000 Standard Tcp/Ip Port Printing Installation

    TCP/IP LPR Port Printing Installation Windows TCP/IP Port Printing Installation Click Start, point to Settings, and select Printer. Run Add Printer, Click Next. The Add Printer Wizard screen will appear, Select Local Printer and click Next. From the type of Create a new port box as shown in the following picture, select the Standard TCP/IP Port, Click Next and Next.
  • Page 78 TCP/IP LPR Port Printing Installation The Add Standard TCP/IP Printer Port Wizard box will then appear as shown the picture as below, and type in the IP address assigned to the print server in the Printer Name or IP Address box, Click Next. In the Add Standard TCP/IP Printer Port Wizard box as shown in the following picture, Select Custom, Click Settings button, and click Next.
  • Page 79 TCP/IP LPR Port Printing Installation In the Configure Standard TCP/IP Port Monitor box as shown in the following picture, select LPR form Protocol, type in a queue name, for example, lp1. Click OK, and Next. 7 - 7...
  • Page 80 TCP/IP LPR Port Printing Installation Note: Please DO NOT type any other name than lp1 in this step. Click Finish. 10. Select the appropriate printer manufacturer and printer type list and click Next. 7 - 8...

  • Page 81: Unix Installation

    SCO UNIX (OpenServer 5.0.x) Login root Type “arp -s <IP address> <Print server‘s node ID>” The Print servers node ID can be found from the white label on the backside of the Print Server. For example: arp -s 192.72.214.103 00:40:01:05:01:8c...
  • Page 82 TCP/IP LPR Port Printing Installation Type “ping < Print server‘s IP address>” For example: ping 192.72.214.103 (You should get the responses from the print Server). Type “tftp < Print server‘s IP address>” For example: tftp 192.72.214.103 At the tftp prompt, type “get config.txt” to retrieve the Print Server‘s configuration file.
  • Page 83 TCP/IP LPR Port Printing Installation After this step, the Remote Printer Configuration appears. Answer the questions as follows: a. Do you want to install or remove printing (i/r/q) ? [q] : -----> i b. Do you wish to change the printer description file /etc/printcap (y/n) [n] ? --------->...

  • Page 84: Sun Solaris

    TCP/IP LPR Port Printing Installation h. Would you like this to be the system default printer ? (y/n) [n]------->answer this question if you like to make it as a default printer. Do you want to install or remove printing (i/r/q) ? [q] : ------->...
  • Page 85 TCP/IP LPR Port Printing Installation For example: tftp > get config.txt Quit from tftp, and then use your editor to modify the “05 BoxIPAddress” field in the config.txt file from 0.0.0.0 to the IP address you specify in Step 2. (Optional) Modify the "06 Gateway"...
  • Page 86 TCP/IP LPR Port Printing Installation 12. Type “accept printer-1” For example: accept printer-1 13. Type “enable printer-1” For example: enable printer-1 14. Submit print jobs by “ lpr ” command. For example: lpr -Pprinter-1 /etc/hosts IBM AIX 4.xx Login root. (Optional) Edit the /etc/hosts file.
  • Page 87 TCP/IP LPR Port Printing Installation Note: You can add the host name associated with the IP address in the /etc/hosts file. If you have done this, please use the host name instead of the IP address. 12. I n the Name of Queue on Remote Server option, type in a print queue name.
  • Page 88 TCP/IP LPR Port Printing Installation c. Assign Print Server an IP address. At shell mode: c.1. arp -s <the IP address you want to assign to the Print Server> < Print Server 's Node ID> c.2. Execute tftp < Print Server 's IP> get config.txt and quit tftp.
  • Page 89 TCP/IP LPR Port Printing Installation In the Queue field, type a print server’s port name which connect to the printer. For example: lp1. m. Click Next button. n. In the Printer field, choose Postscript Printer. o. Done. UnixWare 7 Login root. Run CDE (Common Desktop Environment).
  • Page 90 TCP/IP LPR Port Printing Installation Select your printer’s make and model from the Make/Model list. 10. In Printer Connection Type, select On Remote Server. 11. It then appears a (new) Remote System option. Type the IP address of the print server. 12.

  • Page 91: Upgrading Print Server

    8.Upgrading Print Server Overview Upgrading print server will allow you to replace its firmware inside the print server while the newer software version of the print server is available from your local dealer. Depending on the different systems users might use, this chapter is divided into several Sections, please refer to the following list for your systems.
  • Page 92 Upgrading Print Server 2.Before upgrading print server, please ensure print server is not printing jobs. In case of printing, you have to wait till the current print job is finished before you can proceed. Upgrading PSAdmin Log into your NetWare file server as a Supervisor (Admin.) or equivalent.

  • Page 93: Upgrading The Print Server From Unix (Through Tcp/Ip)

    At NT/2000’s DOS prompt, and type “tftp <print server’s IP address > get upgrade“. Type “tftp –i <print server’s IP address> put mps17.bin“. Wait for the transfer successful message. Done! Upgrading the Print Server from UNIX (Through TCP/IP) Log in as root Ensure mps17.bin is located in your current working directory.

  • Page 94: Upgrading The Print Server From Browser

    Upgrading Print Server Upgrading Browser Ensure mps17.bin is located in your current working directory. Enter the IP address of the print server as the URL. Click Misc, and then choose Upgrade From Browser, it then as shown in the following picture. Click Browser and select the firmware file.

  • Page 95: Troubleshooting

    9. Troubleshooting General Troubleshooting Overview The most common problems, which cause the print server to perform improperly, are covered in this chapter. If a problem still exists after reading this chapter, please contact your dealer for technical support. LED Light Indicators The print server is equipped with five LED lights to assist in diagnosing problems that are the result of the network and/or the print server hardware itself.

  • Page 96: Cable Related Problems

    Troubleshooting Status (Orange) When the print server unit is powered on, the Status LED will flash five times as part of the unit’s Power On Self Test (POST). This indicates that the print server hardware is properly configured. This LED, however, may flicker whenever the data are being transmitted and printed.

  • Page 97: Power Related Problems

    Troubleshooting Power Related Problems The print server requires an external AC power adapter in order for it to function. If you have a power problem, check to see whether the power cord or its connectors are damaged. More importantly, check to see that the AC power adapter included with the print server matches the AC voltage in your country or area.

  • Page 98: Multi-Segment Frame Type 802.2 Installation

    Troubleshooting procedures in order for your print server to function properly: Add the RIP for NWLink IPX/SPX compatible transport. See RIP for NWLink IPX/SPX compatible transport Installation Procedure later in this section. Add the frame type 802.2 for both Ethernet adapters. See Multi-Segment Frame Type 802.2 Installation later in this section.

  • Page 99: Moving The Print Server Toa New Segment

    Point to Settings, and select Control Panel. Double-click the Network icon. Select Protocols. Select the NWLink IPX/SPX Compatible Transport. Select Properties. Select your (first) network interface card and select Manual Frame Type Detection. Click Add. In the Frame Type field, select Ethernet 802.2. 10.
  • Page 100 Troubleshooting Print Server Reconfiguration Procedure on Windows 95/98/Me Click Start on the bottom left hand corner of the screen. Select Settings and select Printers. Select your printer connected to the print server, and right-click the printer icon. Select Properties. Click Details tab. Click Port Settings as shown in the picture below.

  • Page 101: Print Server Reconfiguration Procedure On Windows Nt

    Print Server Reconfiguration Procedure on Windows NT Click Start on the bottom left hand corner of the screen. Select Settings and select Printers. Select your printer connected to the print server, and right-click the printer icon. Select Properties. Click Ports tab. Click Configure Port.
  • Page 102 Troubleshooting use your print server. However, this situation is like moving the print server to a new segment. Please refer to the “Moving the print server to a new segment” section for more detailed reconfiguration instructions. 9 - 8...

  • Page 103: Novell Netware Troubleshooting

    Troubleshooting Novell NetWare Troubleshooting Many printing problems can be traced back to incorrect or incomplete print server installations. It is always wise to check the installation configurations first. In some cases, if necessary, delete the print server, print queue(s) or other setting(s). Next recreate the necessary parameters or reconfigure the print server by running the PSAdmin.
  • Page 104 Troubleshooting If this is the case, please ensure the Node ID field in the corresponding entry of the print server's IP address in NT's ARP cache table is correct by typing the following command at NT's DOS prompt. "arp -a" If the Node ID shown on the screen doesn't match the print server's Node ID, please follow the instructions below to reset the entry.
  • Page 105 (This troubleshooting guide will also apply to a multiple-segmented network while installing the print server) For example, assuming the print server is on Segment A, NT server is on Segment B, and there is a gateway computer between Segment A and Segment B. The network might be a complete TCP/IP network, or a hybrid of TCP/IP and IPX/SPX network.
  • Page 106 Troubleshooting For the purpose of explanation, we assume the NT server is on Segment A and its IP address is 192.72.214.66 (subnet mask: 255.255.255.224), the print server is going to be installed on Segment B, with IP address, for example, 192.72.214.100.

  • Page 107: Frequently Asked Questions

    7. Type, for example, "tftp 192.72.214.68 put config.txt" to save this new configuration back to print server. 8. Move the print server back to the Segment B. 9. Done! Frequently Asked Questions Question A Print jobs are sent to the print queue successfully, but fail to be sent to the printer.
  • Page 108 Troubleshooting Recheck the print server connection by running the PSAdmin. It should read “Connected.” Question B Print jobs start printing, but print very slowly or print unknown characters. Possible explanation and solution A printer driver is missing or is incompatible with that printer.
  • Page 109 Troubleshooting 2. Run the PSAdmin and upgrade the print server again. Question D The Status LED light keeps blinking after POST. Possible explanation and solution The last upgrade process was not completed. The print server must be upgraded again by using the PSAdmin. Please see Chapter 3 for details.
  • Page 110 Troubleshooting Question F The PSAdmin reports “Print server Already Exists”, “Printer Already Exists”, or “Print Queue Already Exists” after specifying the print server name, or the print queue name in Auto Setup. Possible Explanation A same print server name or queue names exists in the specific NetWare file server as the one you specified in the Auto Setup dialogue box.

  • Page 111: Additional Installation Instructions

    Troubleshooting Additional Installation Instructions Panasonic KX-P6100/6300/6500 If you are using a Panasonic KX-P6100/6300/6500 laser printer with the print server through the Network Print Port under Windows 95/98, please redirect the printer named “Panasonic KX-P6100 PCL” or “Panasonic KX-P6300 PCL”, or “Panasonic KX-P6500 PCL” to the print server through the Network Print Port.

Table of Contents
