Cadet 10F2500 Owner's Manual page 4

STEP 2: Baseboard Wiring (continued)

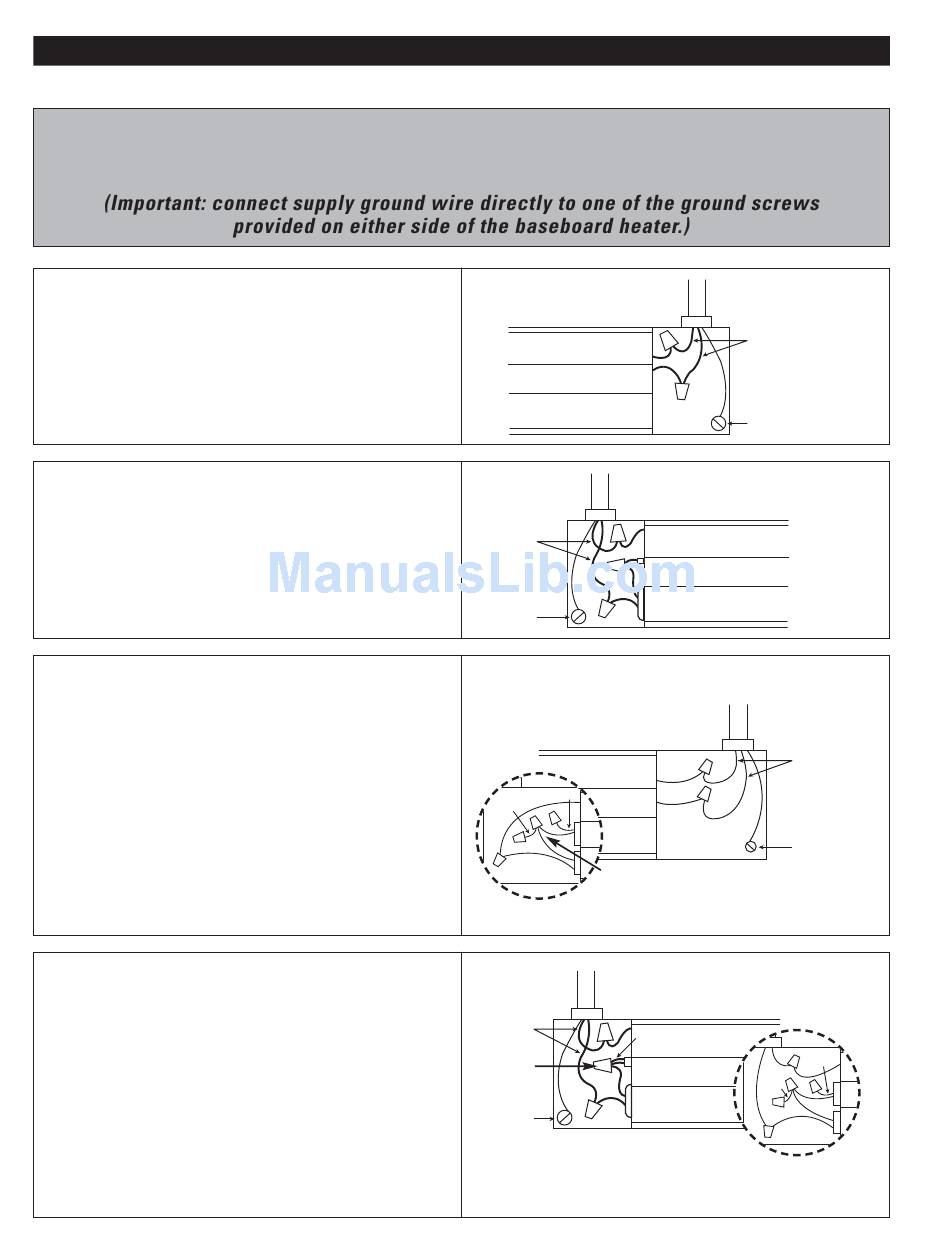

Refer to the wiring diagram below that corresponds to your heater application.
For single wattage baseboards, refer to "Standard Baseboards."
For multi-watt baseboards, refer to "Multi-Watt Baseboards."
STANDARD BASEBOARD WIRING ON RIGHT SIDE
120V OR 240V SUPPLY (See Figure 8)
1. Connect one supply wire to one heater wire.
2. Connect remaining supply wire to remaining heater wire.
3. Replace wiring compartment cover and secure with screw
previously removed.
4. Turn power back on at the electrical panel board.
STANDARD BASEBOARD WIRING ON LEFT SIDE
120V OR 240V SUPPLY (See Figure 9)
1. Connect one supply wire to one heater wire.
2. Connect remaining supply wire to remaining heater wire.
3. Replace wiring compartment cover and secure with screw
previously removed.
4. Turn power back on at the electrical panel board.
MULTI-WATT BASEBOARDS: WIRING ON RIGHT SIDE
MODEL 8F2025 (See Figure 10)
1. Connect one supply wire to one heater wire.
2. Connect remaining supply wire to remaining heater wire.
3. Replace wiring compartment cover and secure with screw
previously removed.
4. Selecting desired wattage
a. For 2500 watt applications: No action is required.
Heater is factory set for 2500 watts.
b. For 2000 watt applications: Remove left wiring compartment
cover. Cut red wire and cap both loose ends with
approved wire connectors, or wrap both loose ends
with electrical tape. Replace wiring compartment cover
and secure with screw previously removed.
5. Turn power back on at the electrical panel board.
MULTI-WATT BASEBOARDS: WIRING ON LEFT SIDE
MODEL 8F2025 (See Figure 11)
1. Disconnect splice/wire connector without the red wire.
2. Connect one supply wire to the upper black wire.
3. Connect the other supply wire to the lower black wire.
4. Selecting desired wattage:
a. For 2500 watt applications: No action is required. Heater is
factory set for 2500 watts.
b. For 2000 watt applications: Cut red wire and cap both loose
ends with an approved wire connector, or wrap loose ends
with electrical tape.
5. Replace wiring compartment cover and secure with screw
previously removed.
6. Turn power back on at the electrical panel board.
4
Installation Instructions
Supply Wires
Side ʻAʼ Shown
Ground
Red
Wire
2000 Watt Configuration
Left Side of Baseboard Shown
Supply Wires
DO NOT
DISCONNECT
Side ʻAʼ Shown
Ground
To Supply
Baseboard Heater
To Supply
Baseboard Heater
To Supply
Baseboard Heater
Red Wire
DO NOT DISCONNECT
To Supply
Baseboard Heater
Red Wire
Model 8F2025 -
Factory set for
2500 watts
Figure 8
Right Side
Wiring Shown
Supply Wires
Side ʻBʼ Shown
Ground
Figure 9
Left Side
Wiring Shown
Figure 10
Right Side
Wiring Shown
Supply Wires
Side ʻBʼ Shown
Ground
Figure 11
Left Side
Wiring Shown
Red
Wire
Red
Wire
2000 Watt Configuration
Left Side of Baseboard Shown
