On-Screen EQ Controls
You can adjust the built-in 4-band EQ using dedicated on-screen
buttons for band in/out and bell/shelf toggling. When the Channel
Control section is in EQ mode, the on-screen EQ controls for the
currently selected channels have a green background.
The software screen also provides the EQ Graph display to adjust
frequency and gain simultaneously.
In/Out
Q/Bandwidth
Bell/Shelf
Q
Q
Q/Bandwidth
Bell/Shelf
Presets

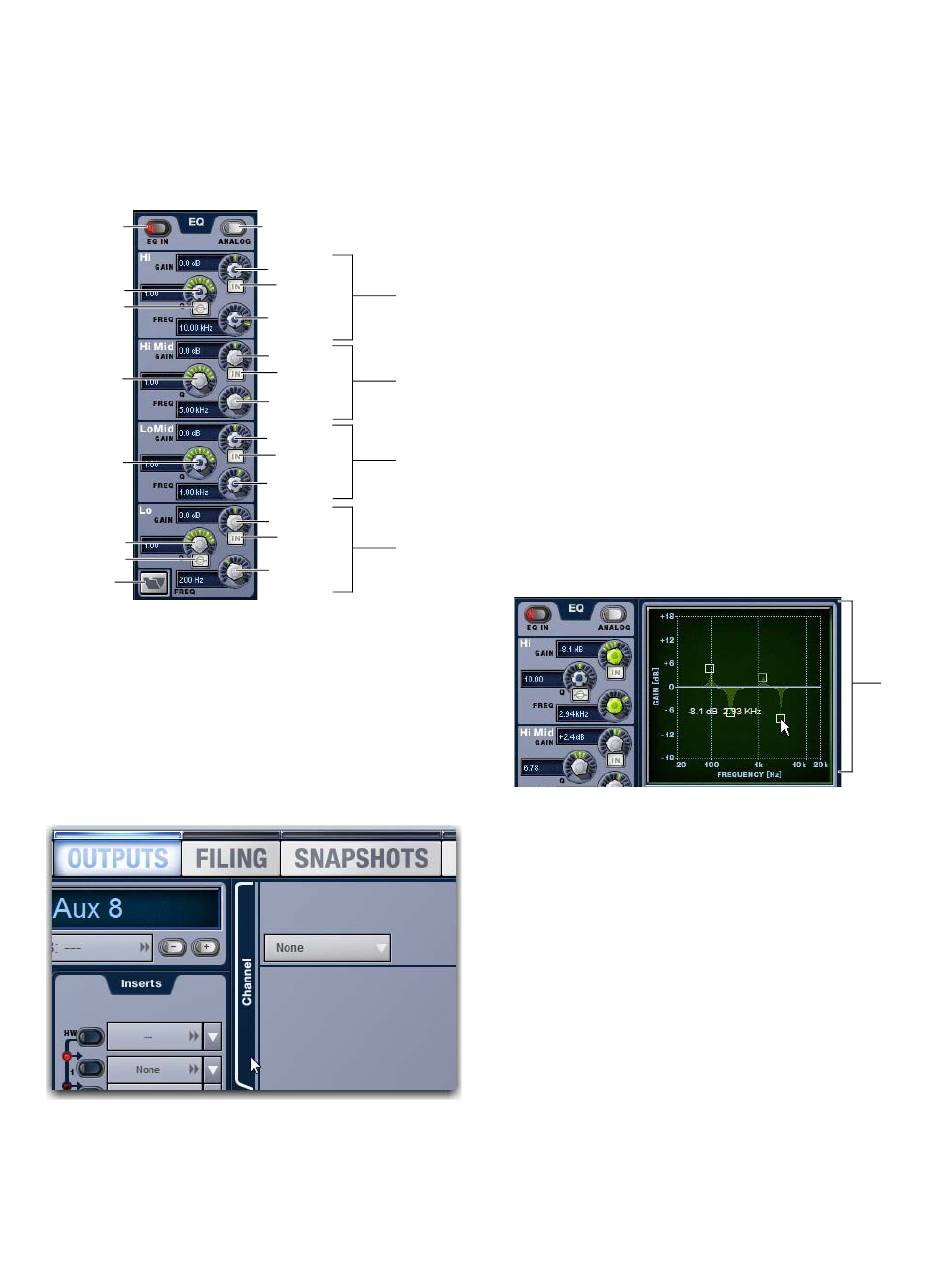

EQ controls in the software screen (digital EQ mode shown)
To adjust 4-band EQ parameters on-screen:
1
Do one of the following depending on the type of channel you
want to adjust:
• Select an input channel.
– or –
• Select an output channel or Matrix mixer, then if necessary
click the Channel tab on the Outputs page.
Clicking the Channel tab on the Outputs page
Click the EQ In switch to put the EQ in circuit.
2
Digital/Analog
Gain
Band in/out
Hi
Frequency
Gain
Band in/out
Hi Mid
Frequency
Gain
Band in/out
Lo Mid
Frequency
Gain
Band in/out
Lo
Frequency
3
Adjust the on-screen controls by doing one of the following:
• Turn an on-screen knob ( Gain, Q/Bandwidth , or Fre-
quency ) for each frequency band.
• Click to toggle any on-screen EQ switch (EQ in/out, band
in/out, or bell/shelf).
• Click a displayed value and type a new value.
• Drag up or down in a value display to increase or decrease
the value.
To reset an on-screen EQ parameter to its default value, do one of
the following:
• Alt-click the control, or hold the Default (Alt) switch and
click the control).
• Right-click the control and choose Reset .
To reset the entire EQ section (all bands) on a channel, do one of
the following:
• Right-click anywhere in the EQ section on-screen (but not
directly on an encoder or button) and choose Reset EQ
Section.
• Hold Default and click the on-screen EQ In button.
Using the EQ Graph Display
The on-screen EQ graph lets you use the mouse to adjust fre-
quency and gain for any available EQ band.
Dragging handles in the EQ graph display
To adjust EQ on-screen using the Graph display:
1
Select a channel on-screen.
Click the EQ In switch to put the EQ in circuit.
2
3 Drag the handles in the on-screen EQ graph display for each
EQ band (Lo, Lo-Mid, Hi-Mid, or Hi), as follows:
• Drag a handle right or left to increase or decrease frequency.
• Drag a handle up or down to increase or decrease gain.
EQ
graph
