Models
UH15B-060K
UH15B-095K
UH15B-120K
UH15B-150K
UH15B-175K
UH15B-205K
UH15B-235K
C.S.A. Certified
For Natural Gas Or Propane
UH15B-K

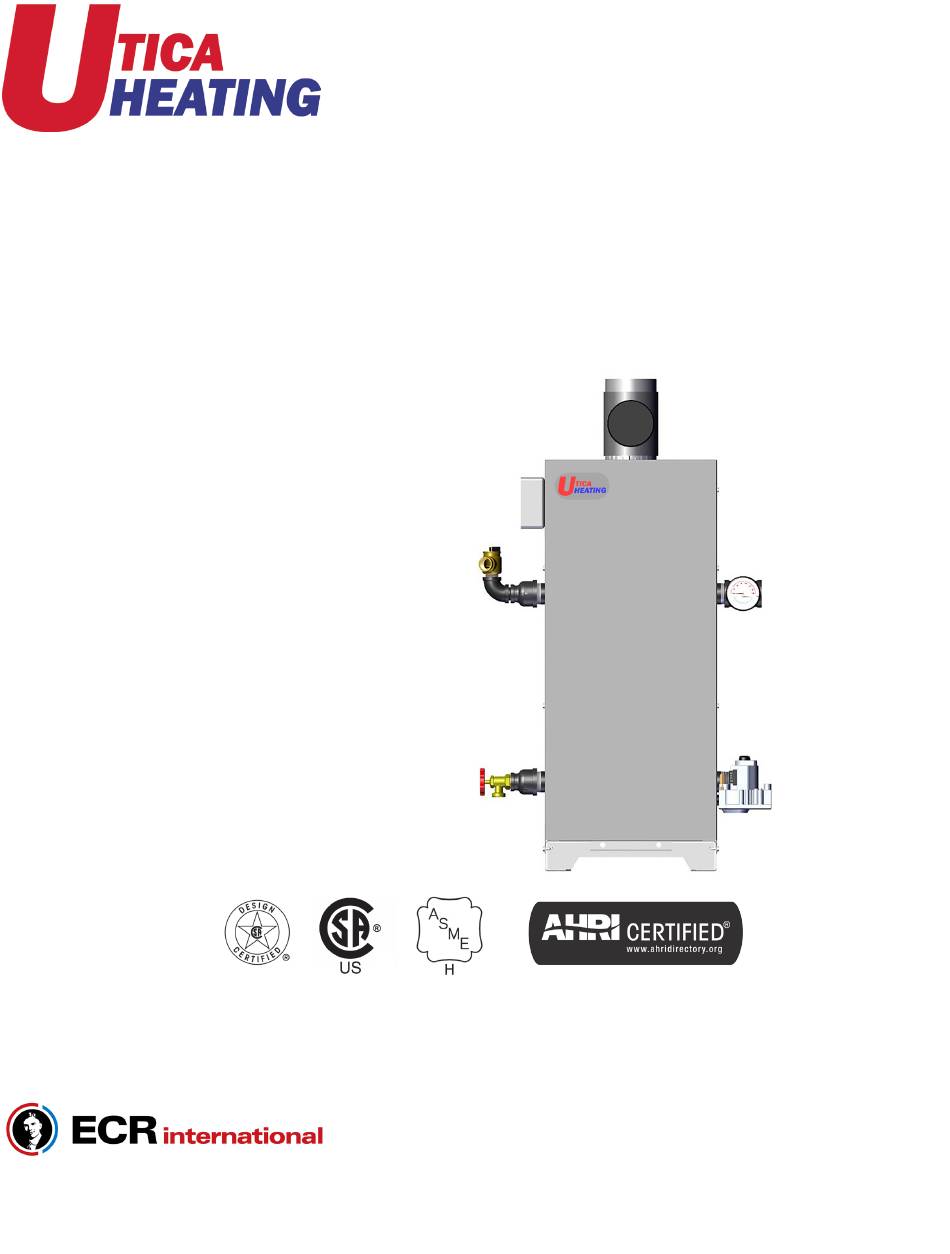

Cast Iron Gas Fired Boilers
For Forced Hot Water
With Hydrolevel 3200+ Control
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
T
ested For 50 psi
ASME
Working Pressure
Manufactured by:
ECR International Inc.
2201 Dwyer Avenue, Utica, NY 13501
Tel. 800 253 7900
www.ecrinternational.com
PN 240012809 REV. C [11/15/2020]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ECR Utica Heating UH15B-K
Summary of Contents for ECR Utica Heating UH15B-K
- Page 1 UH15B-120K UH15B-150K UH15B-175K UH15B-205K UH15B-235K C.S.A. Certified ested For 50 psi For Natural Gas Or Propane ASME Working Pressure Manufactured by: ECR International Inc. 2201 Dwyer Avenue, Utica, NY 13501 Tel. 800 253 7900 www.ecrinternational.com PN 240012809 REV. C [11/15/2020]...
- Page 2 VERIFY CONTENTS RECEIVED VERIFY CONTENTS RECEIVED Fully Assembled Boiler Vent Damper Draft Hood Pump (Optional) *Black Iron Fittings *Drain Valve *ASME Safety Relief Valve *Tridicator (see parts list for sizes and use) Includes Essential Documents and Warranty 11x17 Wire Diagrams Document Package *Circulator Harness *Junction Box...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 1 - Physical Data ........................4 2 - Safety Symbols And Warnings ....................5 3 - Locating The Boiler ......................7 3.1 Installation Requirements ....................7 3.2 Minimum Clearances To Combustible Construction ..............7 3.3 Recommended Clearances For Service ................. -
Page 4: Physical Data
1 - PHYSICAL DATA 1 - PHYSICAL DATA Model UH15B-060K UH15B-095K UH15B-120K UH15B-150K UH15B-175K UH15B-205K UH15B-235K # Sections 13-³/8" 13-³/8" 16-1/4" 19" 21-7/8" 27-¹/2" 27-¹/2" A Width (Jacket) 340 mm 340 mm 411 mm 483 mm 555 mm 700 mm 700 mm 22"... -
Page 5: Safety Symbols And Warnings
2 - SAFETY SYMBOLS AND WARNINGS FOR YOUR SAFETY READ BEFORE OPERATING 2.1. Safety Information DANGER Boiler installation shall be completed by qualified agency. WARNING Fire, explosion, asphyxiation and electrical shock hazard. Improper installation could result in death or serious injury. Read this manual and understand all requirements before beginning installation. - Page 6 2 - SAFETY SYMBOLS AND WARNINGS WARNING WARNING Combustion chamber insulation in this product Fire, Explosion, Asphyxiation, Electrical shock contains ceramic fiber material. Ceramic fibers hazard! Flooding will result in damages such as can be converted to cristobalite in very high electrical problems, corrosion, inoperative parts, temperature applications.
-
Page 7: Locating The Boiler
3 - LOCATING THE BOILER 3.2 Minimum Clearances to Combustible WARNING Construction Fire hazard! Do not install boiler on carpeting. Minimum clearances to combustible construction are: Failure to follow these instructions could result in death or serious injury. 10 inches (254 mm) Front Alcove* CAUTION... -
Page 8: Boiler Location Considerations
3 - LOCATING THE BOILER 3.3 Boiler Location Considerations • System piping exposed to freezing conditions: Use • Ambient room temperature always above 32°F (0°C) to inhibited propylene glycol solutions certified by fluid prevent the potential of freezing. manufacturer for use with closed water heating system. Do not use automotive or ethylene glycol. -
Page 9: Connecting Supply & Return Piping
4 - CONNECTING SUPPLY & RETURN PIPING 4.1 Connection Locations 4.2 Safety Relief Valve Installation See Figure 4-1 • Boiler has one supply and one return tapping on each side (4 total). Boiler supplied with dust caps only. Discharge line shall be installed to relief valve outlet Remove all four (4) caps and plumb before filling boiler connection to avoid burns, scalding, or water damage due with water. -
Page 10: Flush And Rinse System
4 - CONNECTING SUPPLY & RETURN PIPING 4.4 Water Treatment WARNING Manufacturer recommends a water analysis be done on • Poison hazard. Ethylene glycol is toxic. Do not water used to fill the system. Treatment may be required use ethylene glycol. based on the analysis results. -
Page 11: Supply And Return Requirements
4 - CONNECTING SUPPLY & RETURN PIPING 4.5 Supply and Return Requirements Installation using circulators and zone valves are shown in Figures 4-2 through 4-7. For further piping Boiler used in connection with refrigeration system, information refer to AHRI Installation and Piping install so chilled medium is piped in parallel with boiler Guide. - Page 12 4 - CONNECTING SUPPLY & RETURN PIPING • Boiler installed above radiation level (or as required Do not expose boiler and piping to freezing by authority having jurisdiction). Integral low water Note temperatures. switch is provided in boiler. • Boiler used in connection with refrigeration system. 4.6 Special Conditions Install piping in parallel with boiler, with appropriate valves to prevent chilled medium from entering boiler.
- Page 13 4 - CONNECTING SUPPLY & RETURN PIPING PIPING LEGEND: BACK FLOW VALVE Figure 4-3 - Bypass Piping With Automatic Mixing Valve PURGE VALVE Back Flow Valve ASME RELIEF VALVE DRAIN VALVE PN 240012809, Rev. C [11/15/2020]...
- Page 14 4 - CONNECTING SUPPLY & RETURN PIPING PIPING LEGEND: BACK FLOW VALVE Figure 4-4 - Bypass Piping - Fixed Low Temp Only With Zone Valve ASME RELIEF VALVE Drain Valve Drain Valve Manually adjust until proper system temperature is reached. PN 240012809, Rev.
- Page 15 4 - CONNECTING SUPPLY AND RETURN PIPING PIPING LEGEND: BACK FLOW VALVE Figure 4-5 - Bypass Piping (4-Way Valve Option With Circulator On Supply side) Back Flow Valve ASME RELIEF VALVE Drain Valve PN 240012809, Rev. C [11/15/2020]...
- Page 16 4 - CONNECTING SUPPLY AND RETURN PIPING PIPING LEGEND: BACK FLOW VALVE Figure 4-6 - Single Zone System With DHW Priority Back Flow Valve ASME RELIEF VALVE Purge Drain Valve Valve PN 240012809, Rev. C [11/15/2020]...
- Page 17 4 - CONNECTING SUPPLY AND RETURN PIPING PIPING LEGEND: BACK FLOW VALVE Figure 4-7 - Multi Zone System With Zone Valves And DHW Priority (With Zone Valve) * Hot Water Supply Tempered Tank Sensor Optional Indirect DHW Tank T & P Relief Cold Valve to Water...
-
Page 18: Ventilation & Combustion Air
5 - VENTILATION & COMBUSTION AIR 5.1 Requirements B. Known Air Infiltration Rate. See Table 5-1 for space with boiler only. Use equation for multiple WARNING appliances. Do not use an air infiltration rate (ACH) Asphyxiation Hazard! Provide enough air openings greater than 0.60. -
Page 19: Vent System Modification
6 - VENT SYSTEM MODIFICATION 6.1 Removal Of Existing Boiler From Venting System Typical Masonry Chimney Requirements Figure 6-1 - When an existing boiler is removed from a common venting system, the system is likely too large for proper venting of appliances still connected to it. -
Page 20: Vent Installation
7 - VENT INSTALLATION Boiler series is classified as a Category I. Vent WARNING installation shall be in accordance with "Venting of Equipment," of the National Fuel Gas Code, ANSI Boiler and venting installations shall be performed Z223.1/NFPA 54, or "Venting Systems and Air Supply by a qualified expert and in accordance with the for Appliances,"... -
Page 21: Vent Damper Installation & Instructions
8 - VENT DAMPER INSTALLATION & INSTRUCTIONS 8.1 Vent Damper Fasten sections of vent pipe with sheet metal screws to make piping rigid. Support horizontal potions of vent Connecting The Vent Damper And Vent Connector system to prevent sagging. Use stovepipe wires every 5’ to Refer to page 4 for size and location of vent (flue opening). - Page 22 8 - VENT DAMPER INSTALLATION & INSTRUCTIONS Figure 8-2 - Vent Damper Placement Figure 8-3 - Vent Damper Position Indicator PN 240012809, Rev. C [11/15/2020]...
-
Page 23: Connecting Gas Service
9 - CONNECTING GAS SERVICE DANGER Table 9-1 Natural Gas Propane Min. Supply Pressure 5" w.c. 11" w.c. Fire Hazard. Do not use matches, candles, open flames, or other methods providing ignition source. Max. Supply Pressure 13.5" w.c. 13.5" w.c. Failure to comply will result in death or serious 10"... -
Page 24: Electrical
10 - ELECTRICAL WARNING Electrical shock hazard. Turn OFF electrical power supply at service panel before making electrical connections. Failure to do so could result in death or serious injury. 10.1 Electrical Wiring See wiring diagrams on the following pages for details. -
Page 25: Wiring Diagram
11 - WIRING DIAGRAM WARNING Modification, substitution or elimination of factory equipped, supplied or specified components may result in personal injury or loss of life. Figure 11-1 - Integrated High Limit & Electronic Ignition Control PN 240012809, Rev. C [11/15/2020]... - Page 26 11 - WIRING DIAGRAM Figure 11-2 - Integrated High Limit & Electronic Ignition Control PN 240012809, Rev. C [11/15/2020]...
-
Page 27: Lighting Instructions
12 - LIGHTING INSTRUCTIONS 12.2 Operating Instructions For Intermittent WARNING Pilot System If you do not follow these instructions STOP! Read the safety information to the left. exactly, a fire or explosion may result Set the thermostat to lowest setting. causing property damage, personal injury or loss of life. -
Page 28: Normal Sequence Of Operation
13 - NORMAL SEQUENCE OF OPERATION A. Power remains off until boiler water temperature WARNING drops below high limit setting. Burn Hazard. View port on burner door may be hot. B. Circulator continues to operate under this condition Wear personal protection when servicing this boiler. until thermostat is satisfied. -
Page 29: General Maintenance And Care Instructions
14 - GENERAL MAINTENANCE AND CARE INSTRUCTIONS 14.2 Clean Flue Gas Passageways WARNING Label all wires prior to disconnection when servicing Follow this procedure to clean flue gas passageways: controls. Wiring errors could cause improper and Remove burner tray from heat exchanger by dangerous operation. -
Page 30: General Maintenance
14 - GENERAL MAINTENANCE AND CARE INSTRUCTIONS 14.3 General Maintenance Figure 14-1 - Burner Tray BURNERS • Visually inspect main burner and pilot flames at start of heating season and again in mid-season. ◊ Main burner flame should have well defined inner blue mantel with lighter blue outer mantel. -
Page 31: Adjusting Gas Input
14 - GENERAL MAINTENANCE AND CARE INSTRUCTIONS 14.4 Adjusting Gas Input Adjust gas input to boiler by removing protective cap on pressure regulator and turning screw clockwise increase input and counterclockwise to decrease input. See Figure 12-1 page 27. Manifold pressures are taken at outlet side of gas valve. See page 23 for proper pressure recommendations. -
Page 32: Ratings & Data - Natural Gas & Propane Gas
15 - RATINGS & DATA - NATURAL GAS & PROPANE GAS 1 - RATINGS & DATA - NATURAL GAS & PROPANE GAS - Ratings and Capacities Table 1 Heating Flue Net AHRI High Number of Input Recommended Capacity BTU/ AFUE Diameter Rating Water Altitude Input... -
Page 33: Appendix A - Control Module
APPENDIX A - CONTROL MODULE A.3 Adjusting Settings WARNING To discourage unauthorized changing of settings, procedure If you do not follow these instructions to enter adjustment mode is required. exactly, a fire or explosion may result To enter adjustment mode, press UP, DOWN, and I buttons causing property damage, personal injury simultaneously for three seconds. -
Page 34: Operation
APPENDIX A - CONTROL MODULE A.5 Operation Control determines burner operation is required, module proceeds to start burner (see state codes list) Module continuously monitors boiler water temperature and and heats water in boiler until setpoint temperature is fires or shuts off burner based on this temperature data. achieved or thermostat is satisfied. - Page 35 APPENDIX A - CONTROL MODULE Table A1 conti. - Vent Damper Models Operation State Codes State Code Definition Explanation Order Number 2. Other possible state codes System is purging before ignition trial; includes Pilot Valve circuit diagnostics. On vent Pre-purge damper models, this is so quick it will typically be over before the display can flash this code, and therefore will rarely be visible.
-
Page 36: Boiler High Limit Temperature Controller
APPENDIX A - CONTROL MODULE A.7 Troubleshooting A.6 Boiler High Limit Temperature Controller • Following service procedures are provided as general • When water temperature reaches setpoint, controller guide. ends heating cycle. • On lockout and retry models, meter readings between •... - Page 37 APPENDIX A - CONTROL MODULE Table A7 - Troubleshooting Error Codes Error Display clearing ( once error condition has disappeared) Error Clears itself Up/down Cycle Code Definition Push when root key when Power Number Explanation Things to look for problem is status is solved displayed...
- Page 38 APPENDIX A - CONTROL MODULE Table A7 - Troubleshooting Error Codes - conti. Error Display clearing ( once error condition has disappeared) Error Clears itself Up/down Cycle Code Definition Push when root key when Power Number Explanation Things to look for problem is status is solved...
-
Page 39: Intermittent Pilot
APPENDIX A - CONTROL MODULE A.9 Intermittent Pilot Ignition System Checks STEP 1: Check ignition cable. • Verify ignition cable does not make contact with metal surfaces. • Verify only factory supplied Ignition cable (or approved replacement) is used. • Verify connections to ignition module and igniter or igniter-sensor are clean and tight. - Page 40 APPENDIX A - CONTROL MODULE STEP 3: Check spark ignition circuit. Recheck ignition sequence as follows. Disconnect ignition cable at SPARK terminal on module. — Adjust thermostat above room temperature. — Verify ignition sequence at burner. WARNING Electrical shock hazard. Ignition circuit generates over 10,000 volts.
-
Page 41: Appendix B - Vent Damper Installation
APPENDIX B - VENT DAMPER INSTALLATION WARNING Figure 1a - Horizontal Installations Flow Asphyxiation, burn hazard. Improper operation of vent damper may result in serious injury or death due to fire or to asphyxiation from poisonous gases Vent Damper To Boiler o Chimney such as carbon monoxide which is odorless and Install vent damper with actuator to sides of... -
Page 42: Vent Damper Harness - Molex Plugs
APPENDIX B - VENT DAMPER INSTALLATION B.3 Vent Damper Harness - Molex Plugs Figure 4 WARNING Follow all instructions regarding safety operational controls in this manual. Failure to follow these instructions could result in death or serious injury. When servicing controls, all wires must be Note labeled prior to disconnection. -
Page 43: Vent Damper Troubleshooting Guide
APPENDIX B - VENT DAMPER TROUBLESHOOTING B.4 Vent Damper Troubleshooting Guide Normal Sequence of Operation WARNING 24 VAC Power ON Damper Position Power Follow all instructions regarding safety operational 4 & 1 All times Open or Closed controls in this manual. Failure to follow these instructions could result in death or serious injury. - Page 44 • This boiler is part of a modular or multiple boiler system having a total input of 300,000 BTU/hr or greater. • This boiler is equipped with a tankless coil. 2201 Dwyer Avenue, Utica, NY 13501 All specifications subject to change without notice. Tel. 800 325-5479 ©2020 ECR International, Inc. www.ecrinternational.com BDR THERMEA GROUP...
