ECR 075 97gb Installation, Operation & Maintenance Manual

Condensing gas boiler
Hide thumbs Also See for 075 97gb:
Table of Contents

Advertisement

Quick Links

See also: Installation, Operation & Maintenance Manual

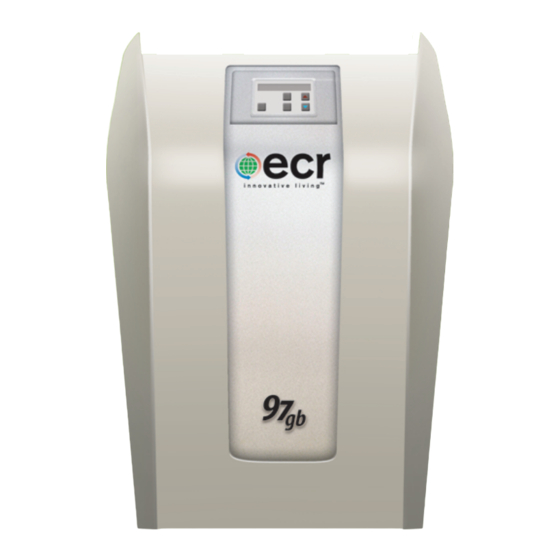

CONDENSING
GAS BOILER
Models 075 & 100
WALL MOUNTED
GAS BOILER
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
An ISO 9001-2008 Certified Company
ECR International, Inc.
2201 Dwyer Ave
Utica, NY 13501
P/N # 240008282, REV J [03/2014]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 075 97gb and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECR 075 97gb

Summary of Contents for ECR 075 97gb

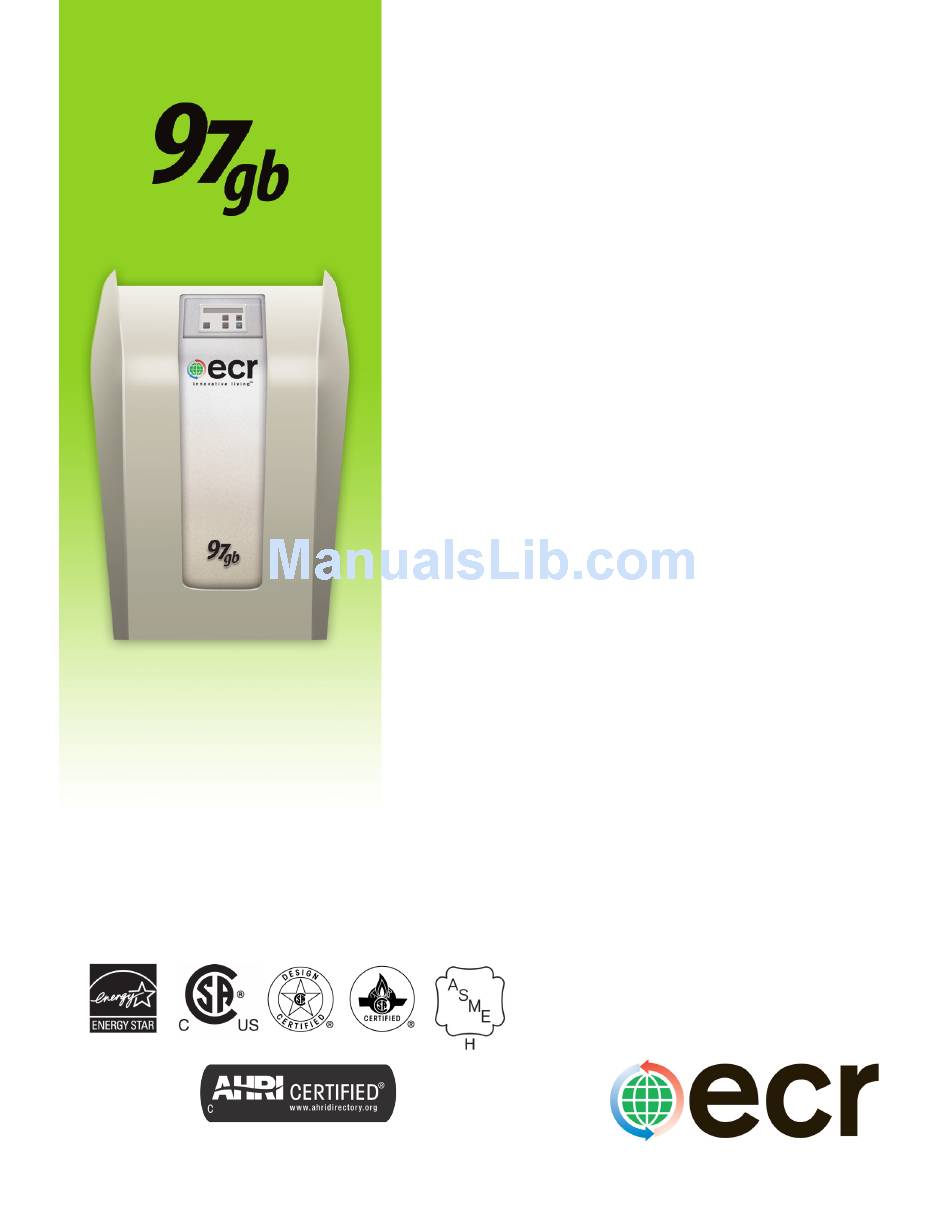

  • Page 1 CONDENSING GAS BOILER Models 075 & 100 WALL MOUNTED GAS BOILER INSTALLATION, OPERATION & MAINTENANCE MANUAL An ISO 9001-2008 Certified Company ECR International, Inc. 2201 Dwyer Ave Utica, NY 13501 P/N # 240008282, REV J [03/2014]...
