EnGenius ESR-9752 Quick Start Manual

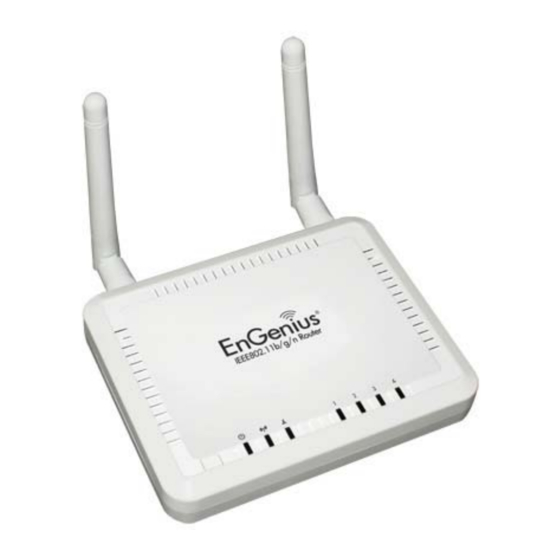

ESR-9752 Wireless Broadband Router

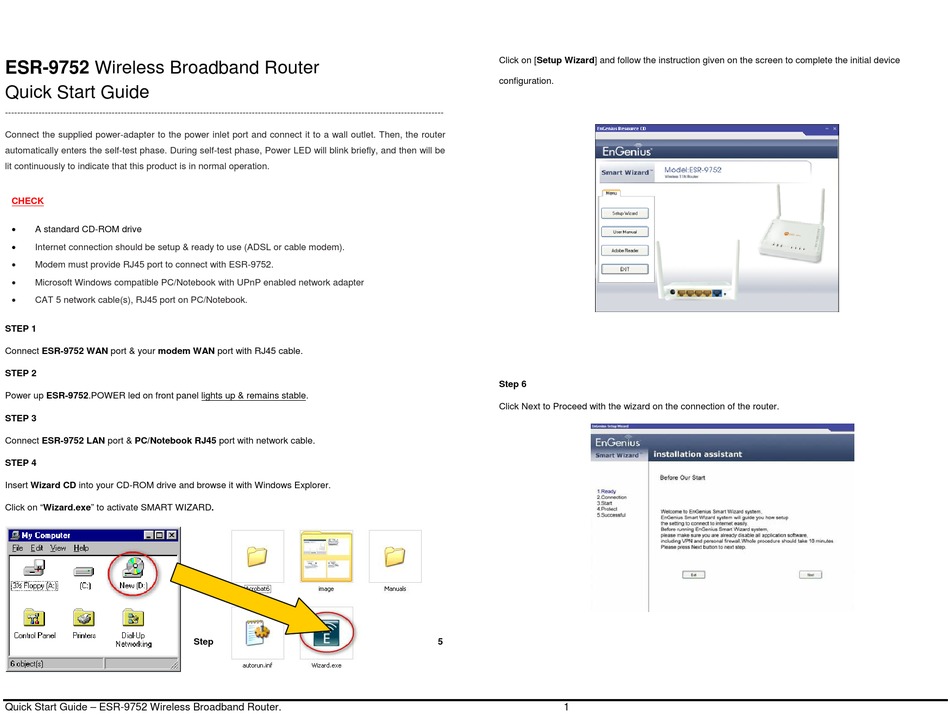

Quick Start Guide
------------------------------------------------------------------------------------------------------------------------------------------------
Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. Then, the router
automatically enters the self-test phase. During self-test phase, Power LED will blink briefly, and then will be
lit continuously to indicate that this product is in normal operation.

CHECK


A standard CD-ROM drive

Internet connection should be setup & ready to use (ADSL or cable modem).

Modem must provide RJ45 port to connect with ESR-9752.

Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter

CAT 5 network cable(s), RJ45 port on PC/Notebook.

STEP 1

Connect ESR-9752 WAN port & your modem WAN port with RJ45 cable.

STEP 2

Power up ESR-9752.POWER led on front panel lights up & remains stable.

STEP 3

Connect ESR-9752 LAN port & PC/Notebook RJ45 port with network cable.

STEP 4

Insert Wizard CD into your CD-ROM drive and browse it with Windows Explorer.
Click on "Wizard.exe" to activate SMART WIZARD.
Quick Start Guide – ESR-9752 Wireless Broadband Router.
Step
Click on [Setup Wizard] and follow the instruction given on the screen to complete the initial device
configuration.

Step 6

Click Next to Proceed with the wizard on the connection of the router.
5
1
