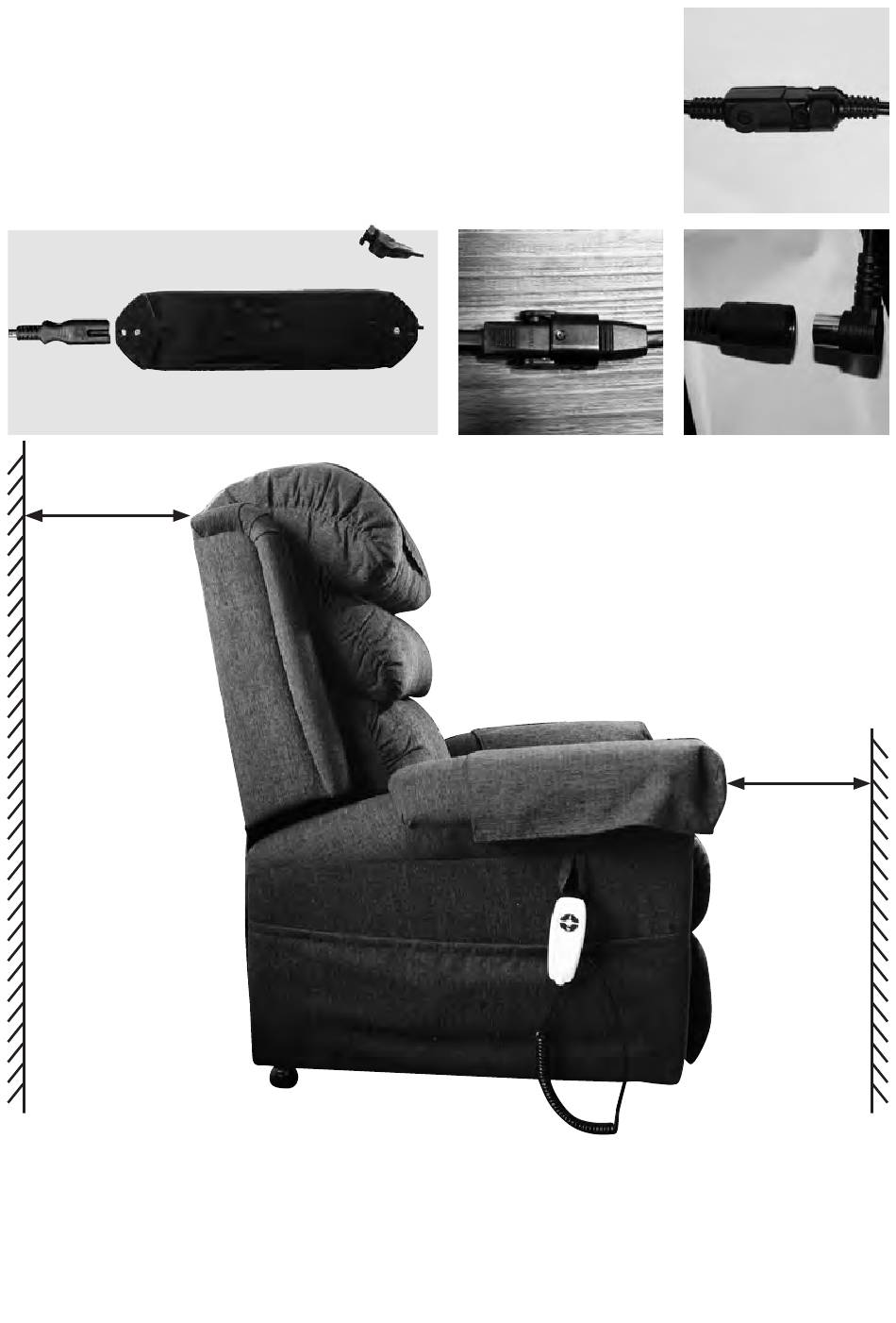

ELECTRICAL CONNECTIONS:

Note: Make sure all the wires are properly connected to
ensure proper function.
1. Connector for the motor and wiring (fig. 6)
2. Connector for wiring and adaptor (fig. 7)
3. Connector for adaptor wiring and plug wiring (fig. 8)
4. Hand control connection (fig. 9)
65CM
Fixing and Maintenance Instructions
Fig. 7 Fig. 8

CHAIR PLACEMENT:

• Allow sufficient space in front of and behind the
chair for reclining purpose.
• To allow for unimpeded reclining make sure there
is a minimum of 65 cm behind the chair.(Fig. 10)
• Ensure there is at least 40 cm in front of the chair.
(fig. 10)
• Place the chair on a flat surface/floor in a dry
room.
6
Fig. 6
Fig. 9
40CM
Fig. 10
