This range of chairs meets and passes the standard of BS8574:2013
This file is available to view and download as a PDF at
www.rehabandmobility.com.au. Sight impaired
customers can use a free PDF Reader (such as
and increase the text size for improved readability.
Fixing and Maintenance Instructions
This is not a medical device.

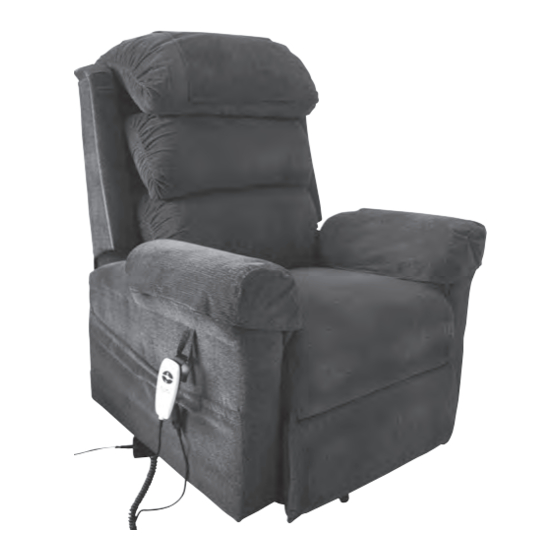

Rise and Recline Chair
Ecclesfield Range
adobe.com/reader) to zoom in
Ecclesfield
Rise and Recline
in Fabric
VG700MK ....................... Mink
Bariatric
VG700BMK ..................... Mink
Ecclesfield
Rise and Recline
in Leatherette
VG700LBR ............... Chestnut
Advertisement
Table of Contents
Related Manuals for aidapt Ecclesfield VG700MK
Summary of Contents for aidapt Ecclesfield VG700MK
- Page 1 Rise and Recline Chair Ecclesfield Range This range of chairs meets and passes the standard of BS8574:2013 Ecclesfield Rise and Recline in Fabric VG700MK ....... Mink Bariatric VG700BMK ..... Mink Ecclesfield Rise and Recline in Leatherette VG700LBR ....Chestnut This file is available to view and download as a PDF at www.rehabandmobility.com.au.
-
Page 2: Safety Information
INTRODUCTION This Rise and Recline chair is designed to assist people easily from the chair using electrically operated motors. Please read the instruction manual thoroughly for the correct usage of the chair, especially the safety information. Ensure you keep this manual readily available for future reference after you have read it through. SAFETY INFORMATION WARNING: chair... - Page 3 • Do not jump or play on the chair, as this is not a toy. • To prevent any unauthorised use, Aidapt Bathrooms Ltd recommends that the plug is removed from the socket when the product is not in use.
-
Page 4: Specifications
SPECIFICATIONS: WEIGHT - the weight of the chair is 60kgs (132lbs) - the maximum weight capacity of the standard chair is 160kgs (352lbs) - the maximum weight capacity of the bariatric chair is 220kgs (485lbs) Power Requirements – 100~240 V 50Hz Note motor operation: 2 minutes is available for continual use, allow 15 to 30 seconds between cycling the motor. - Page 5 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fixing and Maintenance Instructions...
-
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS: Note: Make sure all the wires are properly connected to ensure proper function. 1. Connector for the motor and wiring (fig. 6) 2. Connector for wiring and adaptor (fig. 7) 3. Connector for adaptor wiring and plug wiring (fig. 8) Fig. -
Page 7: Battery Back Up System
CHAIR PLACEMENT (CONTINUED): Caution: Make sure there is no obstruction behind or in front of the chair for a safe recline and lift during operation. The area between the seat and the footrest should be kept clear to avoid a pinching hazard while the chair is operating. -
Page 8: Adjusting The Chair
ADJUSTING THE CHAIR This chair has a range of electrically operated adjustments that can be applied using the remote control handset, specifically: Standard Sit Position Recline Position Seat Lift Position Fixing and Maintenance Instructions... - Page 9 ADJUSTING THE CHAIR (CONTINUED) WARNING: Please ensure you take care when adjusting chair positions to avoid trapping or pinching of body parts. Only the occupant or a reasonable person should operate the chair adjustments. Chair should be returned to the seated position when not in use. CAUTIONS: •...
- Page 10 RE-USE Please ensure if this chair is being re-used by another user other than the person originally using it, the new user must ensure the chair is suitable for his/her weight limit. WARNING: Please ensure the chair is fully cleaned and disinfected before re-use to prevent the risk of transmitting infections if being used in a healthcare setting.
-
Page 11: Limited Warranty Information
• Battery leakage or spillage damage • Upholstery damage, other than manufacturing defect. Aidapt Bathrooms Ltd, at its sole discretion, reserves the right to replace or repair any part that has become defective. The warranty does not exceed to consequential costs resulting from the fault or defect of the product: freight and travel costs, loss of earnings, or other expenses that one may incur.
