Fixing and Maintenance Instructions
This is not a medical device.
Advertisement
Table of Contents
Related Manuals for aidapt VG704B
Summary of Contents for aidapt VG704B
- Page 1 VG704BA....Yellow VG704BB .... Purple This file is available to view and download as a PDF at www.aidapt.co.uk. Sight impaired customers can use a free PDF Reader (such as adobe.com/reader) to zoom in and increase the text size for improved readability.
-
Page 2: Safety Information

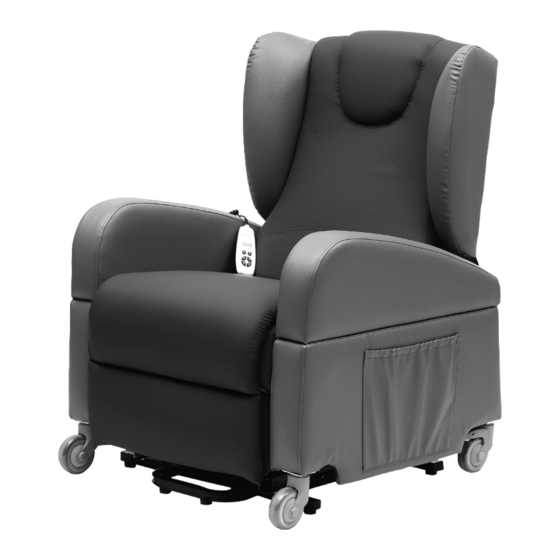

INTRODUCTION The Brookfield dual motor lift chair by Aidapt allows you to elevate your feet for total comfort and recline the back ensuring a relaxed comfortable position for the user. Aidapt’s dual motor range of lift chairs are engineered and designed to be the ultimate in lift chair performance, style and comfort. Powered by the world class OKIN 2 motor drive system for total reliability and efficiency. - Page 3 SAFETY INFORMATION (Continued) WARNING: Please lower the chair with caution as there is a risk of entrapment. Ensure there are no children or pets underneath the chair when lowering. Also carers should stand clear of the chair when lowering. WARNING: This chair is not suitable for use by children. Any children or animals within the vicinity must be supervised by an adult at all times and should never be allowed to play with the chair.
-
Page 4: Specifications
• Do not jump or play on the chair, as this is not a toy. • To prevent any unauthorised use, Aidapt Bathrooms Ltd recommends that the plug is removed from the socket when the product is not in use. - Page 5 CASTORS: The Brookfield range is fitted with 4 castors (2 braked and 2 unbraked) ASSEMBLY: Some models of chairs are packaged in two pieces consisting of the back and the base to make transport and delivery easier. Assemble the chair as per the assembly instructions below. DIRECTIONS: 1) Remove seat (fig.
-
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS: Note: Make sure all the wires are properly connected to ensure proper function. 1. Connector for the motor and wiring (fig. 6) 2. Connector for wiring and adaptor (fig. 7) 3. Connector for adaptor wiring and plug wiring (fig. 8) Fig. -
Page 7: Battery Back Up System
CHAIR PLACEMENT (CONTINUED): Caution: Make sure there is no obstruction behind or in front of the chair for a safe recline and lift during operation. The area between the seat and the footrest should be kept clear to avoid a pinching hazard while the chair is operating. - Page 8 STANDARD POSITION ADJUSTING THE CHAIR This chair has a range of electrically operated adjustments that can be applied using the remote control handset, specifically: FOOTREST RECLINE RAISED POSITION SLEEPING/ SEAT LIFT RELAX POSITION POSITION Fixing and Maintenance Instructions...
- Page 9 ADJUSTING THE CHAIR (CONTINUED) WARNING: Please ensure you take care when adjusting chair positions to avoid trapping or pinching of body parts. Only the occupant or a reasonable person should operate the chair adjustments. Chair should be returned to the seated position when not in use. CAUTIONS: •...
- Page 10 REMOVING THE SIDES FOR SIDE TRANSFER The Brookfield chair sides can be removed to aid with side transfer. To remove the sides the chair must be first put into a recline position (see fig. 11). When in an upright seated position the back of the chair will lock the sides into place. Do not attempt to remove the sides before the chair has been put into the recline position (see fig.
- Page 11 RE-USE Please ensure if this chair is being re-used by another user other than the person originally using it, the new user must ensure the chair is suitable for his/her weight limit. WARNING: Please ensure the chair is fully cleaned and disinfected before re-use to prevent the risk of transmitting infections if being used in a healthcare setting.
-
Page 12: Limited Warranty Information
• Battery leakage or spillage damage • Upholstery damage, other than manufacturing defect. Aidapt Bathrooms Ltd, at its sole discretion, reserves the right to replace or repair any part that has become defective. The warranty does not exceed to consequential costs resulting from the fault or defect of the product: freight and travel costs, loss of earnings, or other expenses that one may incur.
