Washing Machine
User Manual
WTE7636X0
Document Number :
2820527393_EN/ 09-10-20.(9:03)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTE7636X0 and is the answer not in the manual?

Questions and answers

Related Manuals for Beko WTE7636X0

Summary of Contents for Beko WTE7636X0

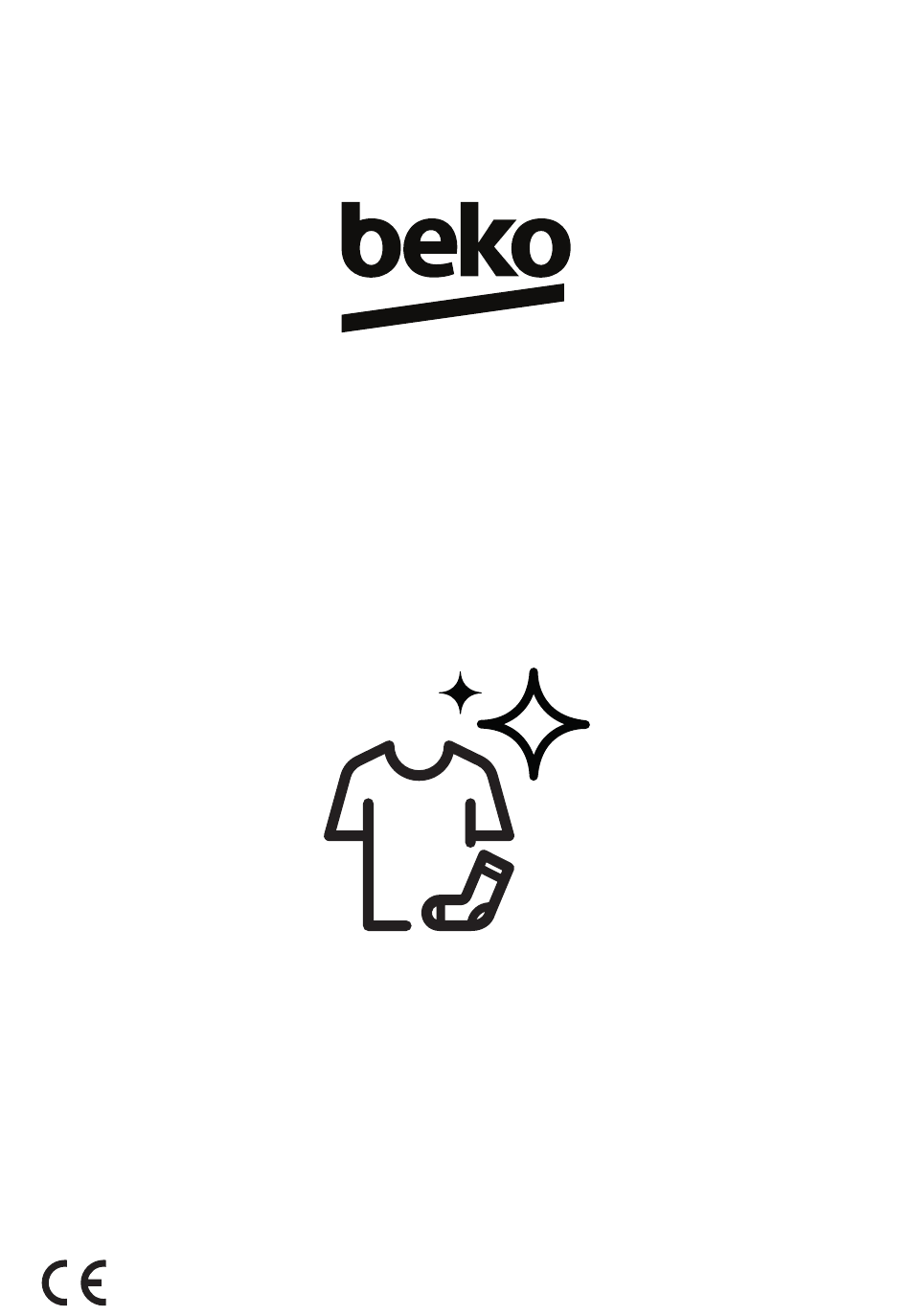

  • Page 1 Washing Machine User Manual WTE7636X0 Document Number : 2820527393_EN/ 09-10-20.(9:03)

  • Page 2: General Safety Instructions

    General safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 Life and property safety Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat.

  • Page 3: Electrical Safety

    should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children under the age of 3 should be kept away unless continuously supervised. Packaging materials are dangerous for the children. Keep packaging materials in a safe place away from reach of the children.

  • Page 4: Important Instructions For Environment

    Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

  • Page 5: Technical Specifications

    Technical specifications Supplier name or trademark Beko Model name WTE7636X0 Rated capacity (kg) Maximum spin speed (rpm) 1200 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz)

  • Page 6: Appropriate Installation Location

    4.1 Installation • Apply to the nearest authorised service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

  • Page 7: Connecting Water Supply

    4.1.4 Connecting water supply It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher. CAUTION: Models with a single water inlet should not be connected to the hot water tap.

  • Page 8: Adjusting The Feet

    4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.

  • Page 9: Preparing Laundry For Washing

    4.2 Preparation 4.2.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always observe the instructions given on the garment care labels. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the machine.

  • Page 10: Using Detergent And Softener

    4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleach and descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –...
  • Page 11 If the product is equipped with a liquid detergent part: • When you want to use liquid detergent, pull the apparatus towards yourself. The part that falls down will serve as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place or by removing it.

  • Page 12: Tips For Efficient Washing

    4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woollens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling level: based on soiling level: 40-90°C) cold -40°C) cold -40°C)

  • Page 13: Operating The Product

    4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection knob 7 - End Time Setting button 2 - Temperature level lights 8 - Auxiliary Function button 3 3 - Spin level indicator lights 9 - Auxiliary Function button 2 4 - Display 10 - Auxiliary Function button 1 5 - Start / Pause button...

  • Page 14: Programme And Consumption Table

    4.3.3 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Cold - 90 2,30 1200 • • • • • Cottons Cold - 90 1,70 1200 • • • • • Cold - 90 0,95 1200 • • •...

  • Page 15: Programme Selection

    The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. You can see the washing duration on the display of your machine while selecting a programme.
  • Page 16 Allergy UK is the brand of the British Allergy Association. Seal of Approval is created to guide people that require recommendation about a product that the related product restricts / reduces / eliminates the allergens or reduces the allergen content significantly in the ambient where allergy patients exist.
  • Page 17 • GentleCare You can wash your delicate clothes such as cotton/synthetic blended knitwear or hosiery in this programme. It washes with more delicate washing action. Wash your clothes whose colour you want to preserve either at 20 degrees or by selecting the cold wash option. •...

  • Page 18: Temperature Selection

    • Soft Toys Soft toys must be washed in a delicate programme due to their delicate fabrics, and the fibre and accessories they contain. Thanks to its delicate washing movements and spinning profile, the soft toys programme protects the toys during washing. It is recommended to use liquid detergent. Fragile toys with hard surfaces must not be washed under any circumstances.

  • Page 19: Rinse Hold

    You can change the spin speed after the washing starts if the washing steps allow it. Changes cannot be made if the steps do not allow it. Rinse hold If you are not going to unload your clothes immediately after the programme completes, you can use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine.

  • Page 20: Functions/Programmes Selected By Pressing The Function Keys For 3 Seconds

    • Remote Control You can use this auxiliary function key to connect your product to smart devices. For detailed information, see 4.3.15 HomeWhiz Feature and Remote Control Function. • Customized Programme This auxiliary function can only be used for Cotton and Synthetics programmes together with the HomeWhiz application.
  • Page 21 To activate the Child Lock: Press and hold Auxiliary Function button 3 for 3 seconds. After the countdown as “3-2-1" on the display is over, child lock symbol appears on the display. When this warning is displayed, you can release the Auxiliary Function button 3.

  • Page 22: Starting The Programme

    Additional laundry can be added into the machine during the End Time countdown. At the end of the countdown, End Time indicator turns off, washing cycle starts and the time of the selected programme appears on the display. When the End Time selection is completed, the time appears on the screen consists of end time plus the duration of the selected programme.

  • Page 23: Switching The Machine To Pause Mode

    • Remove the loading door emergency handle behind the filter cover with a tool. • Open the loading door by pulling the loading door emergency handle downwards. • Try to pull the handle downwards again if the loading door is not opened. •...

  • Page 24: Cancelling The Programme

    The loading door will not open if the water temperature in the machine is high or the water level is above the loading door baseline. 4.3.13 Cancelling the programme The programme is cancelled when program selection knob is turned to a different programme or machine is turned off and on again using the program selection knob.
  • Page 25 in this mode. Other buttons will be inactive. • On the screen you see on the app, select the washing machine and press next. • Proceed reading the on-screen instructions until HomeWhiz asks you about the product you wish to connect to your smart device.
  • Page 26 When you want to control your washing machine remotely, you need to activate the Remote Control function by pressing the Remote Control button while the programme knob is in the Download Program/Remote Control position button on the control panel of your washing machine. When your product is accessed, you will see a screen similar to the below.

  • Page 27: Maintenance And Cleaning

    4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.

  • Page 28: Draining Remaining Water And Cleaning The Pump Filter

    4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.

  • Page 29: Troubleshooting

    Troubleshooting Problem Cause Solution Programs do not start after the Start / Pause / Cancel button is not pressed. • Press Start / Pause / Cancel button. loading door is closed. It may be difficult to close the loading door in case of •...
  • Page 30 Problem Cause Solution Washing takes longer than Water pressure is low. • Product waits until taking in adequate amount specified in the user manual.(*) of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
  • Page 31 Problem Cause Solution Washing performance is poor: Insufficient amount of detergent is used. • Use the recommended amount of detergent Stains persist or the laundry is not appropriate for water hardness and the laundry. whitened. (**) Excessive laundry is loaded in. •...
  • Page 32 Problem Cause Solution Detergent residue in the detergent Detergent was put in wet drawer. • Dry the detergent drawer before putting in drawer. (**) detergent. Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
