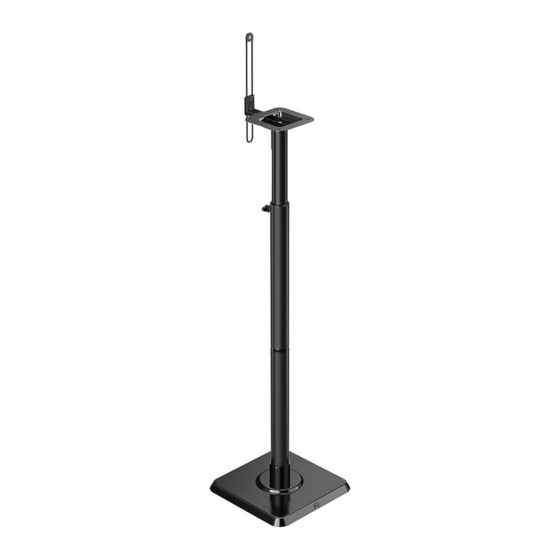

Mounting Dream MD5402 Installation Instruction

Speaker stand
Hide thumbs Also See for MD5402:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTION
MODEL ： MD5402
Please read this instruction carefully before installation .
Weight capacity: 5 kg (11 lbs) .
If you have any questions, please contact us via customerservice@mountingdream.com
or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
For more information,please visit our website:www.mountingdreamonline.com
(A0)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD5402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mounting Dream MD5402

Summary of Contents for Mounting Dream MD5402

  • Page 1 INSTALLATION INSTRUCTION MODEL ： MD5402 Please read this instruction carefully before installation . Weight capacity: 5 kg (11 lbs) . If you have any questions, please contact us via customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
  • Page 2 Seguridad Advertencia: ¡Gracias por elegir el montaje soporte sueño altavoz ti. Para la aplicación segura de modelo MD5402, y prevenir a sí mismo oa otros de peligro o pérdida de propiedad, por favor lea este manual antes de usar. Si no entiende estas instrucciones o si tiene alguna duda sobre la seguridad de la instalación, por favor póngase en contacto con el contratista calificado o montaje de servicio al cliente Sueño.

  • Page 3: Part List

    For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: 2M 2M Band tape Screwdriver 1/8" Electrodrill Part list ： A--Base B--Bottom tube C--Adjusting tube D--Speaker attachment 2 pcs 2 pcs...
  • Page 4 Step 1 If the base is not level, please adjust the adjusting foot to level the base. Insert bottom tube (B) into base (A) , then fasten bolt (J) by using Allen key (K) . Adjustable foot Step 2 Insert Adjusting tube (C) into bottom tube (B) and use Allen key (K) to fasten bolt (J).
  • Page 5 Step 3 Insert the Speaker attachment unit (D) into the Adjusting tube (C) and fasten it by bolt (H). Wire Step 4 Attach speaker to assembled stand Option 1: Speaker installation hole distance is below 166mm/6.5in from the bottom According to your speaker's installation hole, choose bolt M/N/O, spacer (S) and plastic washer (T) ( as Figure 1 and Figure 2 shows) to attach it .
  • Page 6 Option 2: Speaker with a key hole Attach key hole bolt (P) to the assembled iron wire with plastic washer (T) and nut (I3). Place speaker on stand with key hole bolt (P) inserted in the key hole, then tighten the nut (I3) and plug the wires.
  • Page 7 According to your speaker's installation holes, choose bolt M/N/O, plastic washer (T) ,washer Q/R and spacer (S) ( as shows in Figure 3, Figure 4, Figure 5, Figure 6 ) to attach it. Then plug the wires. Figure 5 Figure 3 For screw holes on flat For inset holes: Use panel: Use bolt M/N/O ,...

  • Page 8: Height Adjustment

    Step 5 Height Adjustment Tighten MAX: MIN: 1078mm 826mm Loosen Product dimensions: 60 ~ 120mm 41 ~ 203mm 41 ~ 183mm 120mm MAX:1078mm 250mm MIN:826mm 250mm If you have any questions about the installation,please feel free to contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com .
