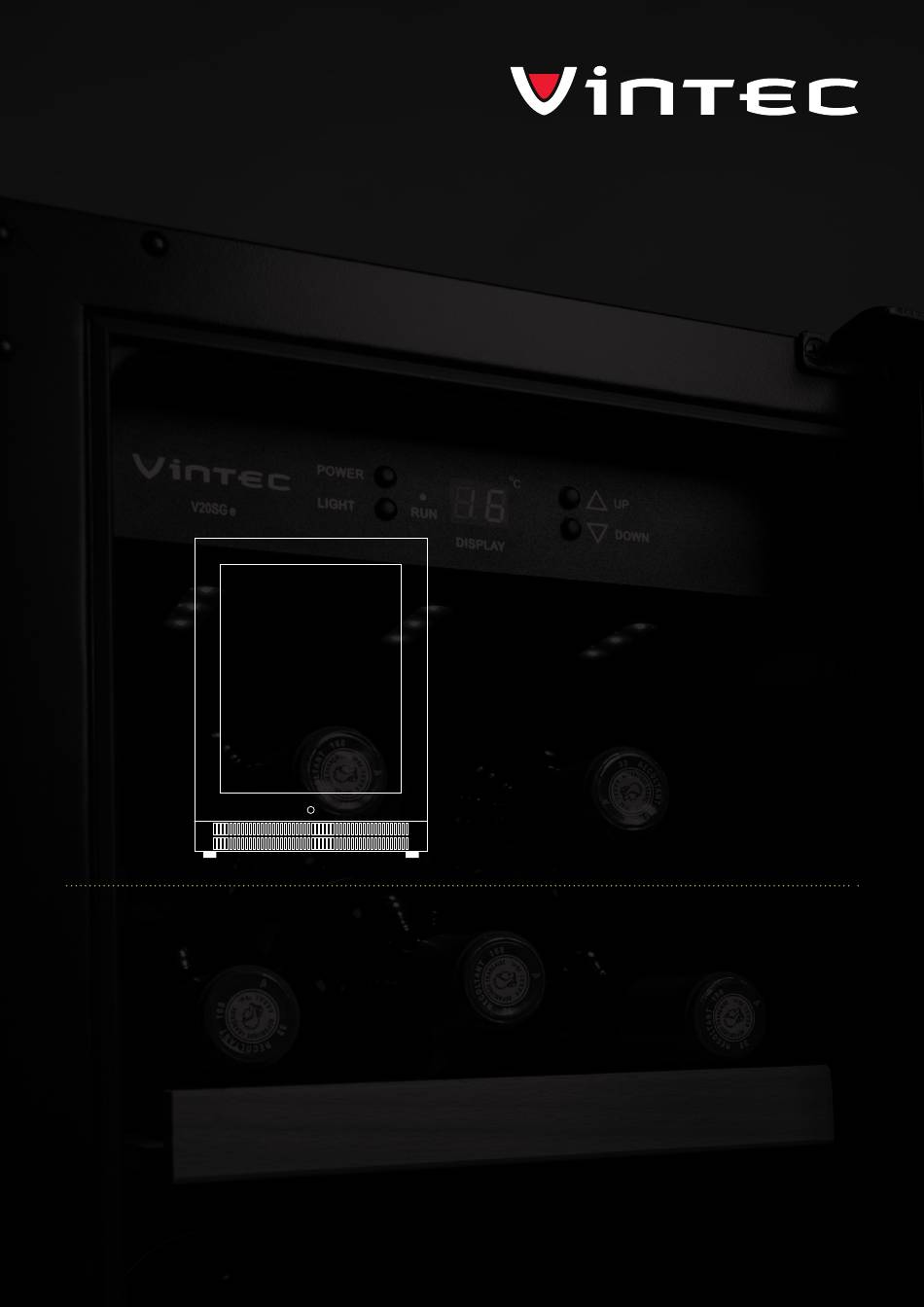

- Page 1 User Manual V40SG2EBK V40SG2ES3 vintec.com...
- Page 2 Some models are available in dedicated countries only. VINTEC offers no guarantee for our wine cellar if it is being used for any purpose other than that for which it was specifically designed. VINTEC cannot be held responsible for any error in this manual.
- Page 3 User Manual The location you have selected for your wine cellar should: - be unencumbered and well ventilated; V40SG2EBK V40SG2ES3 - be well away from any heat source and direct sunlight; - not be too damp (laundry, pantry, bathroom etc.);...
-
Page 4: Installing Your Wine Cellar
V40SG2EBK V40SG2ES3 Leveling your wine cellar: Wine cellar must be leveled BEFORE loading your wines. Your Vintec wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. - Page 5 Compressor run appliances require proper ventilation for proper and longer usage. Your Fixing the Back spacer: Vintec wine cellar is supplied with a back spacer. Affix the back spacer at the back of the Compressor run appliances require proper ventilation for proper and longer usage. Your cellar for air circulation and heat evacuation.
- Page 6 3. Vintec “Built in” wine cellars draw air from the rear and expels through the metal grid under the door at the front. If a kick board is to be placed in front of the wine cellar’s grid another one must be fitted into the kick board with a minimum air flow allowance of 150cm2.
- Page 7 INSTALLATION DRAWINGS FOR BUILT IN WINE CELLARS: User Manual V40SG2EBK V40SG2ES3...
-
Page 8: Dimensional Drawings
TOP VIEW access when installed flush-fit. For complete installation instructions, please refer to the user manual for this product. © 2018 Electrolux Home Products Pty Ltd ABN 51 004 762 341 VDIM_V40SG2EBK_DimSheet vintec.com.au 1800 771 776 User Manual V40SG2EBK V40SG2ES3... - Page 9 An individual’s perception of noise is directly linked to the environment in which the wine cellar is located, as well the specific type of models. VINTEC wine cellars are in line with international standards for such appliance. VINTEC will always do its utmost to satisfy its customers but will not retake possession of the goods due to complaints based on normal operating noise occurrences.
- Page 10 - Do not cover the wooden shelves with alloy foil or other materials, as it will obstruct air circulation. - Do not move your wine cellar while it is loaded with wines. This might distort the body of the wine cellar and cause back injury. User Manual V40SG2EBK V40SG2ES3...
-
Page 11: Types Of Regulation
The lower chamber accommodates 20, 30 or 34 bottles, depending on the models, mainly for red wines, which could be stored either at room temperature (18ºC-20ºC) for consumption or at 12ºC for a longer time of storage. User Manual V40SG2EBK V40SG2ES3... -
Page 12: Temperature Settings
The “UPPER CHAMBER LED” displays the upper chamber internal temperature The “LOWER CHAMBER LED” displays the lower chamber internal temperature To view the “set” temperature, press the corresponding button once, the “set” temperature will temporarily “flash” in the LED display for 5 seconds. User Manual V40SG2EBK V40SG2ES3... -
Page 13: Wine Serving Temperature Chart
White Vintage Chardonnay 14ºC Red Pinot Noir, 16ºC Red Grenache, Syrah 16ºC Red Vintage Pinot Noir 18ºC Cabernet & Merlot: French, Australian, New Zealand, 20ºC Chilean, Italian, Spanish, Californian, Argentinean… Vintage Bordeaux … Room temperature not exceeding 20ºC User Manual V40SG2EBK V40SG2ES3... -
Page 14: Defrosting/Condensation/ Hygrometry/ Ventilation
IMPORTANT INFORMATION ABOUT TEMPERATURE Your VINTEC wine cellar has been designed to guarantee optimum conditions for storing and/or serving your wines. Fine wines require long and gentle developments and need specific conditions in which to reach their full potential. All wines mature at the same temperature, which is a constant temperature set between 12ºC to 14ºC. -
Page 15: Reversibility Of The Door
- Depending on the type of handle your wine cabinet is equipped with, the door may not be reversible or may require that a left or right opening door be ordered to change the opening side. User Manual V40SG2EBK V40SG2ES3... - Page 16 (7) at left top of cabinet with 3 screws. (Fig. D) 5. Following the above procedure, install the spare lower hinge to the left (9). (Fig. E) 6. Install and aligned the door. 7. Insert the plastic caps to cover the holes(8). User Manual V40SG2EBK V40SG2ES3...
-
Page 17: Operation Anomalies
Similarly, any intervention on the electrical circuit should be performed by a qualified electrician. Notes : Any intervention performed by a non- authorized technician by Vintec will lead to the warranty being considered as null and void. POWER FAILURES In the event of a power interruption, all previous temperature settings are automatically erased and it will revert to a preset temperature setting. -
Page 18: Troubleshooting Guide
The door will not close properly. The Wine cellar is not level. The door was reversed and not properly installed. The gasket is faulty. ( magnet or rubber is spoiled) The shelves are out of position. User Manual V40SG2EBK V40SG2ES3... -
Page 19: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; (viii) insect or vermin infestation; (d) ‘Vintec/Transtherm’ is the brand controlled by Electrolux Home Products (ix) failure to comply with any additional instructions supplied with Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 the Appliance;... -
Page 20: Service And Support
Service and support In the rare event that your Vintec cabinet does not perform to your satisfaction, contact our dedicated support team: 1800 771 776 concierge@vintecclub.com Vintec. We are part of the Electrolux Family. To add a touch of professional inspiration to your home, visit electrolux.com.au...
