Summary of Contents for Mini Gadgets DIY720P

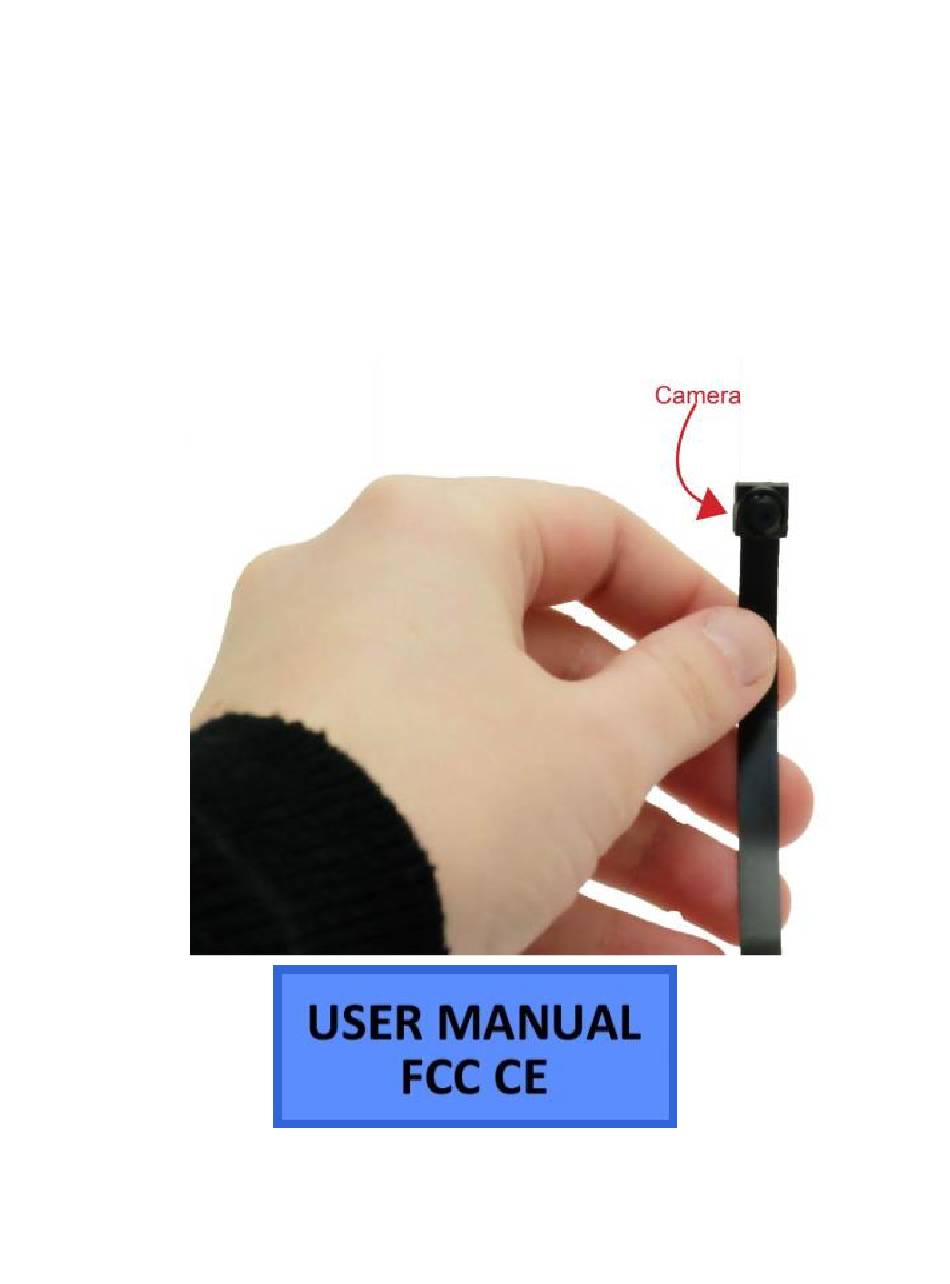

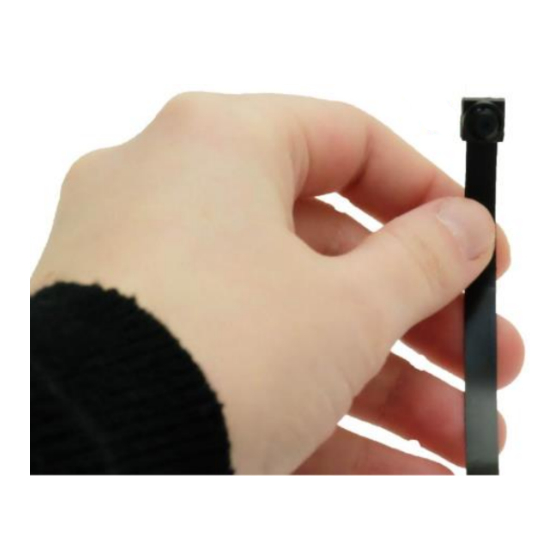

- Page 1 Do-It-Yourself 720P Camera Kit SKU: DIY720P Version 1.3...
- Page 2 Do-It-Yourself 720P THANK YOU FOR PURCHASING THE Camera Kit Please read this manual before operating the camera and keep it handy. Are you looking to build your own camera? This completed kit is what you need to get started. Simply choose the item or spot you want to place your camera, and within minutes, you can have this unit recording to its MicroSD card!
- Page 3 GET FAMILIAR WITH YOUR DIY720P Camera Kit: Version 1.3...
-
Page 4: Operating The Camera
OPERATING THE CAMERA HOW TO CHARGE THE BATTERY 1. Plug the Mini-USB cable into the charger port. 2. Connect the USB end of the Mini-USB cable to an AC Adapter. 3. Allow the device to charge at least 4 – 6 hours prior to use. -
Page 5: How To Take Pictures
HOW TO RECORD VIDEO 1. When the camera is in Standby Mode press the “C” button. The red light will flash twice and turn out. b. The device is now recording. HOW TO STOP RECORDING VIDEO 1. While the camera is recording video, press the “C”... -
Page 6: Changing Your Device Settings
HOW TO RECORD MOTION DETECTION 1. When the camera is in Standby Mode, press the “D” button on the remote. The red light will flash twice to indicate the unit is recording. HOW TO STOP RECORDING MOTION DETECTION 1. While the camera is recording in motion detection, press the “D”... - Page 7 5. Place the file onto your units MicroSD card in the root directory (outside the DCIM folder). 6. Turn your unit on with the MicroSD card inserted. 7. Take a test recording. 8. Verify that the time stamp updated. RETRIEVE THE FILES TO YOUR PC 1.
- Page 8 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. Version 1.3...
- Page 9 4. Open the [folder name] folder. 5. Double click the file you want to view. VLC Player is recommended for watching videos. Version 1.3...
-
Page 10: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the power cable is securely plugged into a functioning electrical outlet or the battery is charged. THE DEVICE HAS CRASHED Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ... - Page 11 SPECIFICATIONS Video Resolution 1280x720 Video Format .AVI Frames per Up to 30 fps Second Vision Angle 75° Battery Life 15 Hours Continuous Recording Motion Detection 8 meters for straight-line distance Photo Resolution 4032 x 3024 Photo Format .JPEG Type of Memory External MicroSD Card Memory Capacity Up to 128GB with special...
- Page 12 QUALITY CONTROL CHECKLIST ☐ DIY KIT ☐ Remote ☐ 8 GB MicroSD Card ☐ MicroSD Card Reader ☐ Wall Charger ☐ Manual ☐ Mini-USB Cable 20 Hour Battery QC Tech: ___________________________ Date: ______________________________ Version 1.3...
