Summary of Contents for Mini Gadgets BBSBottle

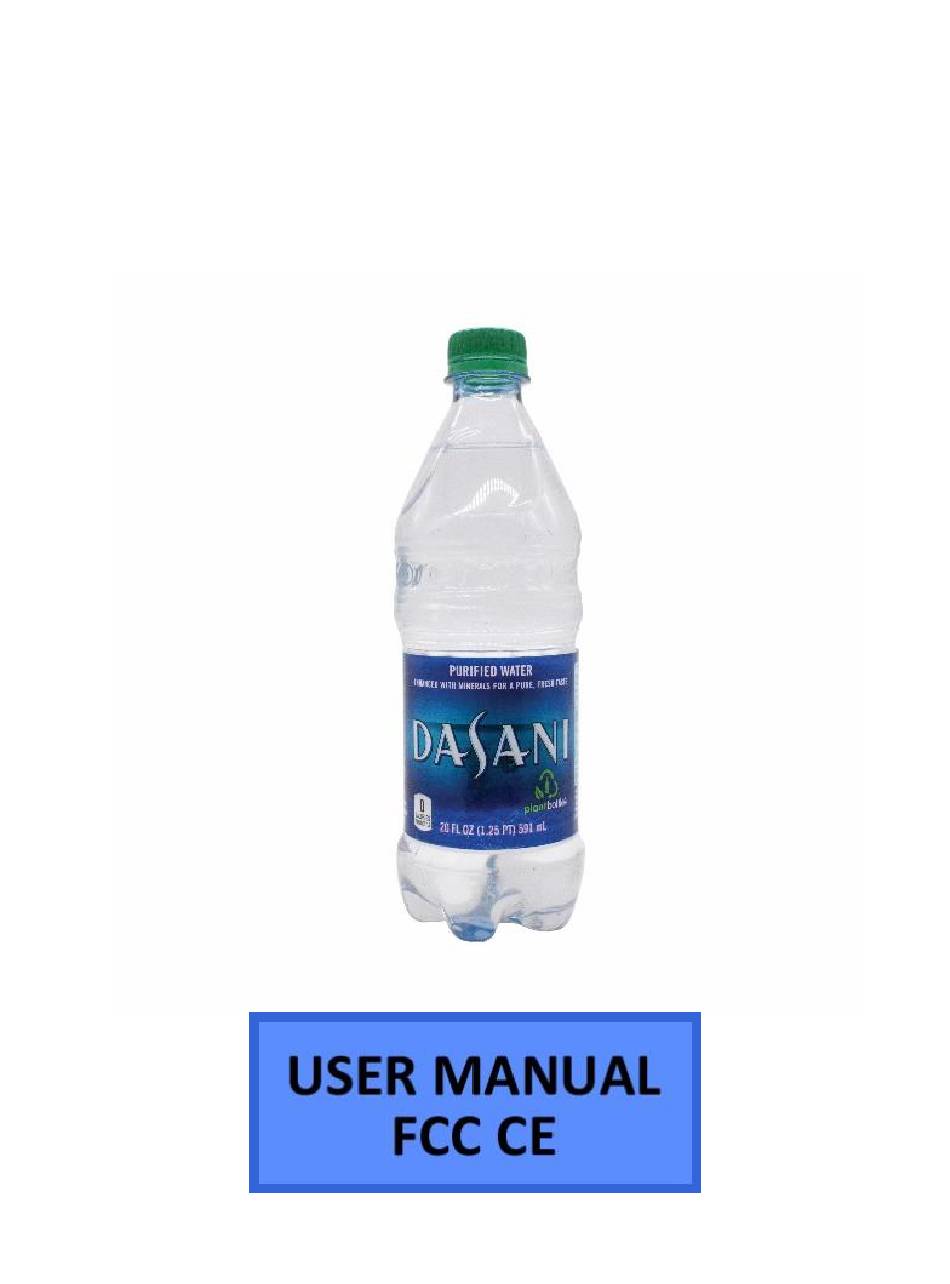

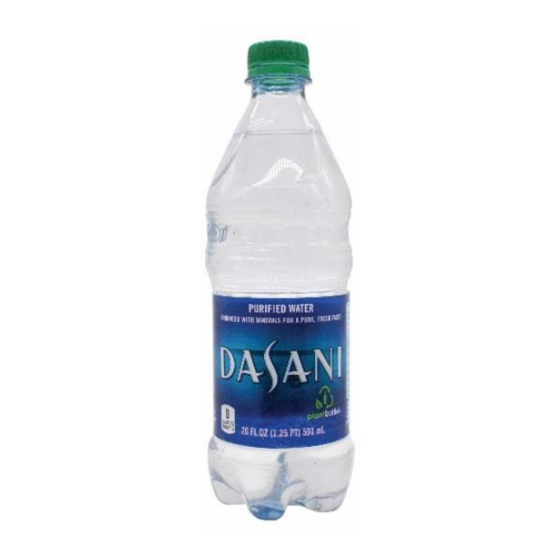

- Page 1 Bush Baby Stealth Bottle Hidden Camera Manual SKU: BBSBottle Version 2.1...
- Page 2 THANK YOU FOR PURCHASING THE BBSBOTTLECAM Please read this manual before operating the device and keep it handy. Separate areas contain water on the top and bottom to give the impression of a full bottle. We advise that you NOT use this like a normal bottle of water by repeatedly drinking from it, as this increases the chance of water leakage/damage.
- Page 3 GET FAMILIAR WITH YOUR BBSBOTTLECAM Version 2.1...
- Page 4 Version 2.1...
- Page 5 BEFORE YOU START To preserve battery power, your bottle will come with the toggle switch in the “OFF” position. Before attempting to use the device, be sure to turn the toggle switch “ON”. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the...
-
Page 6: Operating The Camera
OPERATING THE CAMERA IMPORTANT NOTICE: Allow the device to charge 6 – 8 hours before using. REMOVING AND CHARGING THE BATTERY 1. Unscrew the bottle, and locate the USB port on the device. 2. Connect the mini usb 8 pin charging cable into the device. - Page 7 of the water bottle. The device will also vibrate once while turning on. The device is automatically in Standby mode. HOW TO RECORD CONTINUOUS VIDEO (720P) 1. When the camera is in Standby Mode, press the “B” button once quickly (see page 5).
- Page 8 3. To save video and return to standby mode, quickly press the C button. The device will vibrate once and the unit’s LED light will come back on for standby mode. HOW TO RECORD MOTION DETECTION 1. In Standby mode, press the “D” button one time (see page 5).
- Page 9 HOW TO TAKE PICTURES 1. When the camera is in Standby Mode, press the “C” button (see page 5). The LED will flash once, the unit will vibrate, then take one picture. It will return to standby mode once the photo is taken. MICROSD CARD SLOT To access the MicroSD Card Slot, you must unscrew the bottle right above the label (see page...
- Page 10 3. To remove the SD card, use the thumb of your nail or tweezers. MicroSD cards 64GB and above will require special formatting to work. The device will not function with these cards if they are not properly formatted beforehand. Visit www.mgidownloads.com/Software and download the “guiformat.zip”...
- Page 11 See page 4 to locate the MicroSD card slot on your device. 2. Locate “Removable Disk” inside the (My) Computer folder. • AutoPlay Removable Disk > Open folder to view files Or… Version 2.1...
- Page 12 Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the DCIM folder. 5. Open the folder featuring a sequence of numbers. 6. Double click the file you want to view. • VLC Player is recommended for watching videos.
- Page 13 to play back the videos. It can be downloaded for free from www.videolan.org COPYING AND DELETING YOUR FILES The video files created are just like any other file on your computer, and can be managed in the exact same manner. •...
- Page 14 not done, the SD card will fill with hidden files and the Bottle will no longer record new files. SETTING THE TIME AND DATE ON THE VIDEO FILES You will need to remove the MicroSD card from your device and insert it into your computer via the SD card reader.
- Page 15 5. Open the Removable Disk drive. 6. Right click with your mouse and paste the downloaded time file. Alternatively, if you cannot get the above method to work, do the following: 7. Right click anywhere in the blank white space. 8.
- Page 16 Before Step 8 After Step 8 11. Open the text document. 12. Enter the date/time in the following format: a. Example: 2016/08/08 15:00:00 13. Save the text document. Version 2.1...
-
Page 17: Troubleshooting
14. Unplug the MicroSD card from your computer and reinsert it into your device. Power on the device and begin a test recording to confirm date/time setting succeeded. TROUBLESHOOTING THE DEVICE WON’T TURN ON • Charge the device for at least 6-8 hours before the first use. -
Page 18: Other Problems
THE INDICATOR LIGHT IS ON, BUT THE CAMERA WILL NOT RECORD VIDEO OR TAKE PHOTOS • You may have a 64GB+ card and need to format it properly. Visit www.mgidownloads.com/Software and download the “guiformat.zip” file. Extract the files and follow the instructions in the “64GB SD Card Formatting.pdf”... - Page 19 SPECIFICATIONS Video 1080P Resolution 720P Video Format .AVI Frames per Up to 30 FPS Second Vision Angle 75° Motion 6 meters for straight- Detection line distance Photo 4032 x 3024 Resolution Photo Format .JPG Type of Memory External MicroSD Memory Up to 128GB Capacity Recording...
- Page 20 QUALITY CONTROL CHECKLIST ☐ BBS Remote ☐ Wall AC Adapter ☐ Mini USB 8 Pin Cable ☐ MicroSD Card ____GB ☐ MicroSD Card Reader ☐ User Manual ☐ BBSBottleCam QC Tech: _________________________________ Date: ____________________________________ Warranty number : ____________________________ Leave Us A Review! Version 2.1...
