INSTRUCTION MANUAL
ANALOG I/O MODULE
1. BEFORE USE .... .......................................................................................... 2
2. GENERAL DESCRIPTION ........................................................................... 2
3. POINTS OF CAUTION .................................................................................. 3
4. HARDWARE SPECIFICATIONS .................................................................. 4
4.1. 60C-x1 (No. of channels codes 04, 08, or 16 in x) ........................................................................4
4.2. 60C-x2 (No. of channels codes 04, 08, or 16 in x) ........................................................................4
5. COMPONENT IDENTIFICATIONS & HARDWARE ADJUSTMENTS .......... 5
6. INSTALLATION ............................................................................................ 5
7. TERMINAL CONNECTIONS ........................................................................ 6
8. CONNECTING DATA LINK WIRES .............................................................. 7
8.1. TWISTED-PAIR CABLE ................................................................................................................7
8.2. POINTS OF CAUTION IN HANDLING WIRES .............................................................................7
8.3. WIRING DIAGRAM .......................................................................................................................7
9. WIRING & CONNECTIONS.......................................................................... 8
9.1. POINTS OF CAUTION IN CONNECTING WIRES ........................................................................8
9.2. CONNECTOR PIN ASSIGNMENTS .............................................................................................8
9.3. CABLE (MODEL: MCN34) PIN ASSIGNMENTS ..........................................................................9
10. I/O SIGNALS ...............................................................................................10
10.1. REMOTE I/O ...............................................................................................................................10
10.2. ASSIGNING REMOTE REGISTERS ..........................................................................................10
10.3. A/D CONVERSION ..................................................................................................................... 11
11. PARAMETERS SETTING BY PLC PROGRAM ..........................................12
11.1. GENERAL DESCRIPTION .........................................................................................................12
12. TROUBLESHOOTING .................................................................................13
12.1. L ERR. INDICATOR BLINKING ...................................................................................................13
12.2. L ERR. INDICATOR ON ..............................................................................................................13
12.3. L RUN INDICATOR OFF .............................................................................................................13
12.4. UNABLE TO READ/WRITE DIGITAL VALUES? .........................................................................13
13. LIGHTNING SURGE PROTECTION ...........................................................13
(CC-Link)
Cont en t s
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
60C
MODEL
EM-6602 Rev.8 P. 1 / 13
Advertisement
Table of Contents
Related Manuals for M-system 60C
Summary of Contents for M-system 60C
-
Page 1: Table Of Contents
3. POINTS OF CAUTION .................. 3 4. HARDWARE SPECIFICATIONS ..............4 4.1. 60C-x1 (No. of channels codes 04, 08, or 16 in x) ................4 4.2. 60C-x2 (No. of channels codes 04, 08, or 16 in x) ................4 5. COMPONENT IDENTIFICATIONS & HARDWARE ADJUSTMENTS ..5 6. -
Page 2: Before Use
/S01: Stainless steel Various inputs and outputs are available by employing 10-RACK series, 18-RACK series or other signal conditioners. The 60C input module converts analog inputs (0 – 100%) proportionally into 16-bit signed binary signals. The one for output converts 16-bit signed binary signals proportionally into analog outputs (0 –... -
Page 3: Points Of Caution
• The unit is designed to function as soon as power is supplied, however, a warm up for 10 minutes is required for satisfying complete performance described in the data sheet. EM-6602 Rev.8 P. 3 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 4: Hardware Specifications
4. HARDWARE SPECIFICATIONS 4.1. 60C-x1 (No. of channels codes 04, 08, or 16 in x) ITEM SPECIFICATIONS Analog input 1 – 5 V DC (input resistance ≥ 1 MΩ) Protocol CC-Link, Ver.1.10 Digital output 16-bit signed binary (14 bits for data) I/O characteristics 0 –... -

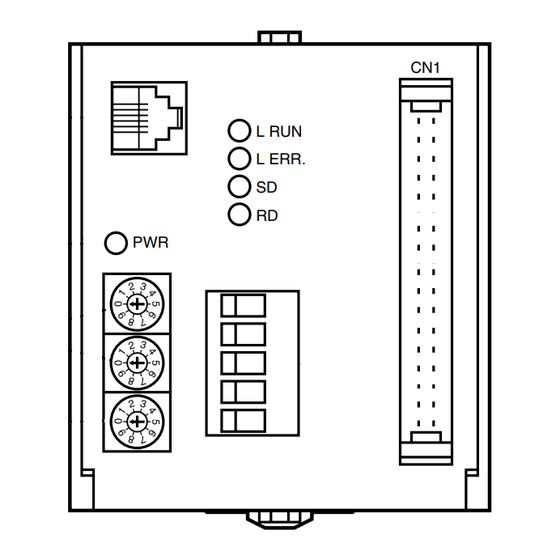

Page 5: Component Identifications & Hardware Adjustments
Refer to “EXTERNAL DIMENSIONS.” Spring Loaded DIN Rail Adaptor Shape and size of the base socket are slightly different with various socket types. EM-6602 Rev.8 P. 5 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 6: Terminal Connections
MODULAR JACK Calibration U(+) POWER V(–) * Attach the terminating resistor when the module is at the termination of a transmission line. EM-6602 Rev.8 P. 6 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 7: Connecting Data Link Wires
The following explanations apply to the wires connecting the 60C to the Master Unit. 8.1. TWISTED-PAIR CABLE The following types of wire are recommended for connecting the 60C to the Master Unit. KURAMO ELECTRIC FANC-SB 0.5 mm × 3 or equivalent... -
Page 8: Wiring & Connections
4) Ground the shield of communication wires at one point. Consideration about locations of the ground may be necessary according to external noise interference. 9.2. CONNECTOR PIN ASSIGNMENTS ■ INPUT CONNECTOR FOR 60C-x1 ■ OUTPUT CONNECTOR FOR 60C-x2 PIN NO. -
Page 9: Cable (Model: Mcn34) Pin Assignments
CONNECTOR PIN ASSIGNMENT WIRING DIAGRAM Side B Side A Side B Side A Pins No. A18 – B20 on Side A are not connected. EM-6602 Rev.8 P. 9 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp... -
Page 10: I/O Signals
10.1. REMOTE I/O The 60C occupies from 1 up to 4 nodes according to the number of I/O channels. Regardless of the number of nodes, 32 bits are assigned to each of input and output for sending to/receiving from the Master Unit. One (1) bit among RXxB* is used as remote device (60C) READY signal, turned ON when the 60C is in normal operation. -
Page 11: A/D Conversion
Hexadecimal (Decimal) 3) OUTPUT IN AN ABNORMALITY When an abnormality such like CPU error, STOP, time-out occurs at the PLC, the output signal of the 60C is maintained as HOLD (no clearing output signal, keeping the value just before the abnormality). -
Page 12: Parameters Setting By Plc Program
Station information (set for the number of connected modules.) H0002 H0020 *1. [Example] 11xx for model 60C-04 12xx for model 60C-08 14xx for model 60C-16 xx = 60C Station No. EM-6602 Rev.8 P. 12 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN... -
Page 13: Troubleshooting
Try to read out digital value. grounding. 13. LIGHTNING SURGE PROTECTION M-System offers a series of lightning surge protectors for protection against induced lightning surges. Please contact M- System to choose appropriate models. EM-6602 Rev.8 P. 13 / 13 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
