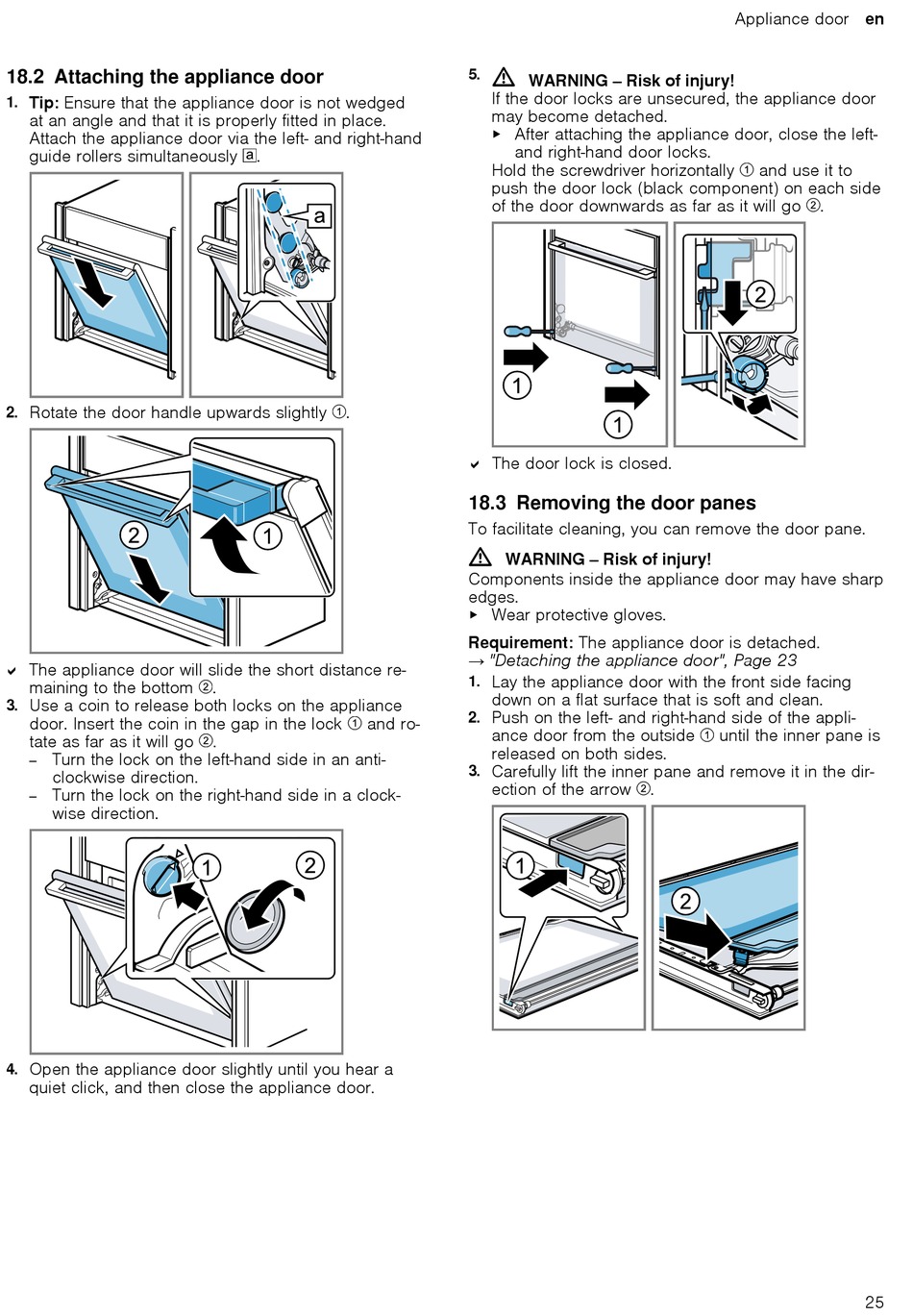

18.2 Attaching the appliance door
Tip: Ensure that the appliance door is not wedged
1.
at an angle and that it is properly fitted in place.
Attach the appliance door via the left- and right-hand
guide rollers simultaneously
Rotate the door handle upwards slightly
2.
a The appliance door will slide the short distance re-
maining to the bottom
Use a coin to release both locks on the appliance
3.
door. Insert the coin in the gap in the lock
tate as far as it will go
Turn the lock on the left-hand side in an anti-
clockwise direction.
Turn the lock on the right-hand side in a clock-
wise direction.
Open the appliance door slightly until you hear a
4.
quiet click, and then close the appliance door.
⁠ .
⁠ .
⁠ .
and ro-
⁠ .
5.
WARNING ‒ Risk of injury!
If the door locks are unsecured, the appliance door
may become detached.
After attaching the appliance door, close the left-
and right-hand door locks.
Hold the screwdriver horizontally
push the door lock (black component) on each side
of the door downwards as far as it will go
a The door lock is closed.
18.3 Removing the door panes
To facilitate cleaning, you can remove the door pane.
WARNING ‒ Risk of injury!
Components inside the appliance door may have sharp
edges.
Wear protective gloves.
Requirement: The appliance door is detached.
→ "Detaching the appliance door", Page 23
Lay the appliance door with the front side facing
1.
down on a flat surface that is soft and clean.
Push on the left- and right-hand side of the appli-
2.
ance door from the outside
released on both sides.
Carefully lift the inner pane and remove it in the dir-
3.
ection of the arrow
Appliance door en
and use it to
⁠ .
until the inner pane is
⁠ .
25
