KL-3W
Media Station
Quick Installation Guide
ENGLISH
AREC Inc.© All Rights Reserved 2017. l www.arec.com
All information contained in this document is Proprietary

Advertisement

loading
Need help?

Need help?

Do you have a question about the KL-3W and is the answer not in the manual?

Questions and answers

Summary of Contents for Arec KL-3W

  • Page 1 KL-3W Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2017. l www.arec.com All information contained in this document is Proprietary...
  • Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 3 KL-3W Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
  • Page 4: Specifications

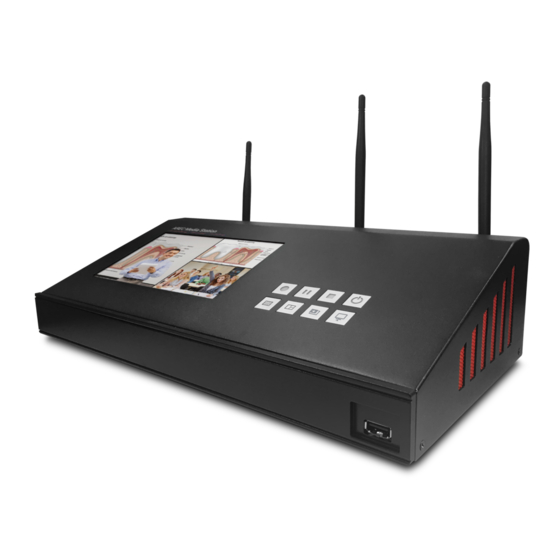

    KL-3W Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC KL-3W Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution.
  • Page 5: Product Appearance

    KL-3W Quick Installation Guide Product Appearance Top View Back View 11 12 13 14 Name Brief introduction 7” LCD Display Preview mixed recording Background function key Control the Background function Layout function keys Control the Layout function Record function keys...
  • Page 6 KL-3W Quick Installation Guide Connection AREC Wireless AREC Wireless Full HD Camera Full HD Camera AREC Wireless Setting PC Microphone projector Video output VGA / HDMI AREC Speaker Network Camera Audio output Power RS-232 Audio input Video input VGA / HDMI amplifier...
  • Page 7 KL-3W Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator with username admin and password admin, then entering System Administration webpages.
  • Page 8 KL-3W Quick Installation Guide Setup Step 1: Set up video input name, signal type,video source, PTZ control in [ Video inputs ] of Media I/O ]. The Capture source can be the video port [ ] and [ ] with option VGA or HDMI.
  • Page 9 KL-3W Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System Getting start a recording Start a recording from the front panel Select the layout/ background before getting start.
  • Page 10 KL-3W Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [System Administration] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
  • Page 11 KL-3W Quick Installation Guide Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use. 2.There are no switches or adjustment buttons required for operation inside this product, so...
  • Page 12 AREC Inc.© All Rights Reserved 2017. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2017.5.1 Version : 2.2...
